6.10 DO8R, -DO16R relay outputs
8/16 digital outputs
Parameter
Value (typ./max.)
Relays
8 DO8R
16 DO16R
Technical data DO8R, -DO16R.

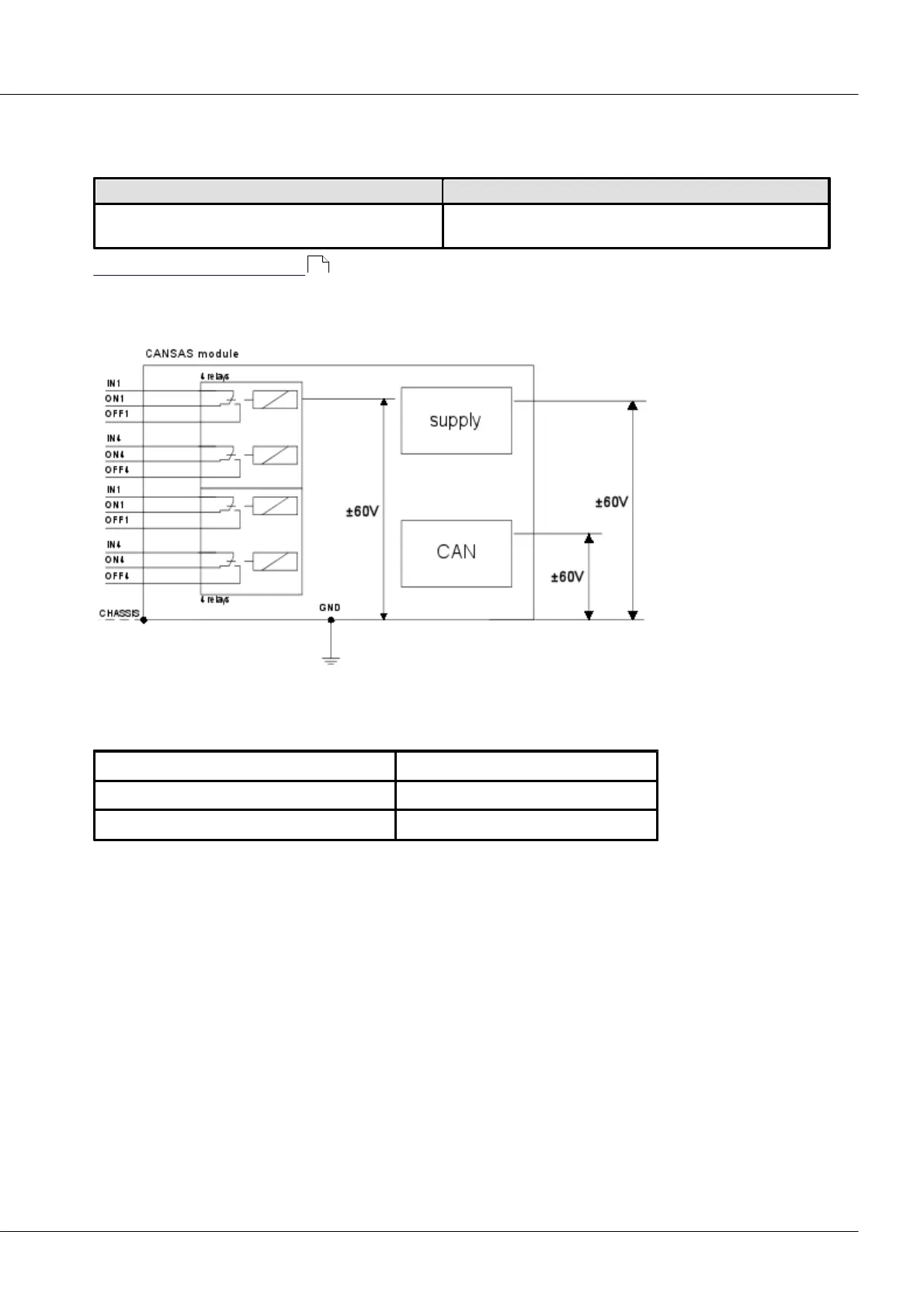

6.10.1 block diagram DO8R, DO16R
Each terminal plug has four relays each having an opening contact and a closing contact. The input
contacts are denoted by IN1...IN4, the openers by ON1...ON4 and the closers by OFF1...OFF4. The
terminal plug CON1 is access for Bits 1...4 and CON2 for Bits 5...8.
Target value
Relay position
0 (low)
IN and ON connected
1 (high)
IN and ON not connected
The relays are single pole double throw switches.
