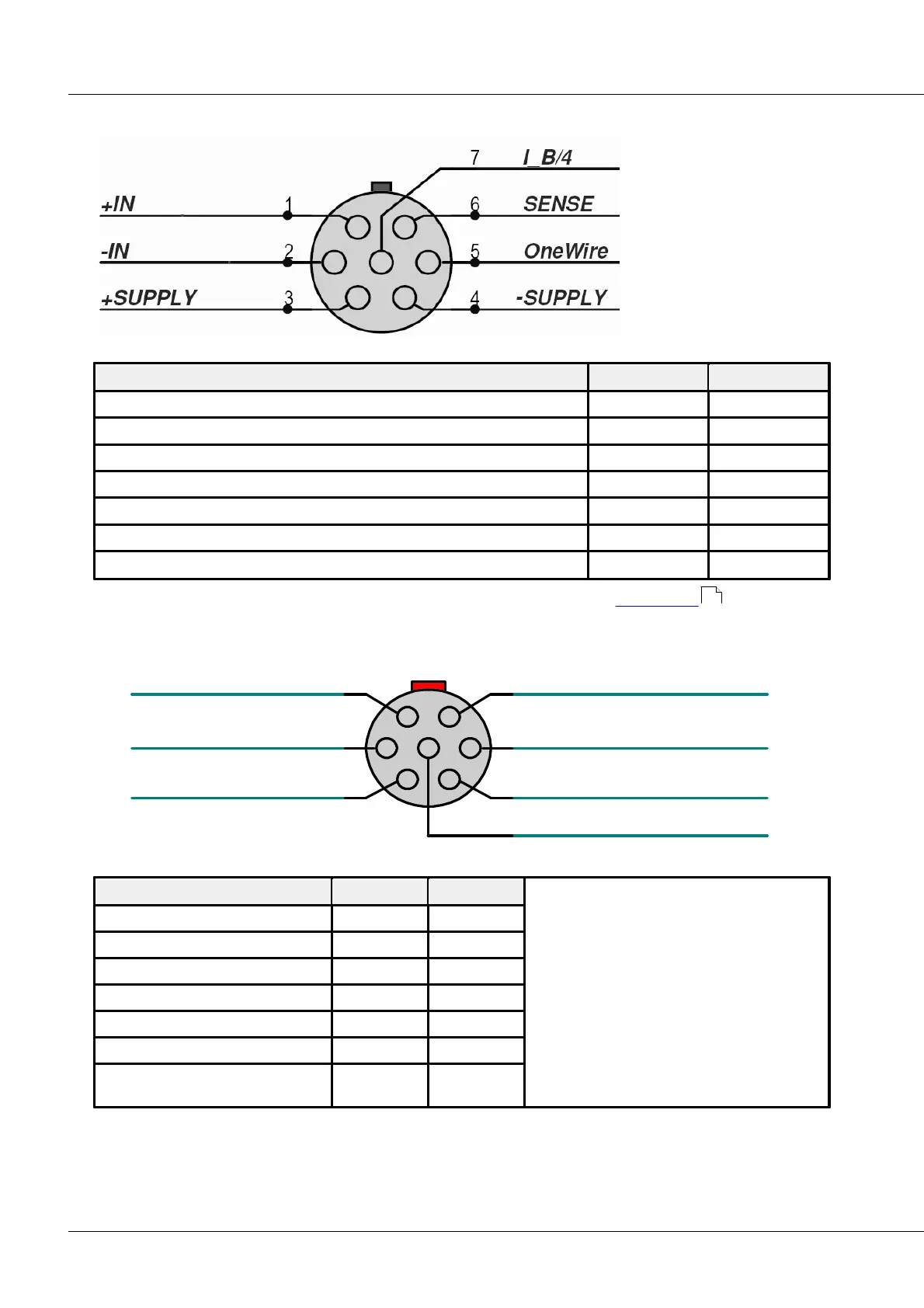

6.20.13.2 Pin configuration of round plugs LEMOSA
(view from outside to the device)
Signal
PIN
circuit
pos. measurement input
1
A
neg. measurement input
2
B
positive sensor supply
3
C
negative sensor supply (device ground)
4
D
sensor recognition
5
E
sense-lead, RTD current source
6
F
quarter bridge completion, Sense-lead for RTD 3-wire connector
7
G
This pin configuration applies also to CANSAS-SL-UNI8-L, see modules with LEMO plugs .
6.20.13.3 Pin configuration of round plugs ZF LEMO
po s. neg . sense-lead
2 5
7
LEMO-Buchse: EGG.2B.307.CLN
neg. m easu remen t inp ut
neg. sen so r su p p ly
3 4
po s. sen sor su p p ly
po s. measu remen t in p u t
neg. sen se-lead
1 6
sh ield to dig ital GN D
(view from outside to the device.)
Signal
PIN
Circuit
Note!
In this model, the contacts labeled G and E in
the circuit diagram are omitted. Thus, the
following functions are no longer available:
1. sensor recognition
2. ¼ bridge completion and measurement
3. thermocouples with Pt100 in connector
4. 3-wire Pt100 measurement
5. single ended current measurement
6. sensors with current signal
positive sensor supply
1
C
neg. measurement input
2
B
negative sensor supply (GND)
3
D
pos. measurement input
4
A
negative sense-lead
5
F
shield to digital GND
6
D
positive sense-lead
7
---
