6.12.5 Sensor supply at CAN/L-INC4-SUPPLY
The module imc CANSAS-L-INC4-V-SUPPLY is equipped with a sensor supply module .
The sensor supply with DSUB-15 is connected at PIN 15 = clamp 14 = -SUPPLY and
PIN 8 = clamp 17 = +SUPPLY.
The sensor supply is connected via the pins C (+SUPPLY) and D (-SUPPLY) at the ITT VEAM connector.

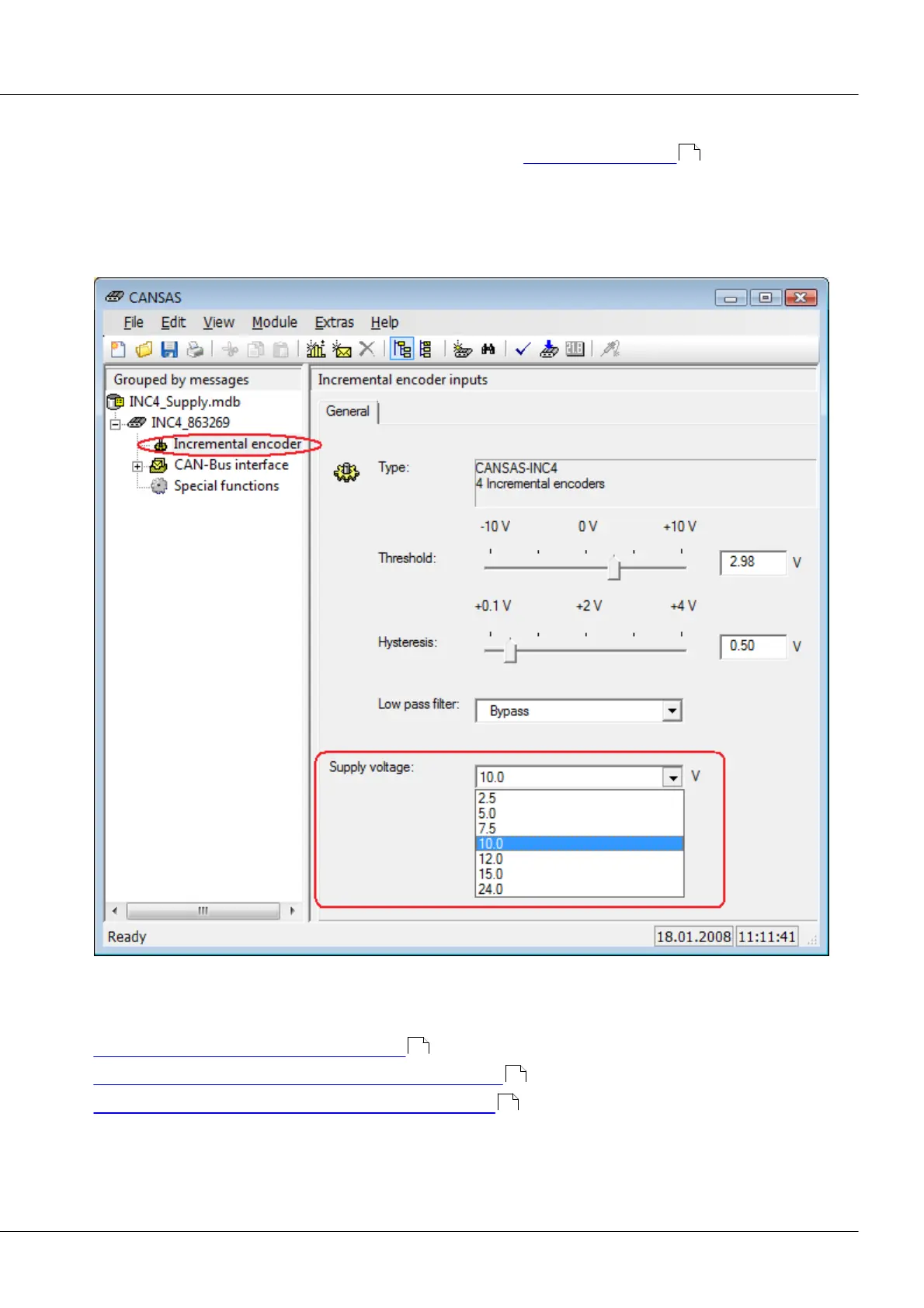

The supply voltage is set by the software:
Sensor supply settings for CANSAS-L-INC4-SUPPLY
6.12.6 Connector plugs
For the DSUB-15 pin configuration - see here
For the LEMO pin configuration (CAN/SL-INC4-L) - see here
For the DSUB-9 pin configuration (CAN/K-INC4) - see here .
