542 Pin configuration and power supply
imc CANSAS Users Manual - Doc. Version 1.9 - 05.12.2014© 2014 imc Meßsysteme GmbH

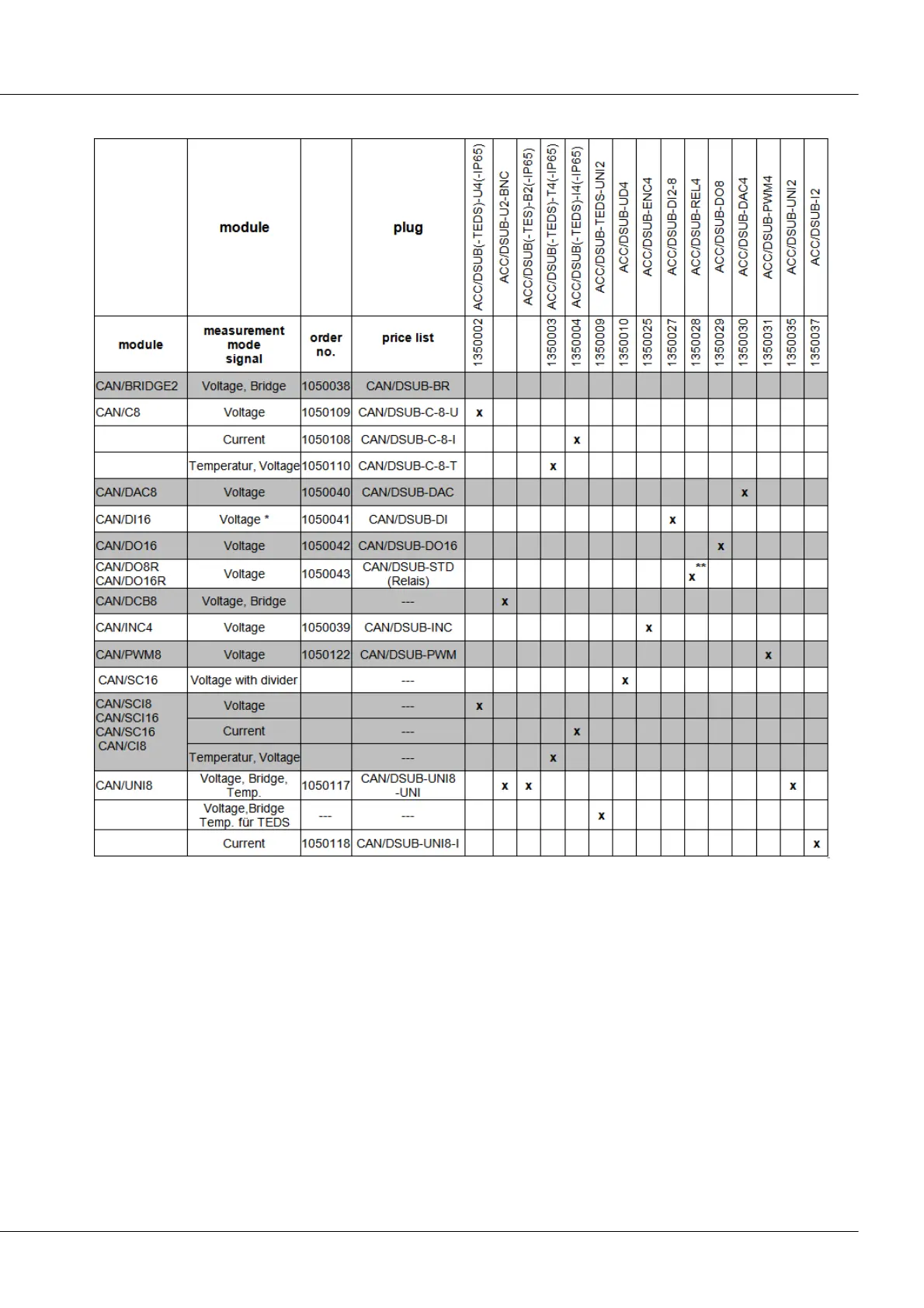

8.3.1.4 Connector plugs Cross-Reference
* 2-bit block isolated low impedance
** ON and OFF swapped, CAN/DSUB-STD(RELAIS) is the recommended and delivered plug
