IMC CANSAS - Acc;Dsubxx Plugs

538 Pin configuration and power supply
imc CANSAS Users Manual - Doc. Version 1.9 - 05.12.2014© 2014 imc Meßsysteme GmbH

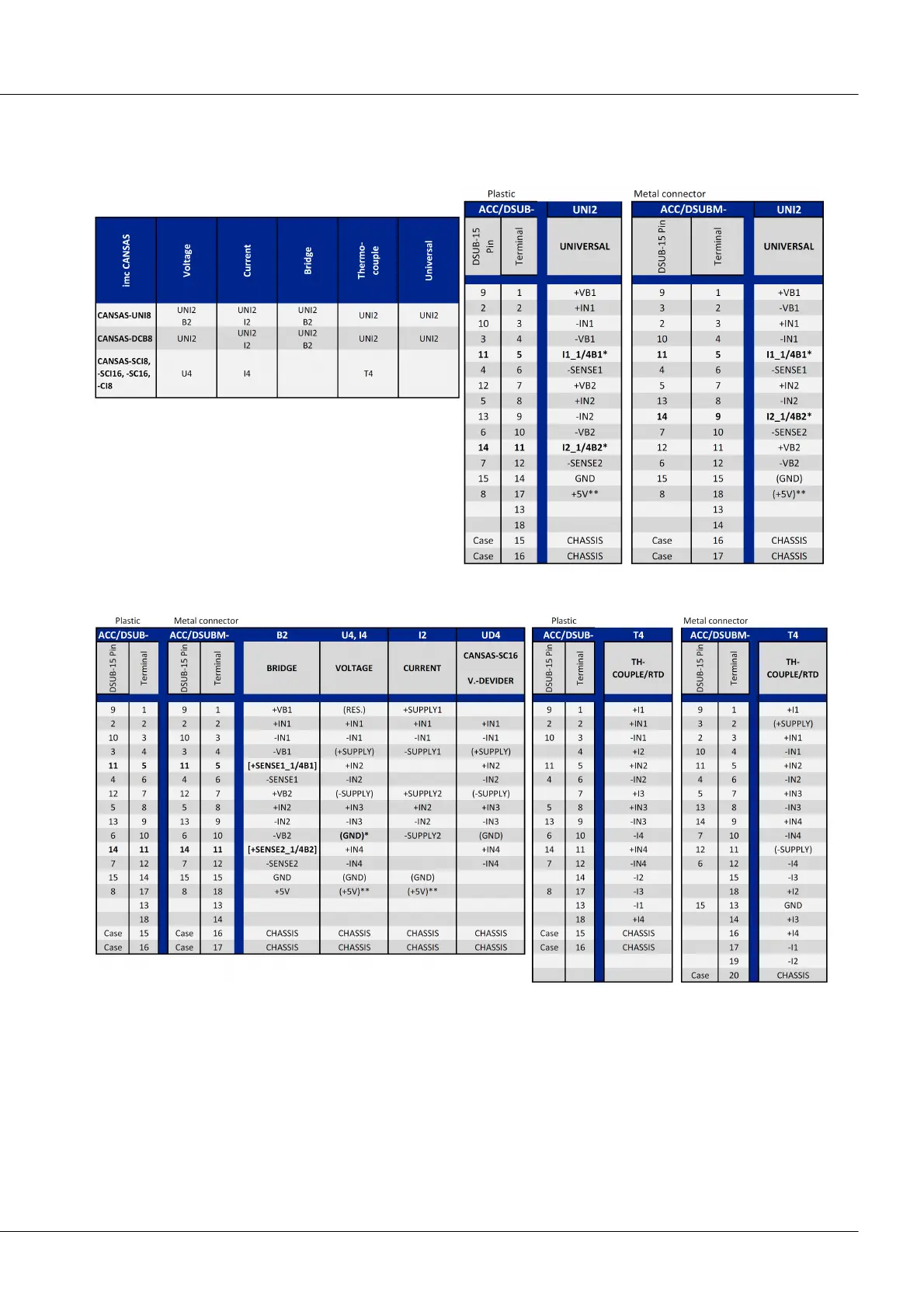

8.3.1.1 ACC/DSUBxx plugs
SCI8, SCI16, SC16, C8, UNI8, DCB8, BRIDGE2
Modules and measurement mode
* If SEN_SUPPLY with ±15V option, then this pin = -15V
[]: if SEN SUPPLY with ±15V option, then this pin = -15V
[]:1/4 Bridge with UNI8, DCB8
* if SEN SUPPLY with ±15V option, then this pin 6 = reference
** not C8
