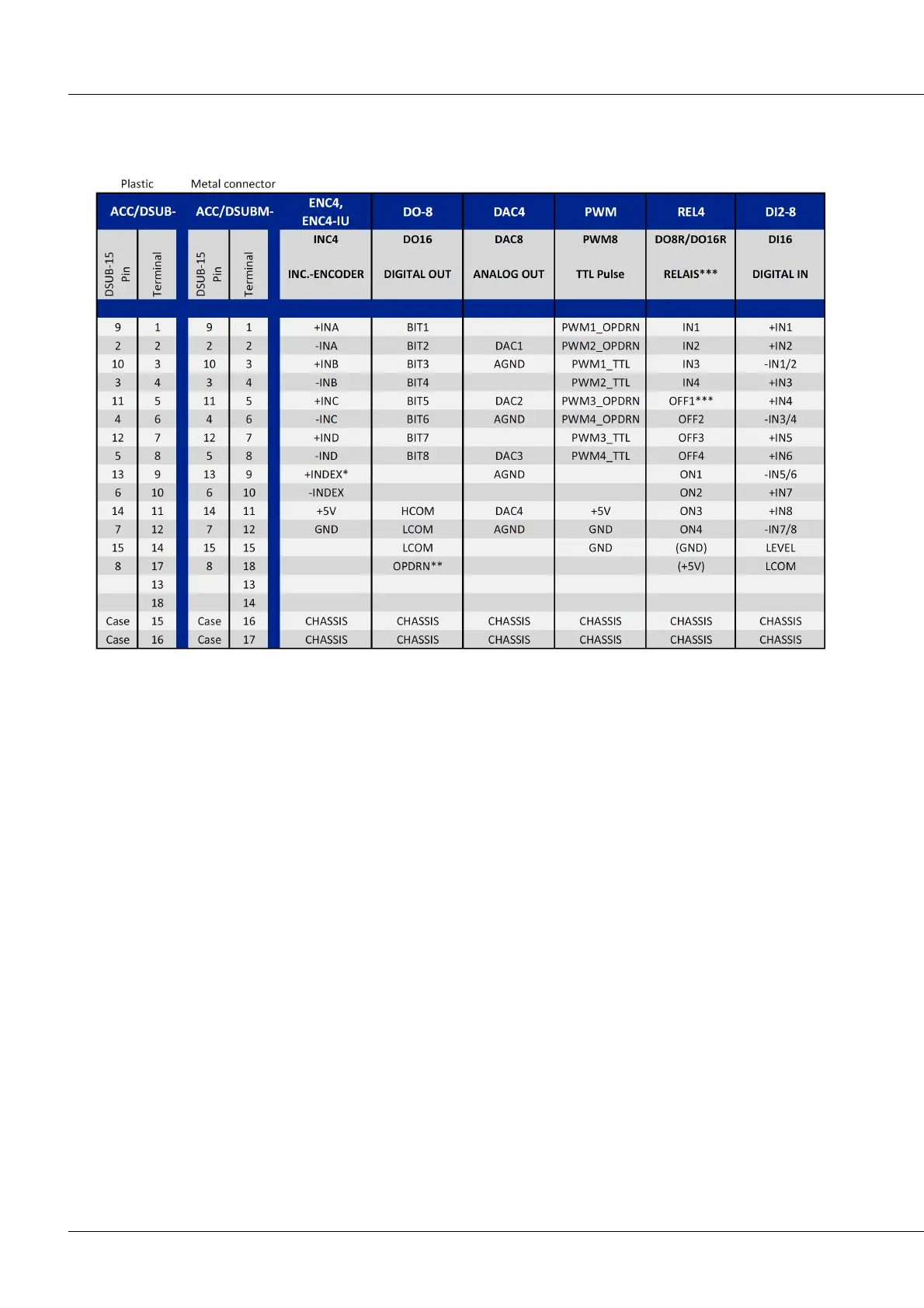

Signal connection 539
imc CANSAS Users Manual - Doc. Version 1.9 - 05.12.2014© 2014 imc Meßsysteme GmbH
ENC4, DI16, DO16, DO8R, DO16R, DAC8, PWM8
* Index at CON1 only;
** OPDRN is reserved and is not to be connected.
***ACC/DSUB-REL4 should only be used as replacement for CAN/DSUB-STD (RELAIS). Note that OFF and ON are swapped.
