6.15.2 Current measurement only channels IN1 .. IN4
Current: 10 mA, 20 mA

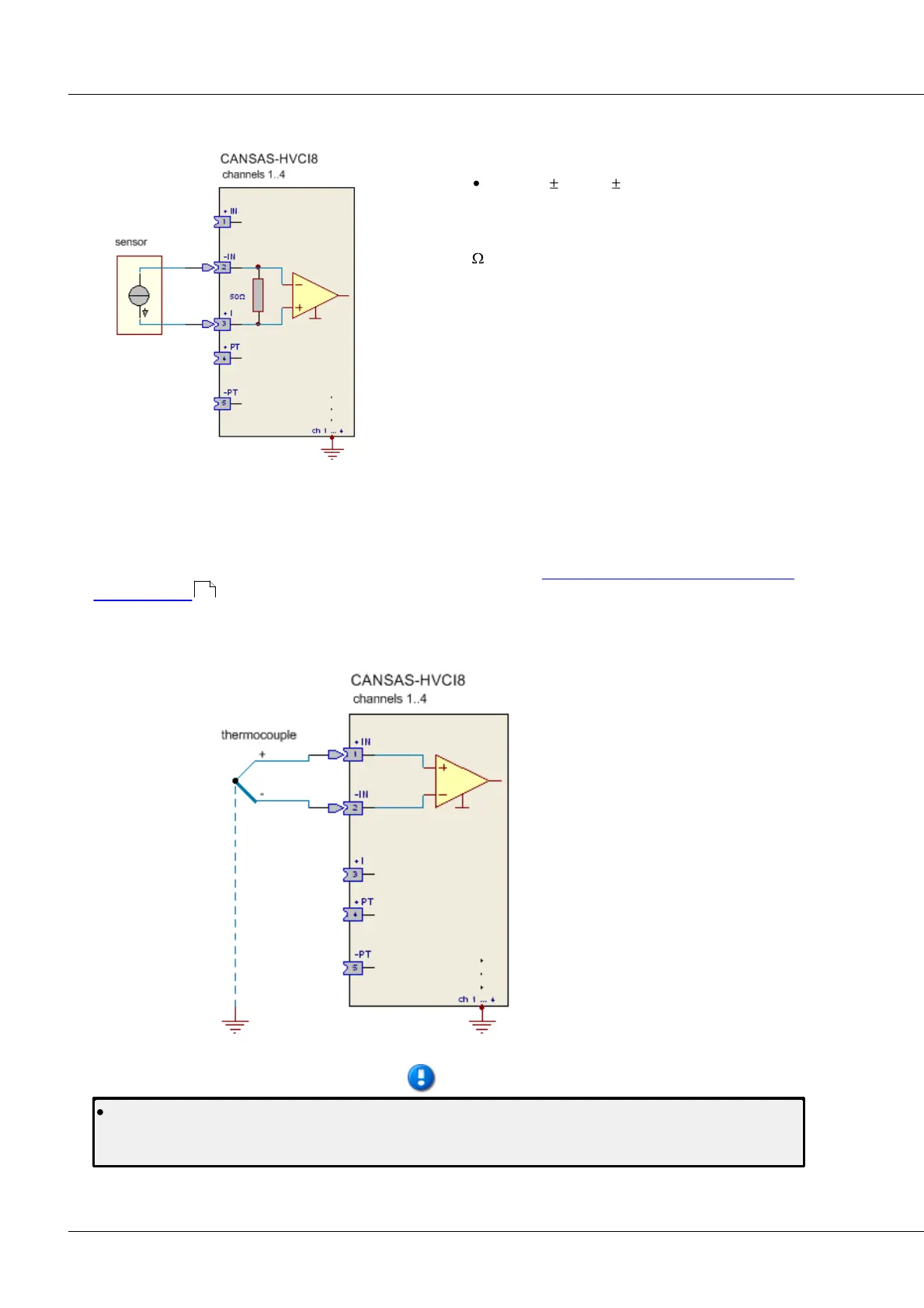

The current measurement is connected via an internal
50 shunt. Toward this end, the current signal is
connected at the pins +I and -IN.
6.15.3 Temperature Measurement only channels IN1 .. IN4
The input channels are designed for direct connection of thermocouples and PT100-sensors (RTD,
platinum-resistance thermometers according DIN and IEC 751). Detailed description of temperature
measurement .
6.15.4 Thermocouple measurement only channels IN1 .. IN4
Note
The channel terminals are at different distances from the cold junction. Internally, this is taken into
account by means of gradients. Note that the physical location is important. The precision stated in
the technical specs applies for installation location in a thermally stabilized environment.
