6.25 µ-CANSAS-T4
4-channel temperature measurement amplifier
Parameter
Value (typ. / max)
Remarks
Channels
4
4 thermocouple connectors (with selectable type)
Measurement mode
Thermocouple measurement
R, S, B, J, T, E, K, N

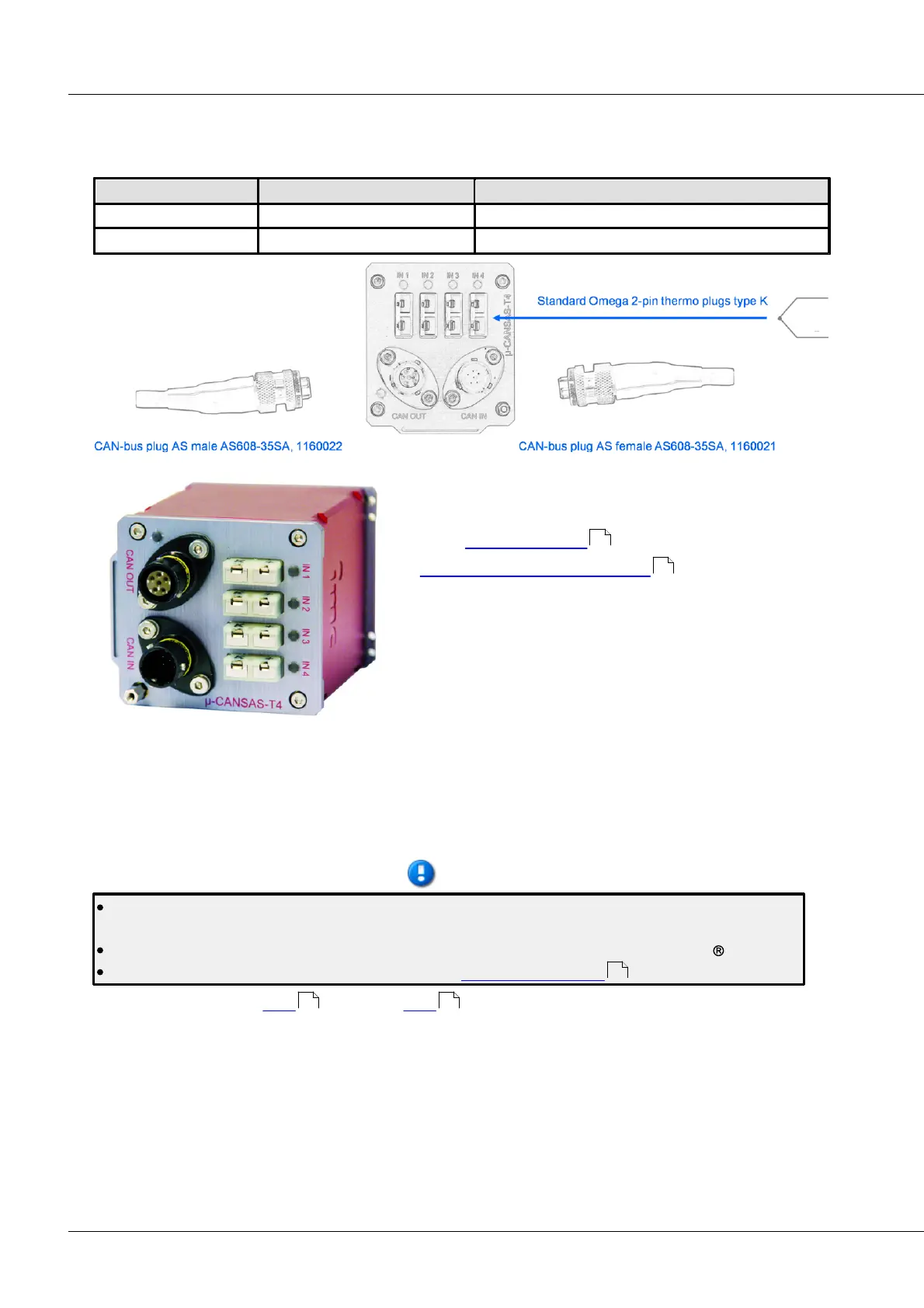

µ-CANSAS-T4
The imc µ-CANSAS-T4 comes with four integrated imc µ-
CANSAS-T1 channels.
For the configuration of the channels, see the description
of the imc µ-CANSAS-T1 .
Technical data imc µ-CANSAS-T4.
Make note of the channels’ message mapping. The channels can be sent together in one message in the
customary manner or divided among multiple messages as desired. With each imc µ-CANSAS channel
having a message length of 16 bits, all 4 channels can be sent by the HUB in one message. If a message
length higher than 16 Bit (24 or 32 Bit) is set, then the 4 channels need to be distributed over 2 messages.
Note
Synchronization is performed exclusively as Slave according to the CAN1-protocol and is provided
under the node Special functions.
Beside working with CAN-bus per default, the module is also configurable as CANopen module.
The functions of the LEDs are described in section imc CANSAS blinking codes.
CAN-Bus connector see here . Cables see here .
