2.6.11 Cabling of µ-CANSAS
In conjunction with a imc BUSDAQ unit able to supply the power for the connected imc µ-CANSAS
units, a variety of system configurations are possible. When selecting a configuration, be sure to also
select appropriate cable terminations.
2.6.11.1 Power from external power supply unit

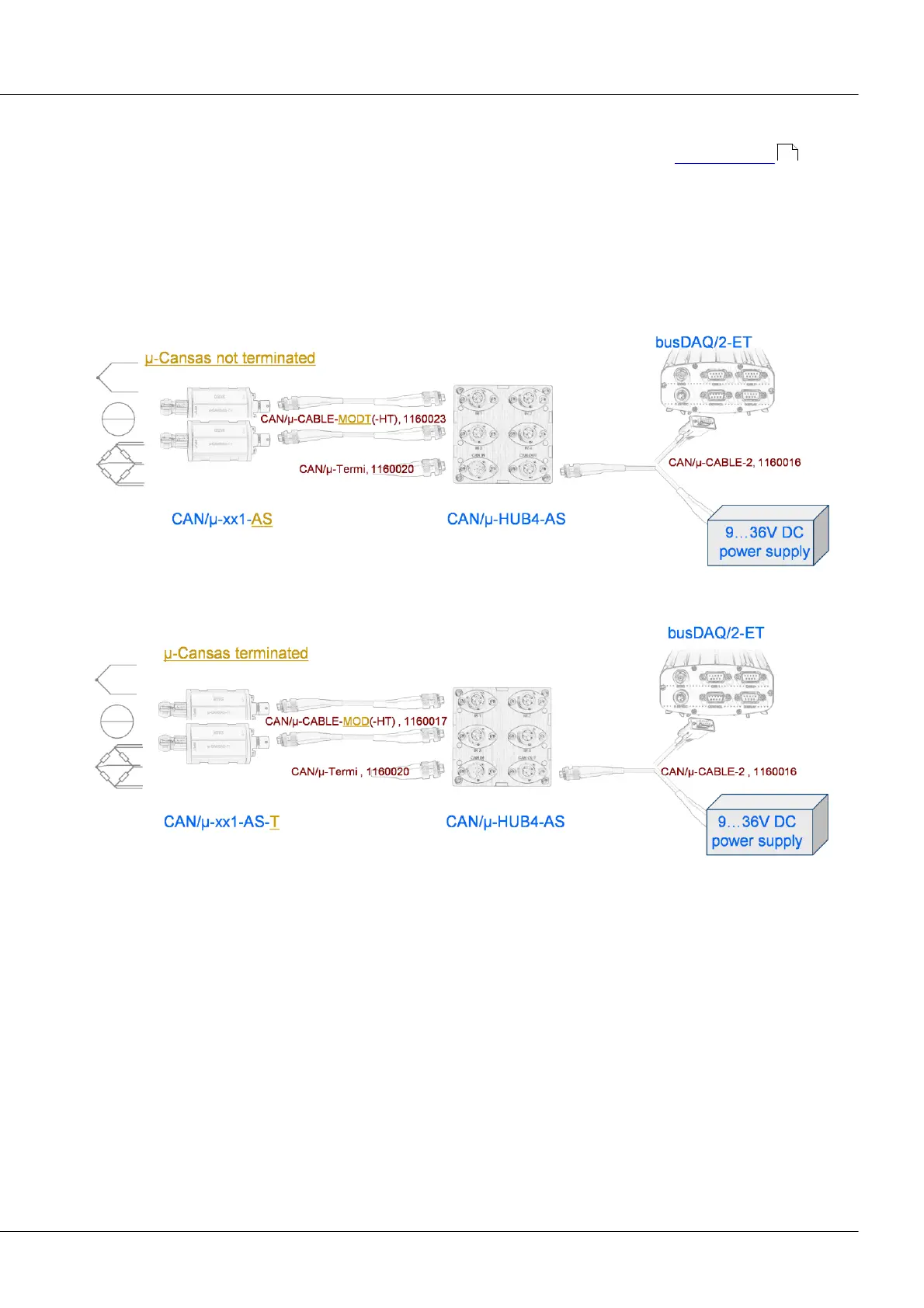

Configuration 1a with unterminated, single-channel imc CANSAS
Termination located inside of the cable
µ-CANSAS terminated inside of the connection cable, power supplied via external power unit
Configuration 1b with internally terminated, single-channel imc µ-CANSAS
µ-CANSAS terminated internally. Supply via external power supply unit
