CAN-Bus description 47
imc CANSAS Users Manual - Doc. Version 1.9 - 05.12.2014© 2014 imc Meßsysteme GmbH

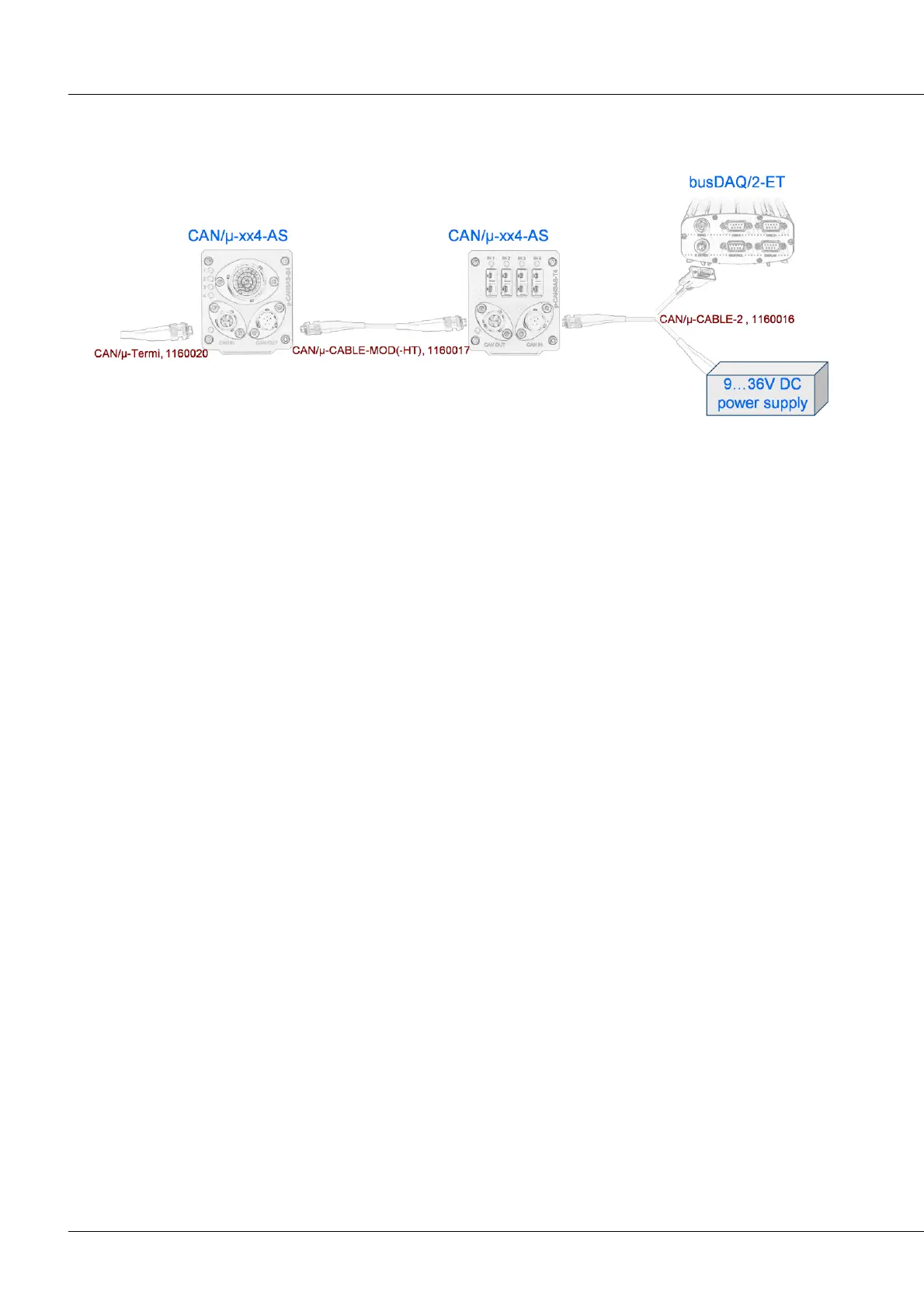

Configuration 2: two four-channel imc µ-CANSAS units connected to the imc BUSDAQ
Termination provided by Termi-connectors, and internally at the imc BUSDAQ
Termination at the last 4-channel µ-CANSAS unit. Power supply from the power supply unit
