48 Startup
imc CANSAS Users Manual - Doc. Version 1.9 - 05.12.2014© 2014 imc Meßsysteme GmbH

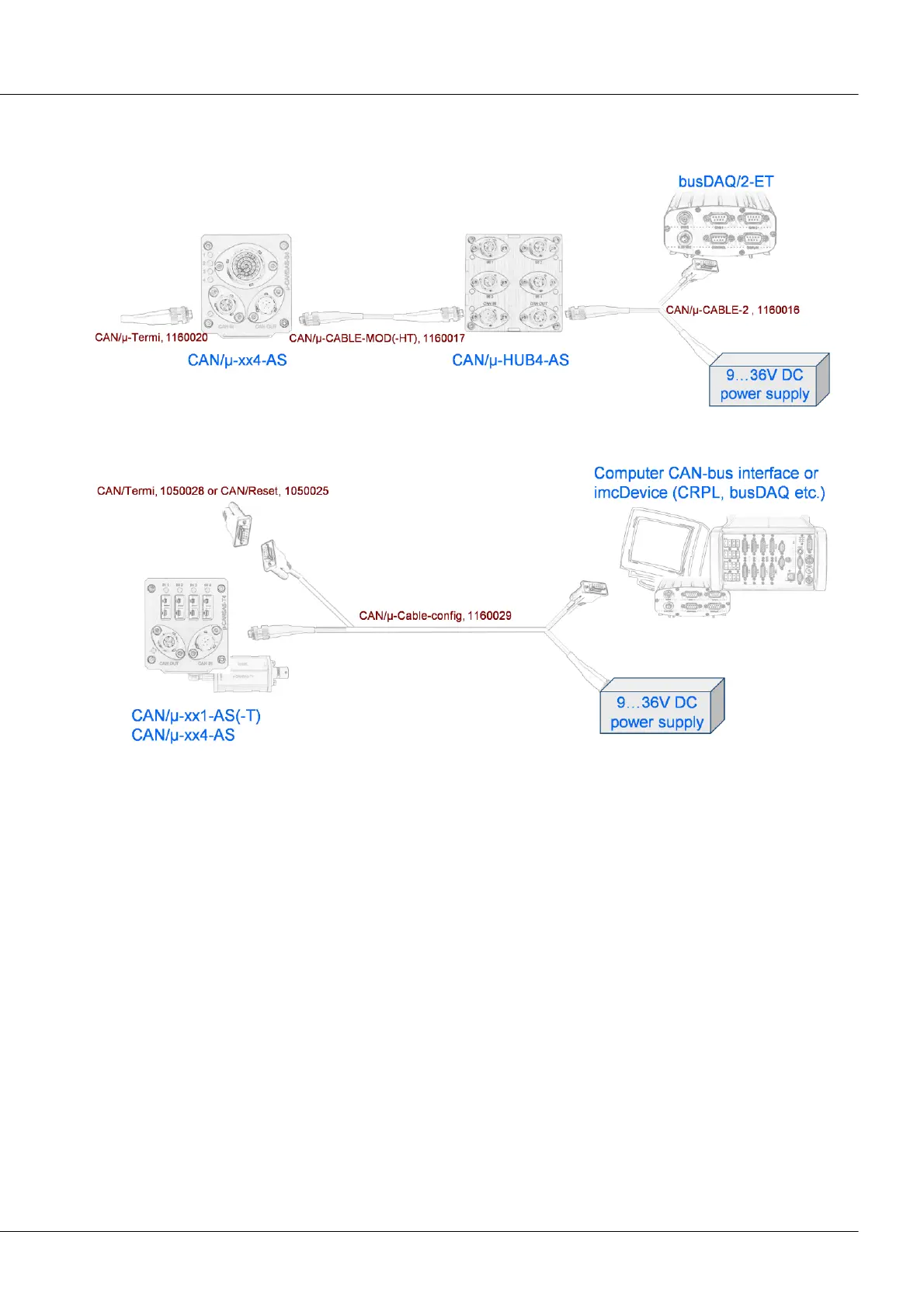

Configuration 3: 4-channel imc µ-CANSAS unit via HUB
Termination provided via Termi connector and internally at the imc BUSDAQ
Termination at the last 4-channel µ-CANSAS unit. Power supplied from the power supply unit
Configuration 4: Integrating a imc µ-CANSAS in a standard CAN-Bus system
Termination with Y-cable and µ-CANSAS. Supply via power supply unit
