552 Pin configuration and power supply
imc CANSAS Users Manual - Doc. Version 1.9 - 05.12.2014© 2014 imc Meßsysteme GmbH
8.3.6 CAN/SL modules with LEMO terminals
The imc CANSAS modules of the housing model SL which are equipped with LEMO connectors have
certain limitations regarding measurement possibilities. The exact limitations are stated in the general
technical specs of the respective module in the chapter General technical specs . With these modules,
a separate LEMO connector is available for each channel.

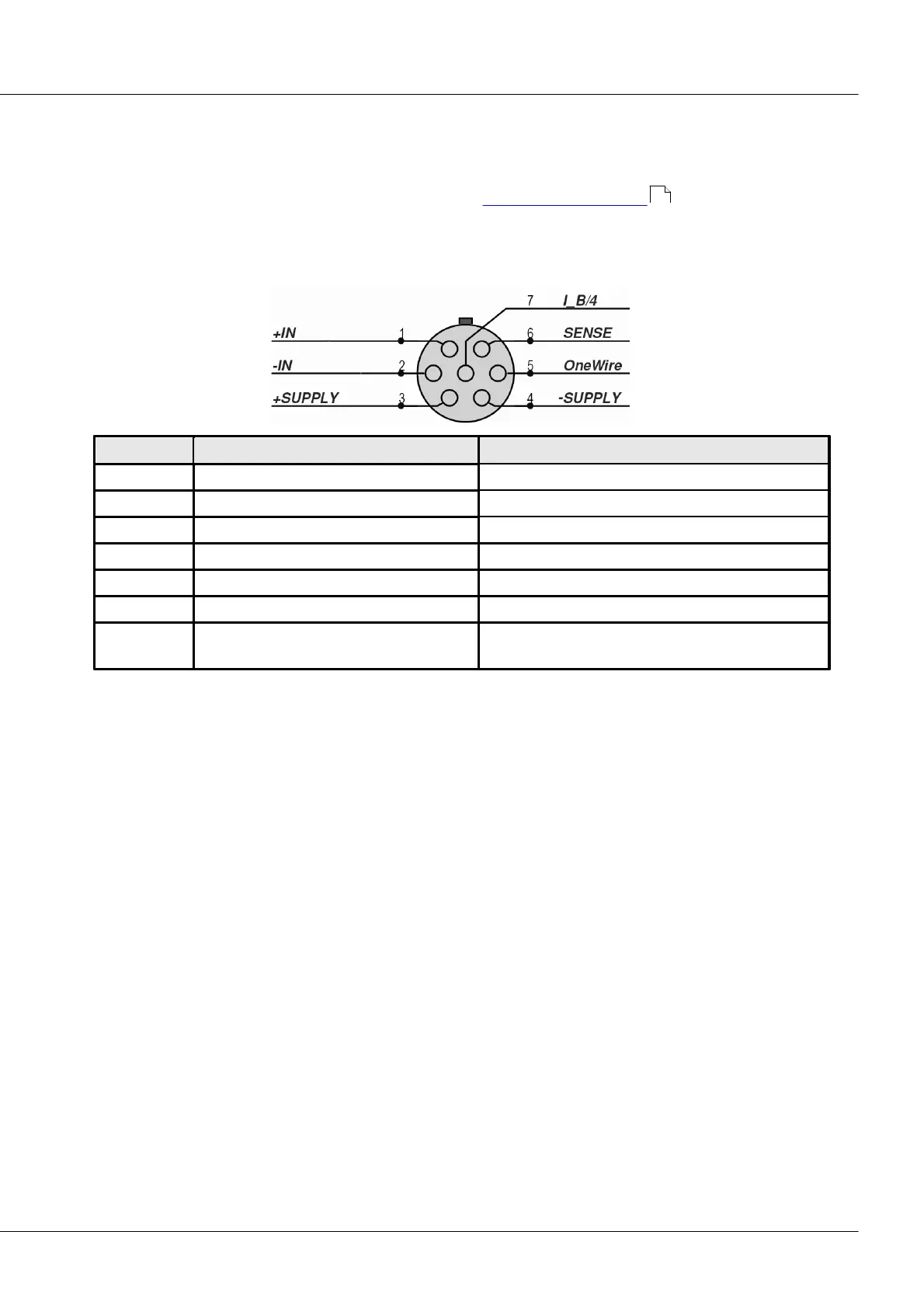

8.3.6.1 DCB8, UNI8 LEMO
LEMO PIN
-DCB8
-UNI8
1
+IN
+IN
2
-IN
-IN
3
+SUPPLY
+SUPPLY
4
-SUPPLY (GND)
-SUPPLY (GND)
5
TEDS (OneWire)
TEDS (OneWire)
6
SENSE
SENSE / RTD current source
7
quarter bridge completion
quarter bridge completion /
Sense for Pt100 3-wire configuration
457
