6.14.3.1 Thermocouple measurement

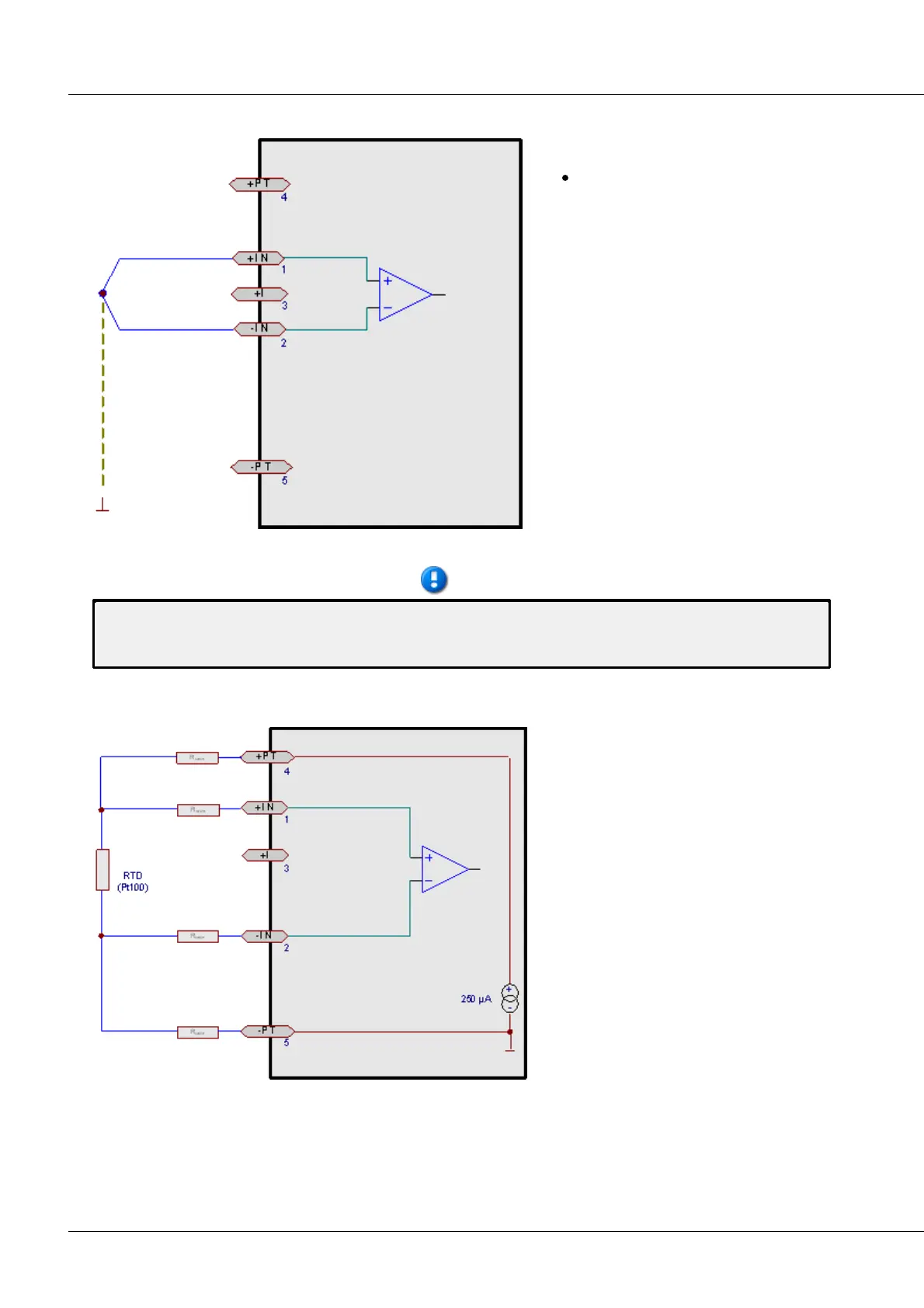

configuration for thermocouples

Temperature ranges:

-270°C to +1370°C

-50°C to +400°C

-50°C to +150°C

Thermocouples: type R, S, B, J, T, E, K, L,

N according IEC 584

Note

The channel terminals are at different distances from the cold junction. Internally, this is taken into

account by means of gradients. Note that the physical location is important. The precision stated in the

technical specs applies for installation location in a thermally stabilized environment.

6.14.3.2 Pt100 (RTD) - Measurement

configuration for Pt100 (RTD) sensors

Measurement range:

-200°C to +850°C

-50°C to +150°C
