6.23.3 Half bridge

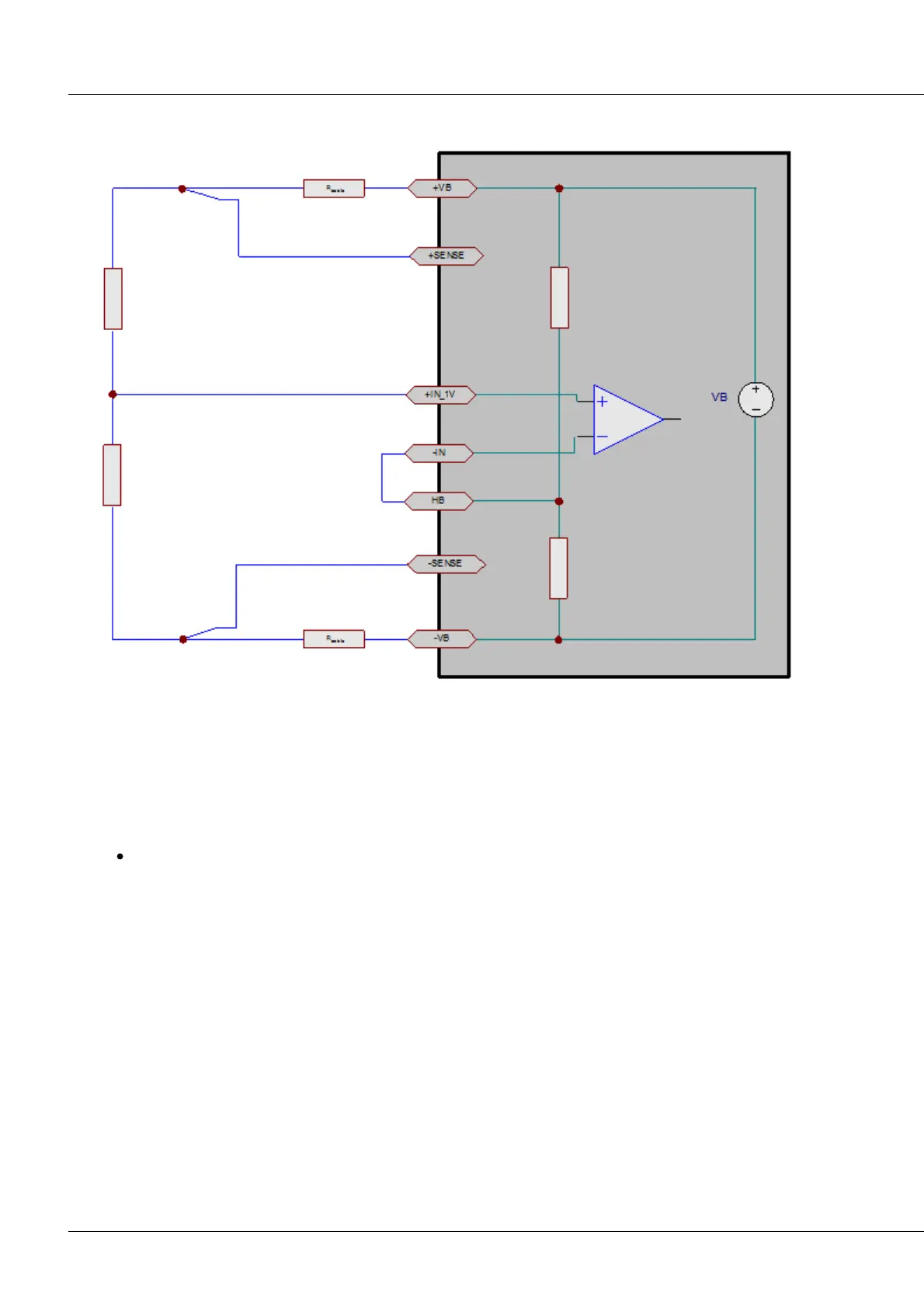

In many applications the sensor only comprises half of the full bridge, in other words two opposed
variable resistors. The other half must be completed using a (highly constant) symmetric resistant
conductors. With the imc µ-CANSAS bridge channel, this half-bridge completion is already available as a
pre-configured internal circuit. It has an external contact “HB” at the terminal connector and only needs
to be connected with the input pin -IN by means of a wire jumper.
Input ranges:
Voltage: ±200 mV/V ... ±0,5 mV/V
connected at +IN_1V and -IN
