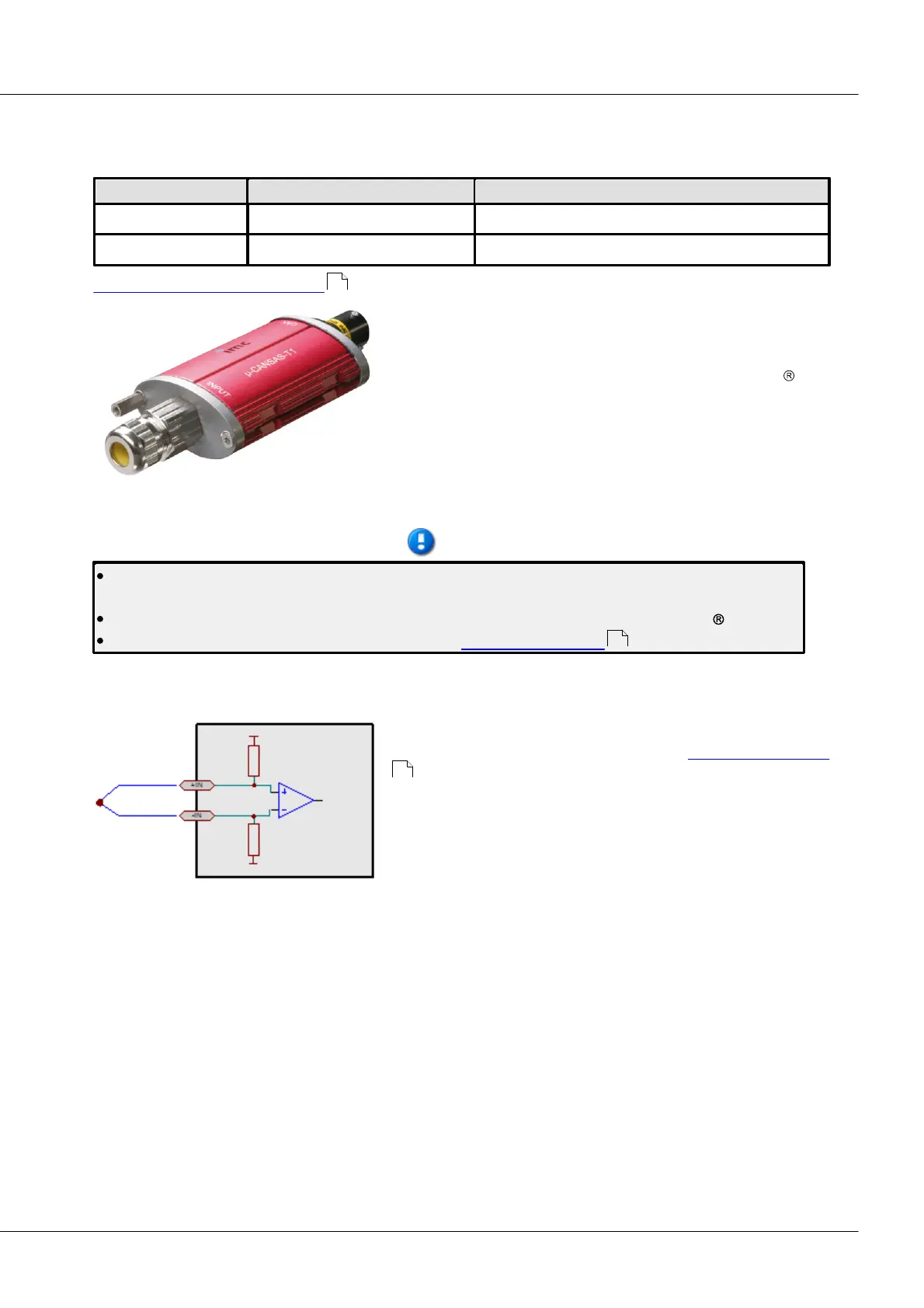

6.22 µ-CANSAS-T1
1-channel temperature measurement amplifier
Parameter
Value (typ. / max)
Remarks
Channels
1
1 channel on 8-pin Phoenix MPT0.5/8
Measurement mode
Thermocouple measurement
R, S, B, J, T, E, K, N
Technical data imc µ-CANSAS-T1.
µ-CANSAS-T1
imc µ-CANSAS-T1 is a 1-channel differential measurement
amplifier with 24-bit A/D-conversion for temperature
measurements The conditioned and digitalized signal from
analog sensors can be outputted as a CAN- or CANopen
signal. imc µ-CANSAS-T1 is particularly designed for use in
extremely warm environments.
Note
Synchronization is performed exclusively as Slave according to the CAN1-protocol and is provided
under the node Special functions.
Beside working with CAN-bus per default, the module is also configurable as CANopen module.
The functions of the LEDs are described in section imc CANSAS blinking codes.
6.22.1 Temperature measurement
µ-CANSAS-T1: Connection diagram
The imc µ-CANSAS-T1 is designed for direct measurement of
thermocouples; all commercially available thermocouple types
, with their characteristic curves are supported. In contrast
to the normal imc CANSAS modules the modules imc µ-
CANSAS-T1 and imc µ-CANSAS-T4 are using the standard
IEC584-1 / ITS90 to convert the voltage.
