Warning
Do not damage the safety seal!
Each high-voltage module of your CANSAS-HCI8 unit was inspected for compliance with the safety
guidelines per DIN EN 61010-1 prior to delivery, and subjected to a high-voltage test. The module is
sealed after having passed these final tests.
If the safety seal is damaged, safe work cannot be ensured.
Any intervention, for instance temporary removal of the module, makes re-inspection for safety.
6.14.2 Current measurement
configuration for current measurement
Current: ±20 mA, ±10 mA

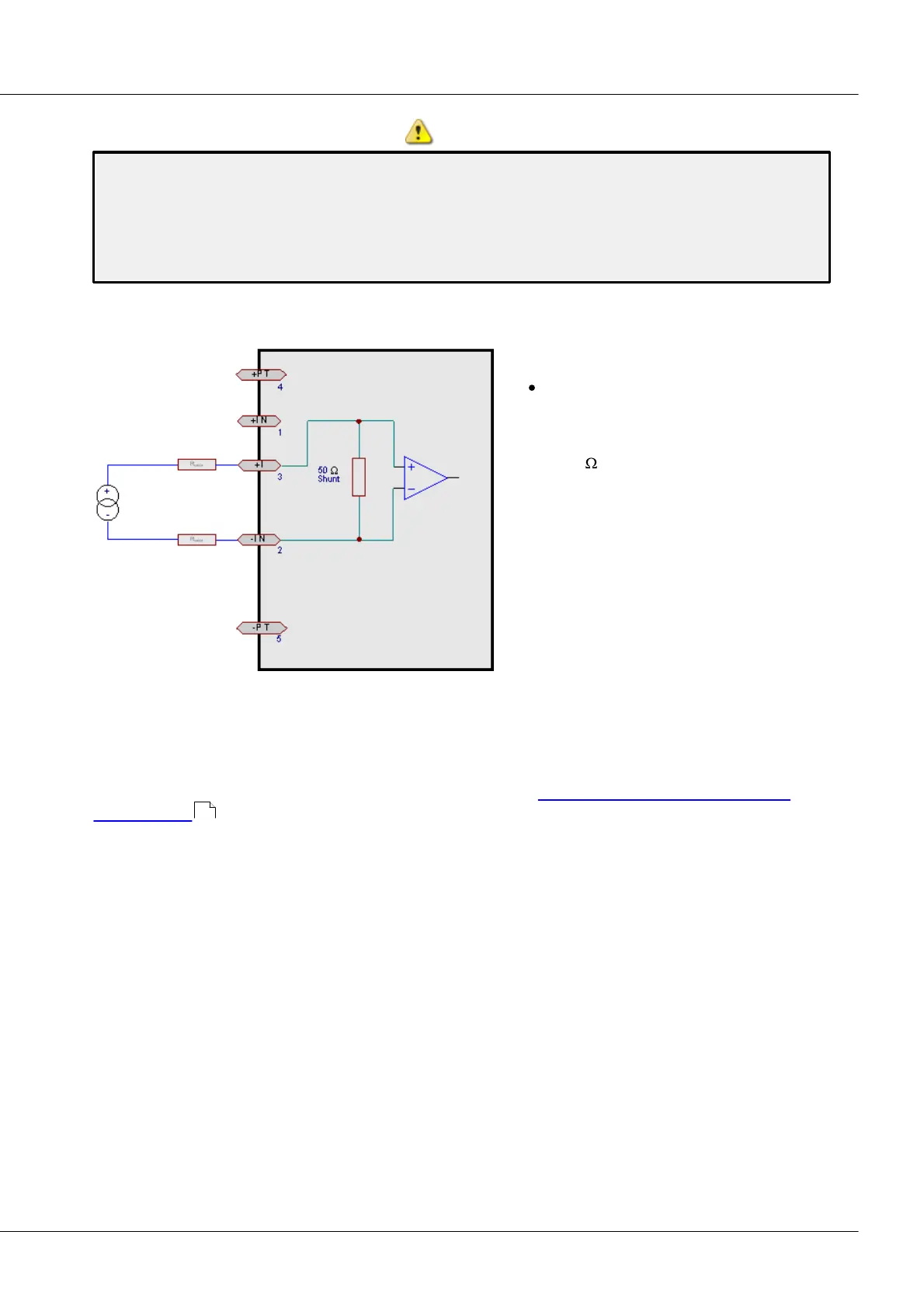

The current measurement is connected via an
internal 50 shunt. Toward this end, the
current signal is connected at the pins +I and -
IN.
6.14.3 Temperature measurement
The input channels are designed for direct connection of thermocouples and PT100-sensors (RTD,
platinum-resistance thermometers according DIN and IEC 751). Detailed description of temperature
measurement .
