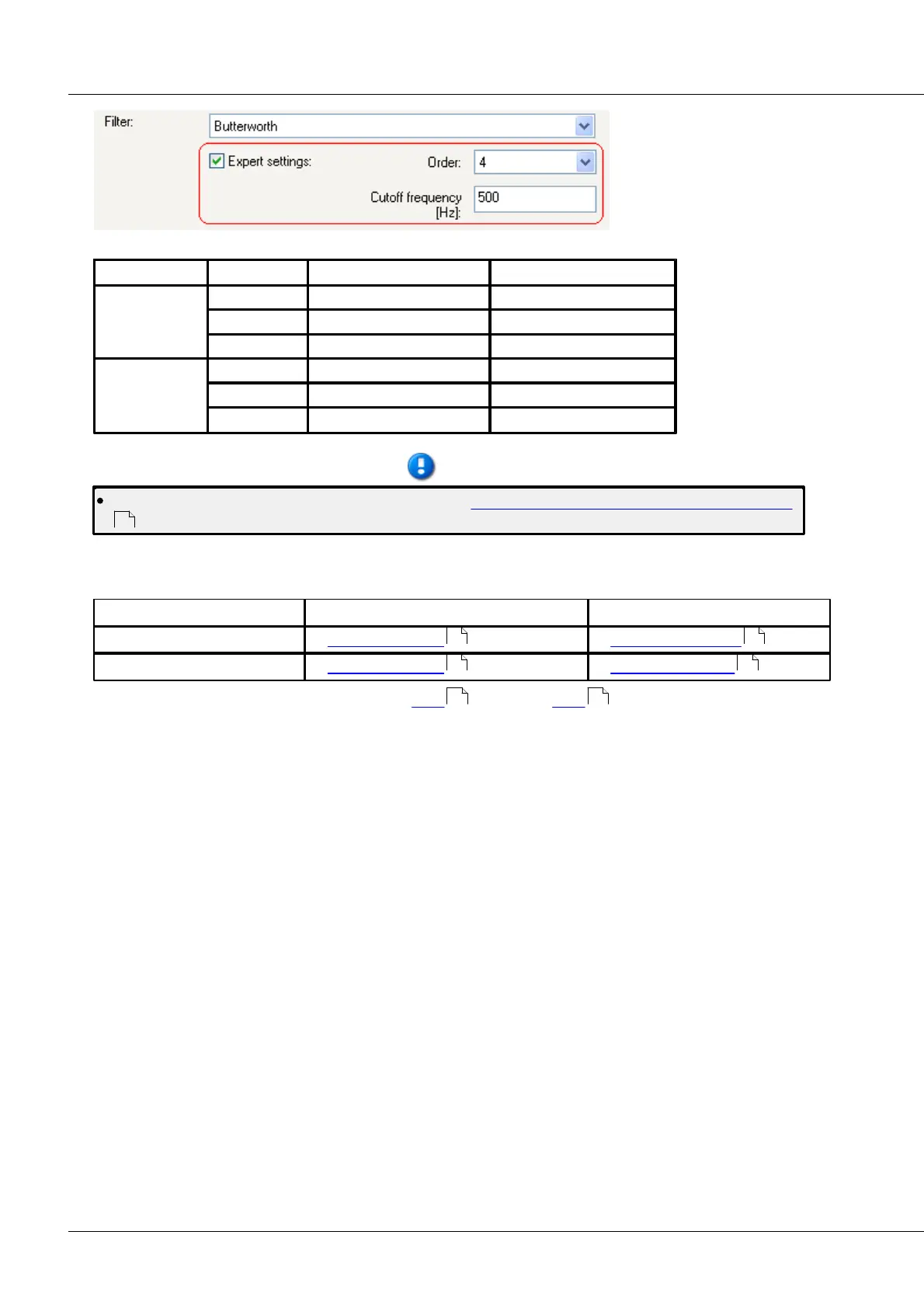

µ-CANSAS-V1: Expert Settings Filter
Filter
Order
lower cut off frequency
upper cut off frequency
Bessel
1
0,002 Hz
400 Hz
2
0,008 Hz
400 Hz
3
0,009 Hz
380 Hz
Butterworth
1
0,002 Hz
400 Hz
2
0,02 Hz
400 Hz
3
0,02 Hz
400 Hz
Note
Please note the hint concerning double values with imc CANSAS modules and imc DEVICES/Studio
.
6.21.6 µ-CANSAS-V1 connector
variant
signal (sensor) connection
CAN-Bus
µ-CAN-V1-AS
1x 8-pin Phoenix
1x 6-pin Autosport
µ-CAN-V1-L
1x 8-pin Phoenix
2x 5-pin LEMO 0B
Sensor connector with Autosport AS plug see here . Cables see here .
