6.6.3 Linking the output signal to a CAN-message
If an output is to be controlled by a CAN message, it is necessary for the output signal to be positioned in
a message. This is accomplished by means of Drag&Drop applied to the output's bit in the module tree
diagram. Note that the tree diagram is organized according to messages. Subsequently, the function for
the output signal Read-in-CAN-channel is set permanently.

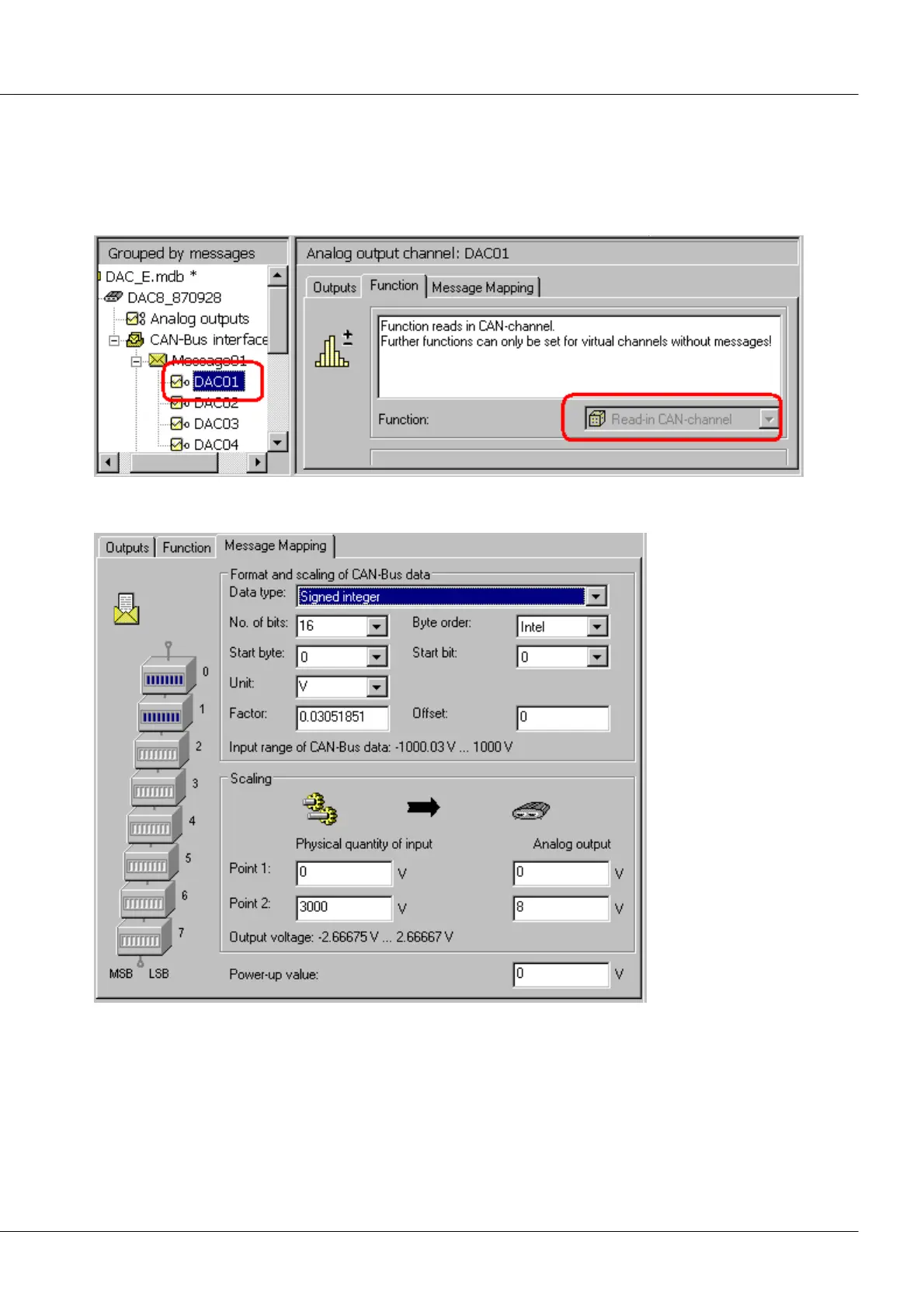

Output signal DAC01 is positioned in message "Message01".
The function set is always "Read-in CAN-channel"
Message mapping for an analog output signal
