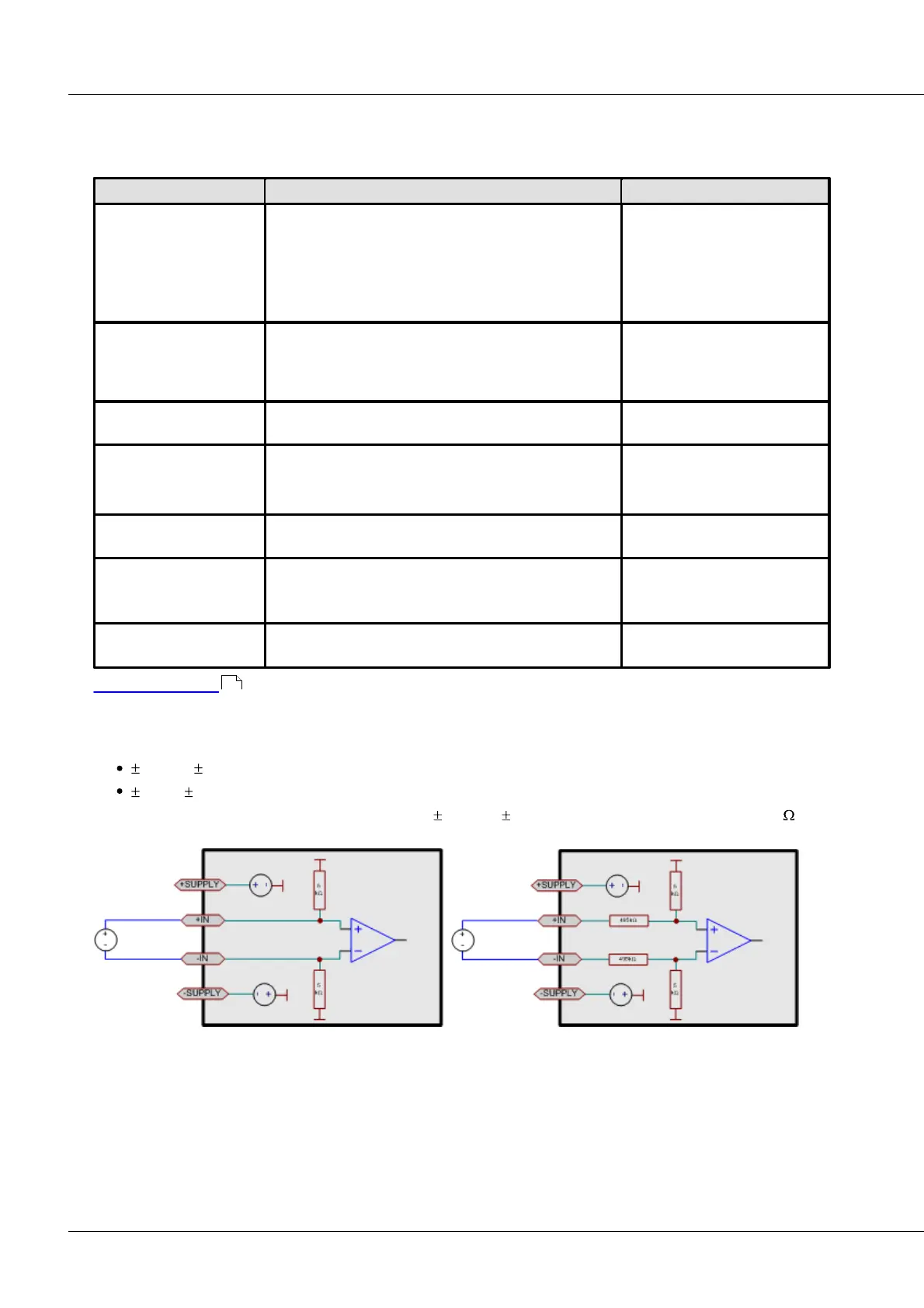

6.4 C8 voltage, temperature, current
8 differential, analog inputs
Variety
Properties
Remarks
Standard (DSUB)
- voltage measurement 60 V…5 mV
- temperature measurement with thermocouples
- temperature measurement with Pt100-resistors
-current measurement with shunt connector (ACC/
DSUB-I4)
imc CANSAS-C8
imc CANSAS-L-C8- SUPPLY imc
CANSAS-K-C8
imc CANSAS-K-C8-SUPPLY
imc CANSAS-SL-C8-D
imc CANSAS-SL-C8-D-SUPPLY
LEMO
- voltage measurement 60 V…5 mV
- temperature measurement with Pt100-resistors
-current measurement
imc CANSAS-SL-C8-L
imc CANSAS-SL-C8-L-SUPPLY
BNC
- voltage measurement over BNC sockets
60 V…5 mV
imc CANSAS-K-C8-BNC
2T
- temperature measurement with thermocouples over
2 pin TK sockets as per IEC 584
imc CANSAS-K-C8-2T
special
Var. I with round plug 5-
pin Fischer
- voltage measurement 60 V…5 mV
- supply voltage for external sensors
24 V...2,5 V; ±15 V
Var. II with round plug
SOURIAU
- temperature measurement with thermocouples
Technical data C8
6.4.1 Voltage measurement
60 V... 2 V with divider
1 V... 5mV without divider
A voltage divider is in effect in the voltage ranges 60 V to 2V; the resulting input impedance is 1M -
even when the device is deactivated. The input configuration is differential and DC-coupled.
without divider: <2V
with divider: >= 60V
