8.3.8 Modules with Autosport (AS) terminals
Pin configuration of the Autosport terminal type AS212-35SN for imc µ-CANSAS-V4-AS
AS212-35SN
Pin
Signal

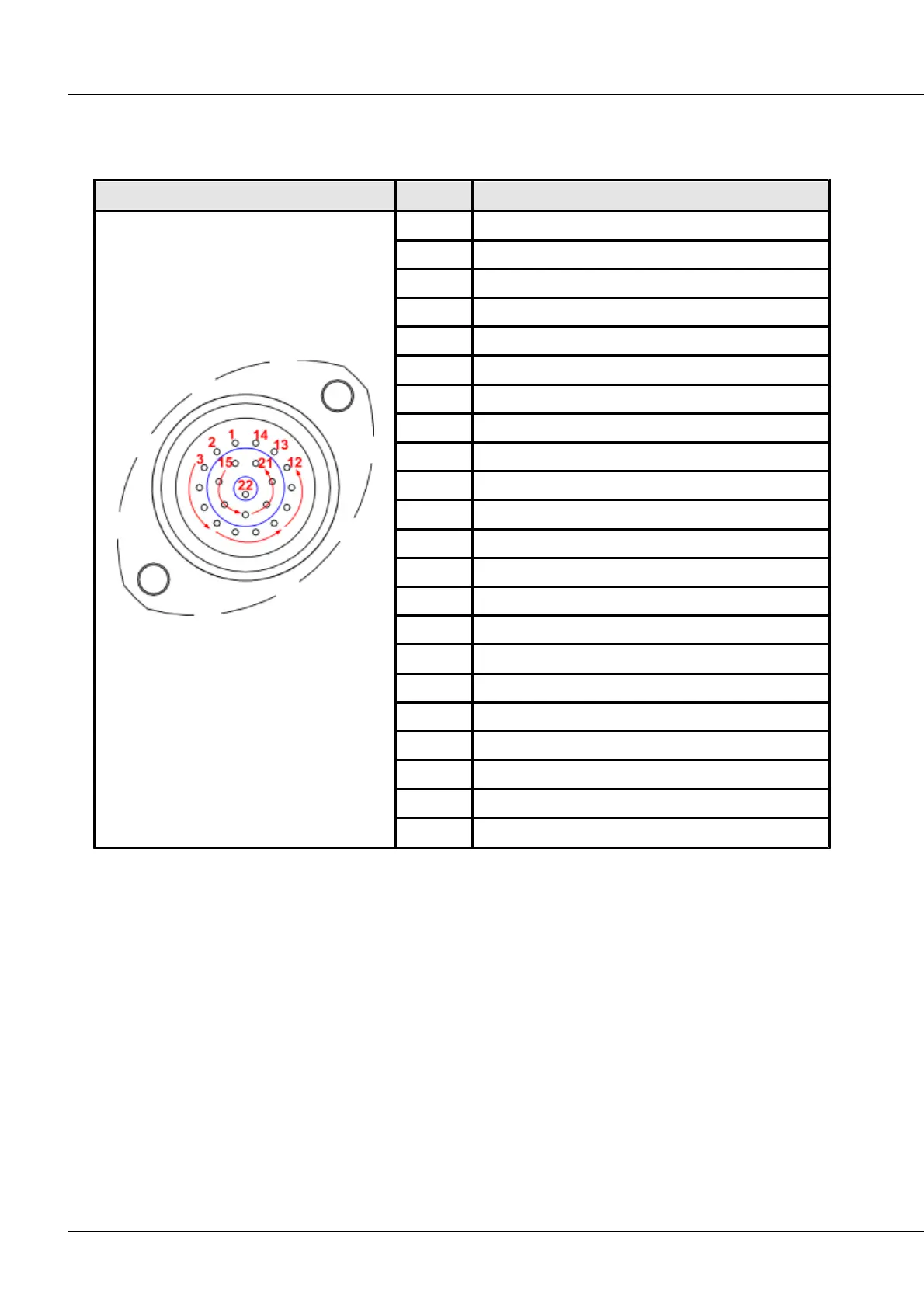

22-pin Autosport terminal
of the type AS212-35SN
1
+IN_60V_CH1 (MB: 2..60V)
2
+IN_1V_CH1 (MB: 0,1..1V)
3
+SUPPLY_CH1
4
+SUPPLY_CH2
5
-SUPPLY_CH2
6
+SUPPLY_CH3
7
n.c.
8
-SUPPLY_CH4
9
+IN_60V_CH4 (MB: 2 .. 60V)
10
+IN_1V_CH4 (MB: 0,1 .. 1V)
11
+IN_60V_CH3 (MB: 2 .. 60V)
12
+IN_1V_CH3 (MB: 0,1 .. 1V)
13
+IN_60V_CH2 (MB: 2 .. 60V)
14
+IN_1V_CH2 (MB: 0,1 .. 1V)
15
-IN_COM_CH1
16
-SUPPLY_CH1
17
-SUPPLY_CH3
18
+SUPPLY_CH4
19
-IN_COM_CH4
20
-IN_COM_CH3
21
-IN_COM_CH2
22
n.c.
