562 Pin configuration and power supply
imc CANSAS Users Manual - Doc. Version 1.9 - 05.12.2014© 2014 imc Meßsysteme GmbH

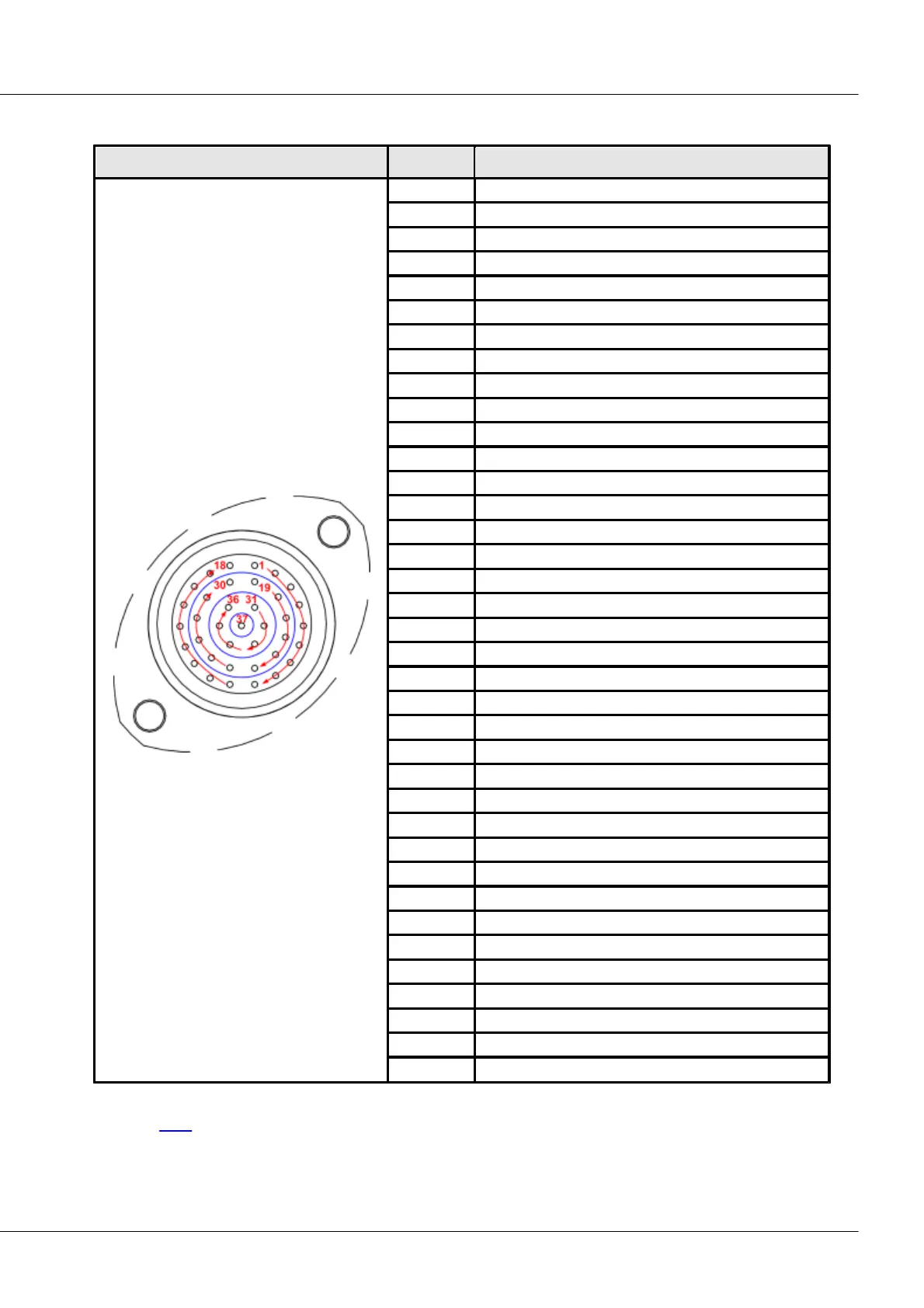

Pin configuration of the Autosport terminal type AS214-35SN for imc µ-CANSAS-B4-AS
AS214-35SN
Pin
Signal
37-pin Autosport terminal
of the type AS214-35SN
1
+Sense_CH4
2
+SUPPLY_CH4
3
HB_CH4
4
-IN_COM_CH4
5
HB_CH3
6
-IN_COM_CH3
7
n.c.
8
n.c.
9
HB_CH2
10
-IN_COM_CH2
11
-IN_COM_CH1
12
HB_CH1
13
+Sense_CH1
14
+SUPPLY_CH1
15
+Sense_CH2
16
+SUPPLY_CH2
17
+Sense_CH3
18
+SUPPLY_CH3
19
-SUPPLY_CH3
20
-SUPPLY_CH4
21
n.c.
22
+IN_1V_CH4
23
+IN_1V_CH3
24
+IN_1V_CH2
25
n.c.
26
+IN_1V_CH1
27
-Sense_CH1
28
-SUPPLY_CH1
29
-SUPPLY_CH2
30
-Sense_CH3
31
-Sense_CH4
32
n.c.
33
n.c.
34
n.c.
35
n.c.
36
-Sense_CH2
37
n.c.
Special tools exist for the purpose of assembling the Autosport connectors. More information is
available here.
