HVCI8 349
imc CANSAS Users Manual - Doc. Version 1.9 - 05.12.2014© 2014 imc Meßsysteme GmbH

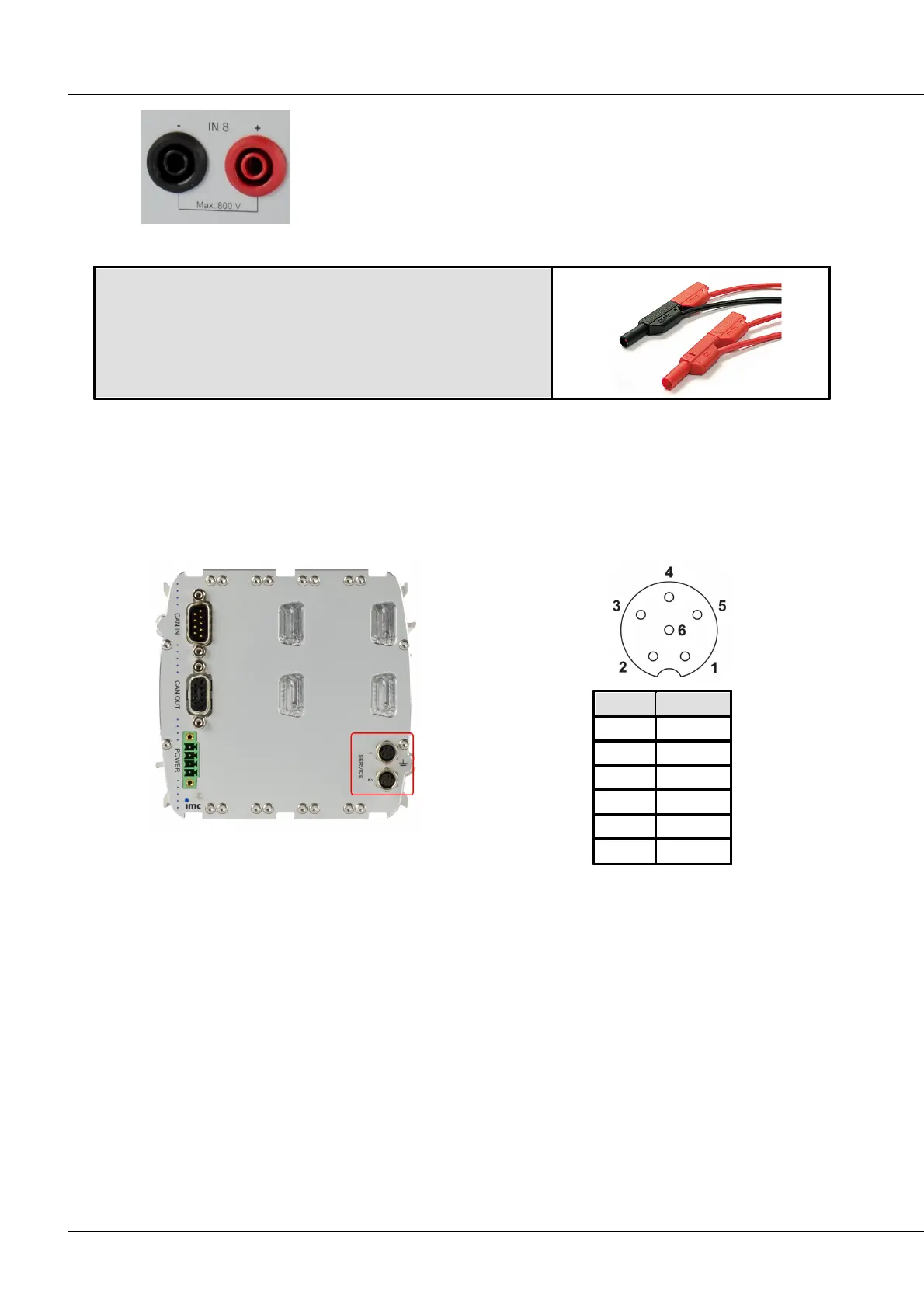

IN5 to IN8
For voltage measurements of up to 800 V safety
banana jacks are provided.
The maximum permitted voltage to ground depends on the
measurement site.
Only use connectors which are protected on all sides against
touch.
All the inputs are individually isolated. The voltage channels IN5 to IN8 are each equipped with isolated
amplifiers. The measurement signal is directly connected to the device via a safety banana jack.
The imc CANSAS-HVCI8 module ist equipped with 2x 6-pin Service connectors on the rear side. Those
terminal connections are dedicated to imc personal for service issues (calibration and adjustment)
rear side: imc CANSAS-L-HVCI8
PIN
contact
1
+ PT1
2
-PT2
3
+PT3
4
+PT4
5
AG
6
-KALx
