Reflections at line branches can be minimized by keeping the branches as short as possible. By
terminating lines at either end, the best possible combination of transfer rate and bus line length can be
achieved.

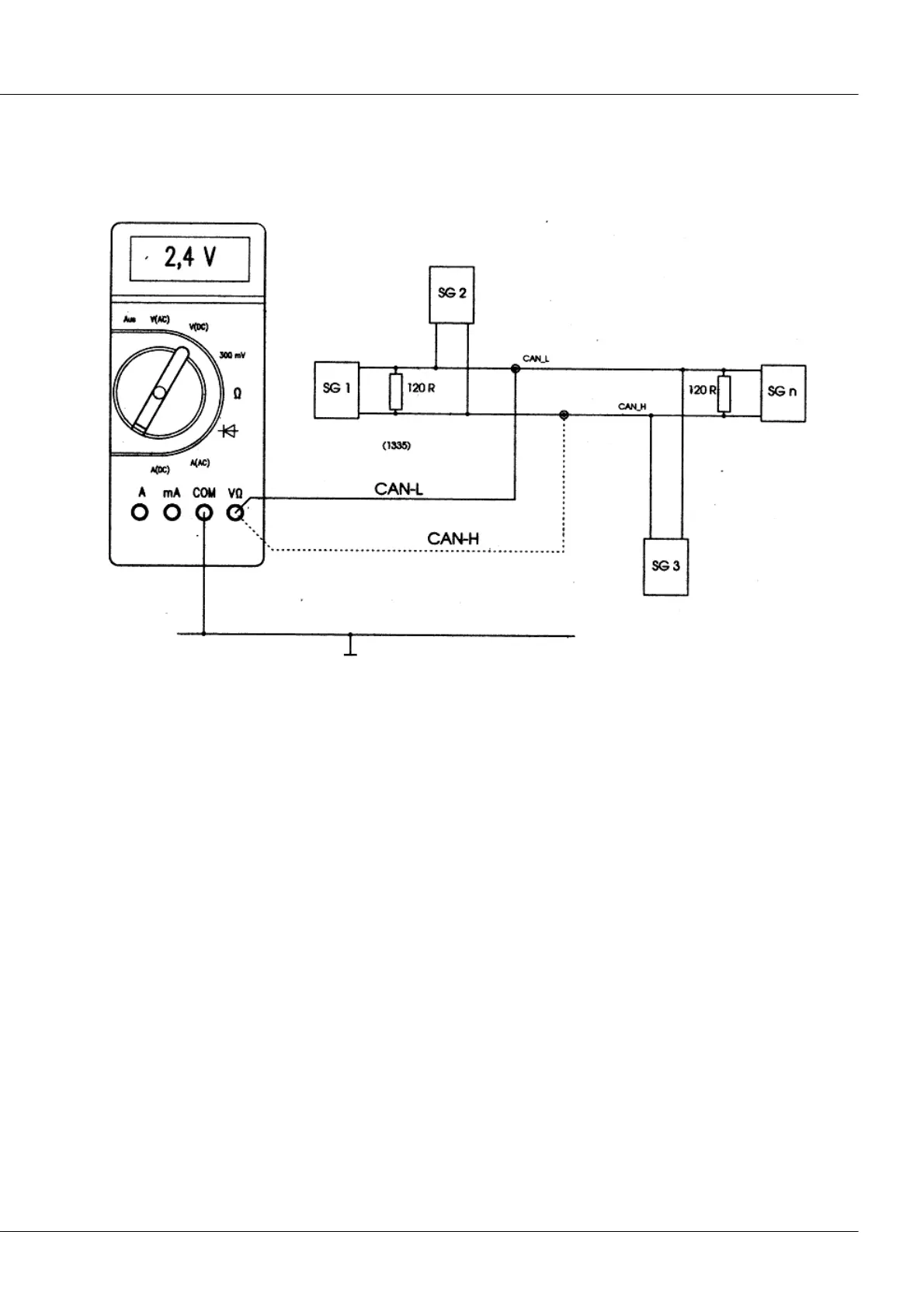

DC-voltage measurement with high-speed CAN-Bus
A good multimeter can usually measure the recessive CAN-Bus level, measured to ground.
The two CAN-Bus levels are approximately equal.
For the CAN-Bus levels CAN-H and CAN-L, each measured to ground, the following approximations apply:
For CAN-H recessive approx. 2,4 Volt.
For CAN-L recessive approx. 2,6 Volt
DC-voltage measurement with low-speed CAN-Bus
In contrast to high-speed bus coupling, the low speed bus coupling can also be run in single-wire mode.
