Flexible static memory controller (FSMC) RM0402

256/1163 RM0402 Rev 6

Mode 1 - SRAM/PSRAM (CRAM)

The next figures show the read and write transactions for the supported modes followed by

the required configuration of FSMC_BCRx, and FSMC_BTRx/FSMC_BWTRx registers.

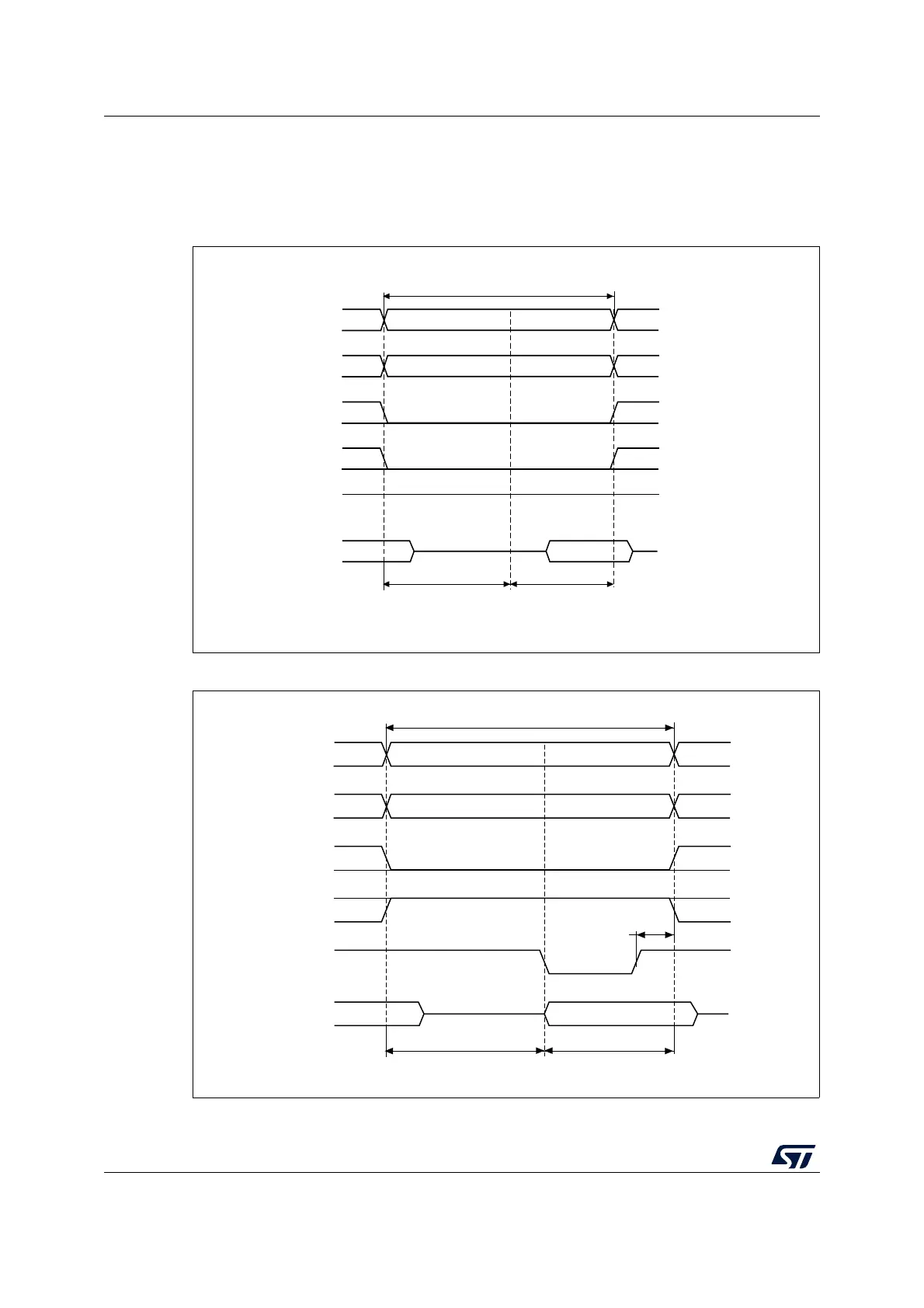

Figure 33. Mode 1 read access waveforms

Figure 34. Mode 1 write access waveforms

A[25:0]

NOE

ADDSET DATAST

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NBL[1:0]

data driven

by memory

MS34477V1

High

MSv40113V1

A[25:0]

NOE

ADDSET (DATAST + 1)

Memory transaction

NEx

D[15:0]

HCLK cycles

NWE

NBL[1:0]

data driven by FSMC

1HCLK
