ST STM32F412 - Debug Mode; Figure 203. Control Circuit in Normal Mode, Internal Clock Divided by 1

To Next Page

To Previous Page

RM0402 Rev 6 599/1163

RM0402 Basic timers (TIM6/7)

604

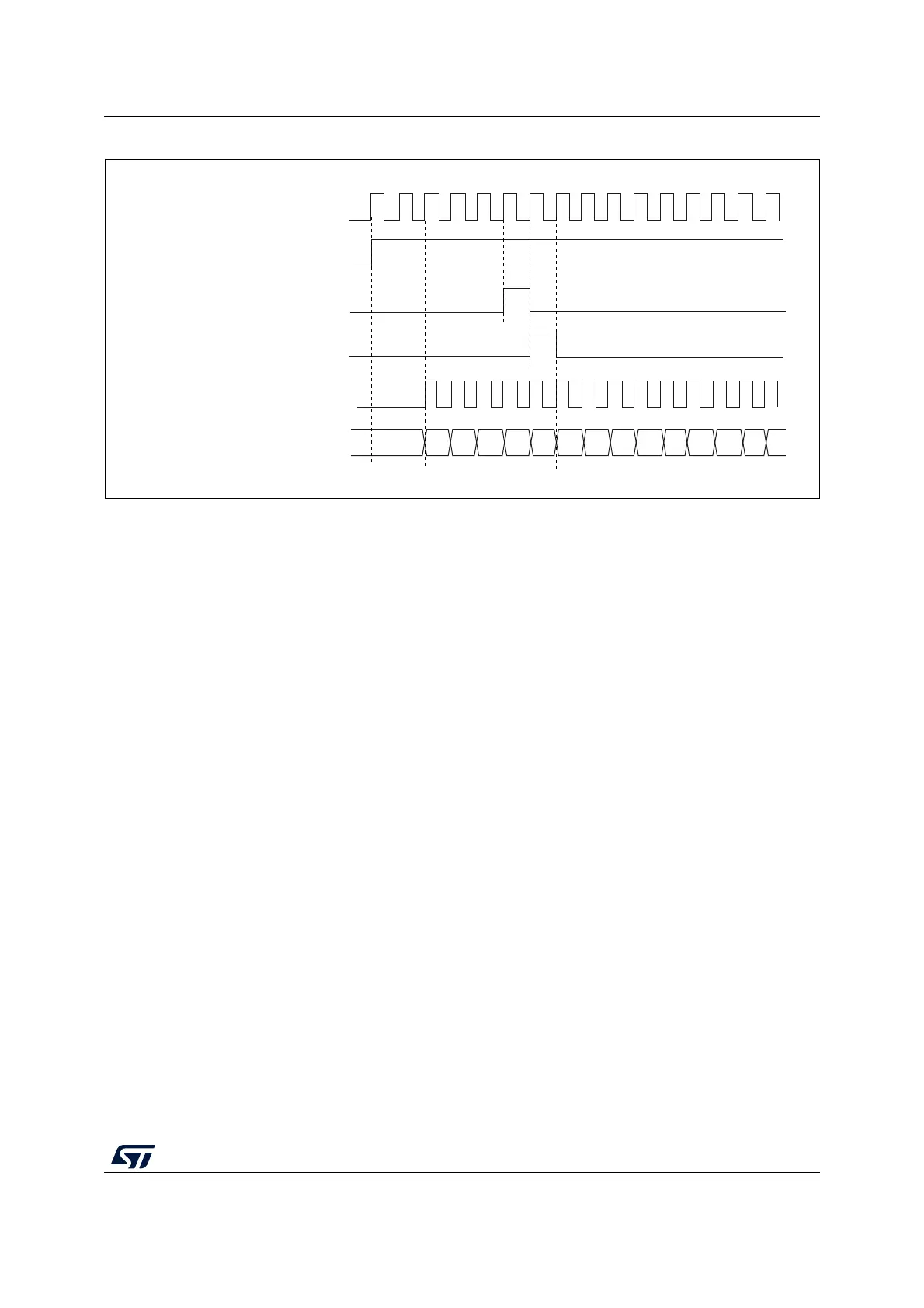

Figure 203. Control circuit in normal mode, internal clock divided by 1

19.3.4 Debug mode

When the microcontroller enters the debug mode (Cortex

-M4 with FPU core - halted), the

TIMx counter either continues to work normally or stops, depending on the

DBG_TIMx_STOP configuration bit in the DBG module. For more details, refer to

Section 30.16.2: Debug support for timers, watchdog, bxCAN and I

Internal clock

Counter clock = CK_CNT = CK_PSC

Counter register

CEN=CNT_EN

CNT_INIT

MS31085V2

04 05

06 0732

34 35 36
