Serial peripheral interface/ inter-IC sound (SPI/I2S) RM0402

822/1163 RM0402 Rev 6

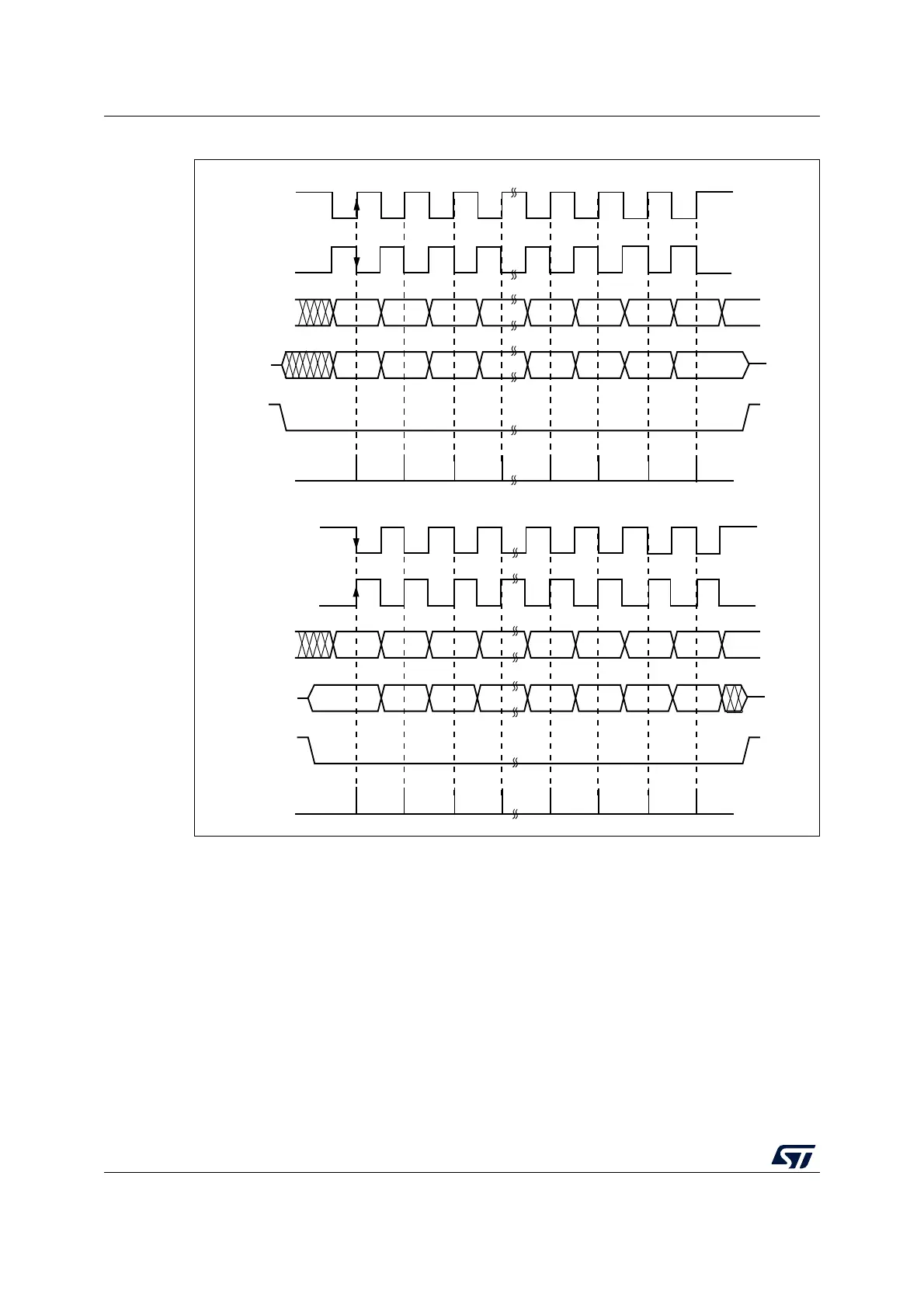

Figure 277. Data clock timing diagram

Note: The order of data bits depends on LSBFIRST bit setting.

Data frame format

The SPI shift register can be set up to shift out MSB-first or LSB-first, depending on the

value of the LSBFIRST bit. Each data frame is 8 or 16 bit long depending on the size of the

data programmed using the DFF bit in the SPI_CR1 register. The selected data frame

format is applicable both for transmission and reception.

CPOL = 1

CPOL = 0

MSBit

LSBit

MSBit

LSBit

MISO

MOSI

NSS

(to slave)

Capture strobe

CPHA =1

CPOL = 1

CPOL = 0

MSBit

LSBit

MSBit

LSBit

MISO

MOSI

NSS

(to slave)

Capture strobe

CPHA =0

ai17154d
