Basic timers (TIM6/7) RM0402

598/1163 RM0402 Rev 6

Figure 202. Counter timing diagram, update event when ARPE=1 (TIMx_ARR

preloaded)

19.3.3 Clock source

The counter clock is provided by the Internal clock (CK_INT) source.

The CEN (in the TIMx_CR1 register) and UG bits (in the TIMx_EGR register) are actual

control bits and can be changed only by software (except for UG that remains cleared

automatically). As soon as the CEN bit is written to 1, the prescaler is clocked by the internal

clock CK_INT.

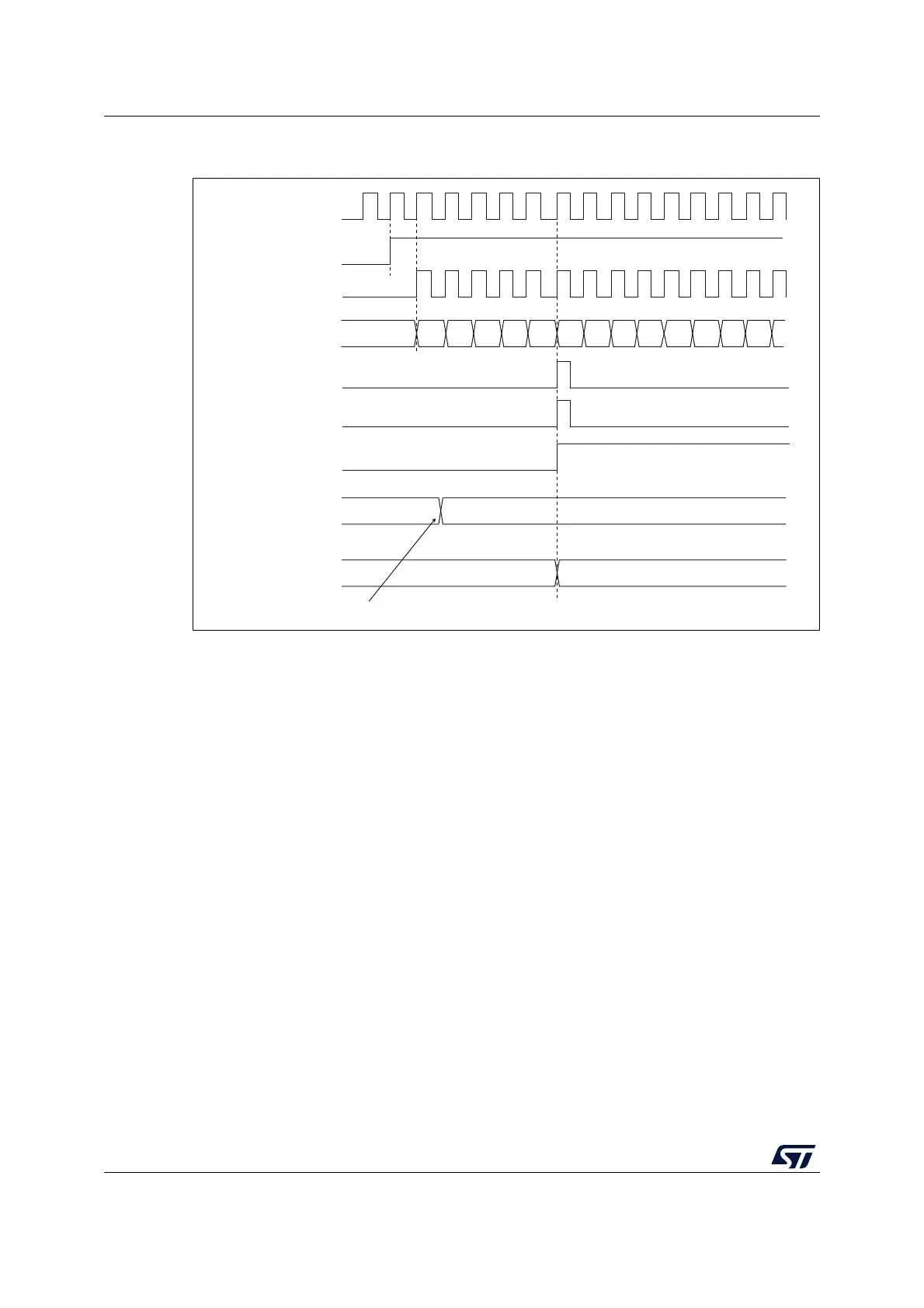

Figure 203 shows the behavior of the control circuit and the upcounter in normal mode,

without prescaler.

MS31083V2

CK_PSC

Timerclock = CK_CNT

Counter register

Update event (UEV)

Counter overflow

Update interrupt flag

(UIF)

03 04 05

07F1

F3 F4

F5F0

CEN

Auto-reload preload

Write a new value in TIMx_ARR

Auto-reload shadow
