Advanced-control timers (TIM1&TIM8) RM0402

424/1163 RM0402 Rev 6

DMA request is sent). This is to avoid generating both update and capture interrupts when

clearing the counter on the capture event.

When an update event occurs, all the registers are updated and the update flag (UIF bit in

TIMx_SR register) is set (depending on the URS bit):

• The repetition counter is reloaded with the content of TIMx_RCR register

• The buffer of the prescaler is reloaded with the preload value (content of the TIMx_PSC

• The auto-reload active register is updated with the preload value (content of the

TIMx_ARR register). Note that if the update source is a counter overflow, the auto-

reload is updated before the counter is reloaded, so that the next period is the expected

one (the counter is loaded with the new value).

The following figures show some examples of the counter behavior for different clock

frequencies.

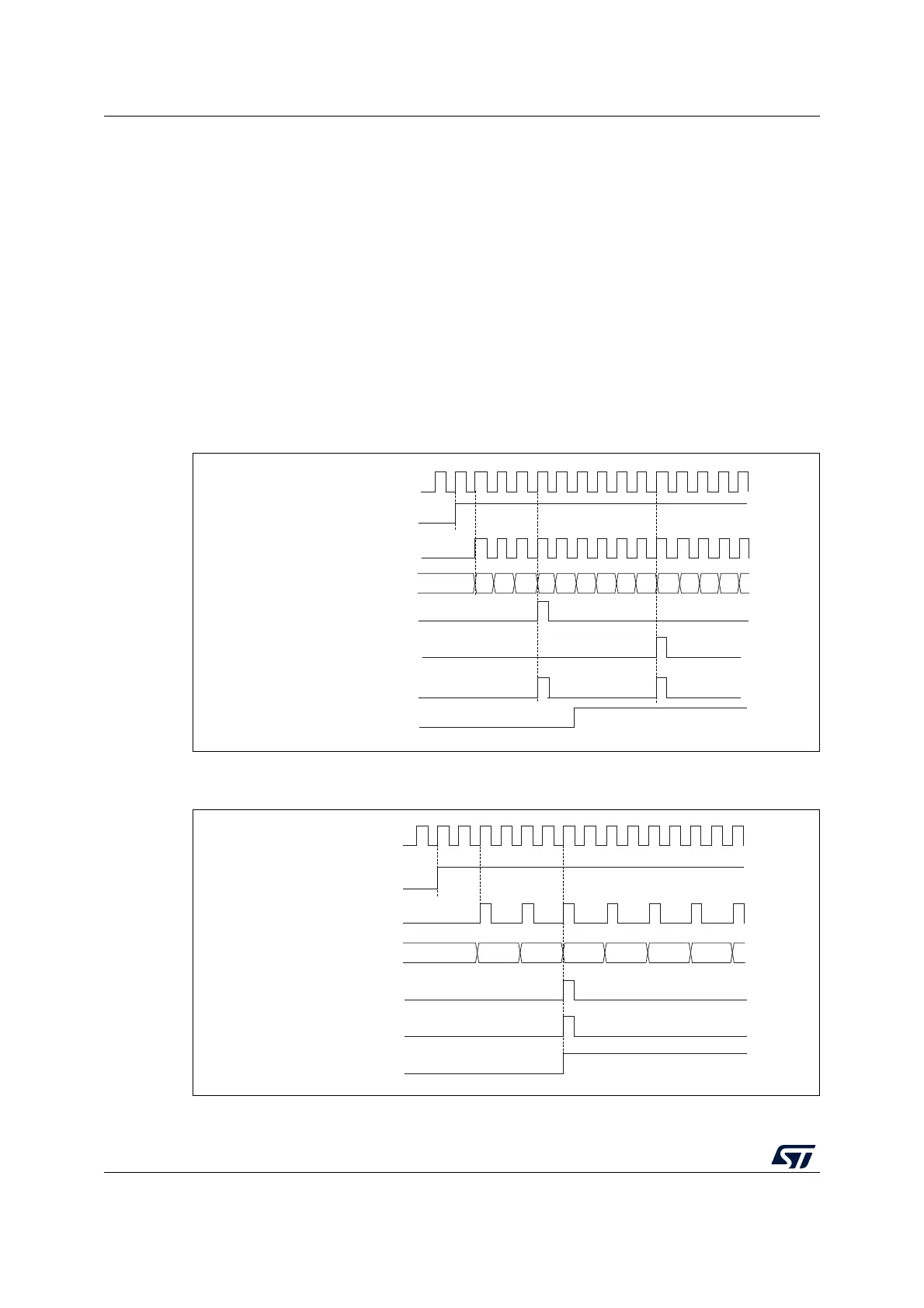

Figure 91. Counter timing diagram, internal clock divided by 1, TIMx_ARR = 0x6

1. Here, center-aligned mode 1 is used (for more details refer to Section 16.4: TIM1&TIM8 registers).

Figure 92. Counter timing diagram, internal clock divided by 2

MS31189V2

CK_PSC

Timerclock = CK_CNT

Counter register

Update event (UEV)

Counter overflow

Update interrupt flag (UIF)

CEN

Counter underflow

00020304 05 0601 02 03 0401 05 0304

MS31190V2

CK_PSC

Timerclock = CK_CNT

Counter register

Update event (UEV)

Update interrupt flag (UIF)

CNT_EN

Counter underflow

0003 0002 0001 0000 0001 0002 0003
