RM0402 Rev 6 675/1163

RM0402 Fast-mode Plus Inter-integrated circuit (FMPI2C) interface

722

Slave receiver

RXNE is set in FMPI2C_ISR when the FMPI2C_RXDR is full, and generates an interrupt if

RXIE is set in FMPI2C_CR1. RXNE is cleared when FMPI2C_RXDR is read.

When a STOP is received and STOPIE is set in FMPI2C_CR1, STOPF is set in

FMPI2C_ISR and an interrupt is generated.

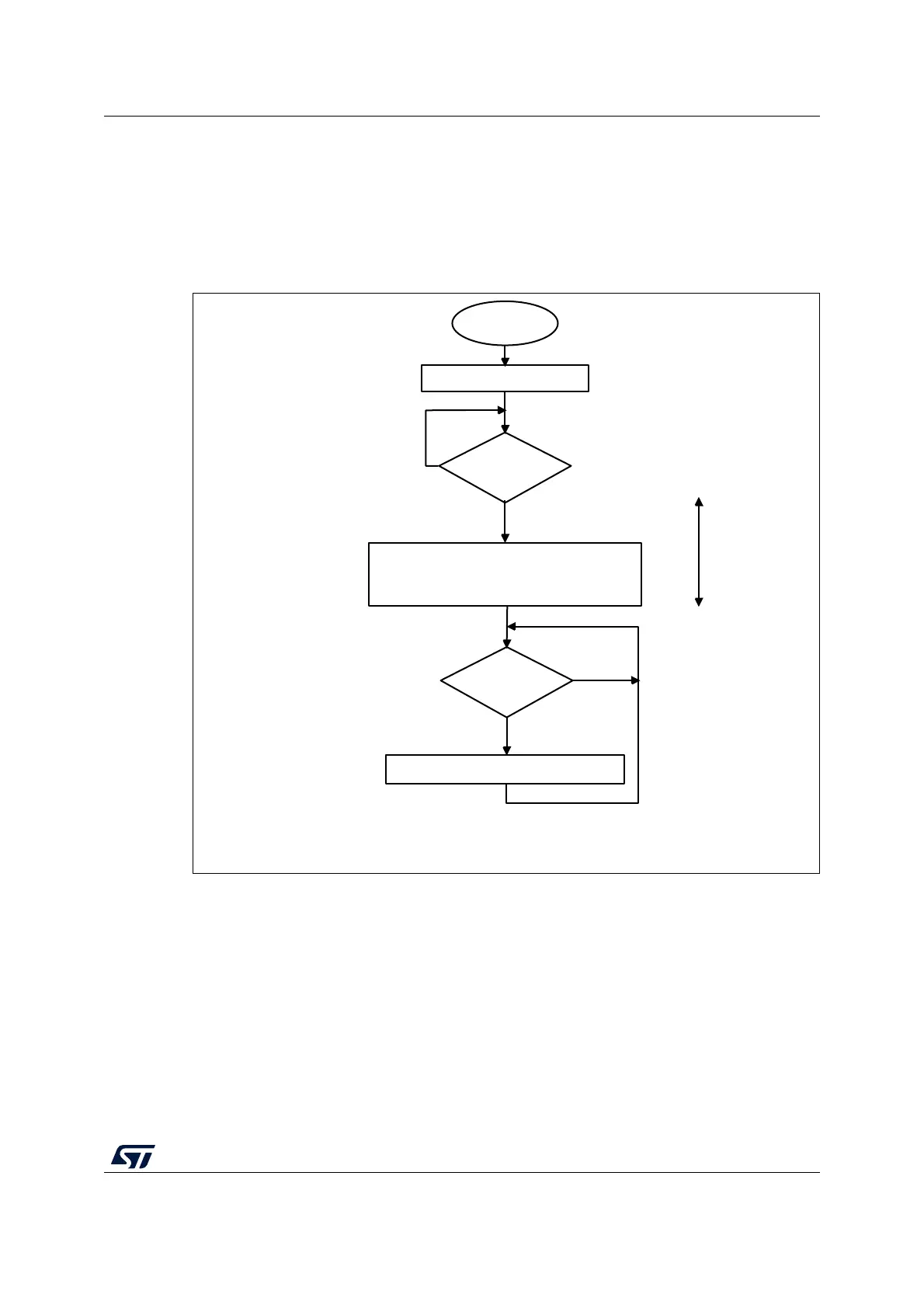

Figure 218. Transfer sequence flowchart for slave receiver with NOSTRETCH=0

MSv35966V1

Slave initialization

Slave reception

Read ADDCODE and DIR in FMPI2C_ISR

Set FMPI2C_ICR.ADDRCF

Write FMPI2C_RXDR.RXDATA

FMPI2C_ISR.ADDR

=1?

Yes

FMPI2C_ISR.RXNE

=1?

Yes

SCL

stretched
