Muxed mode - multiplexed asynchronous access to NOR Flash memory

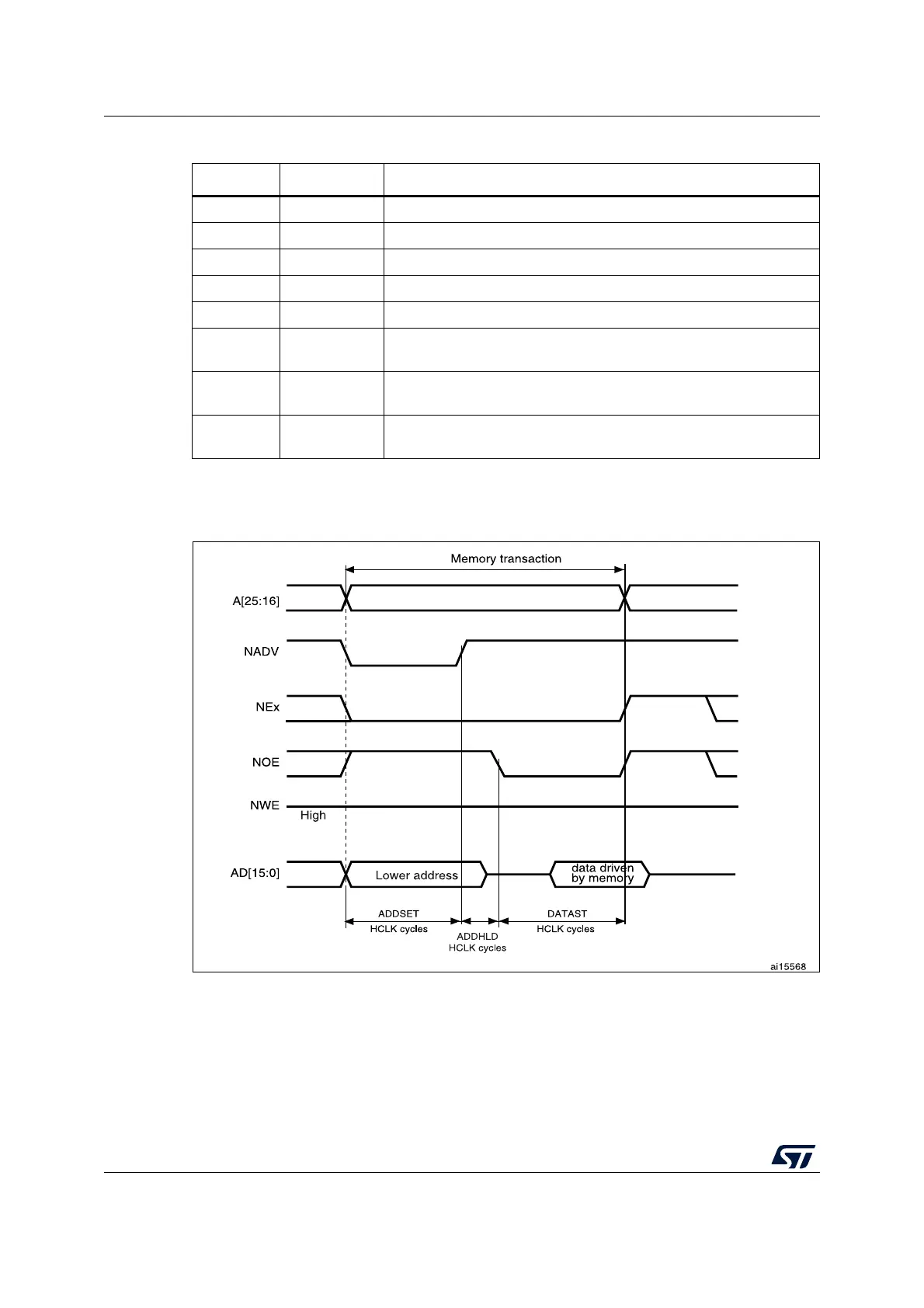

Figure 44. Muxed read access waveforms

Table 63. FSMC_BWTRx bitfields (mode D)

Bit number Bit name Value to set

31:30 Reserved 0x0

29:28 ACCMOD 0x3

27:24 DATLAT Don’t care

23:20 CLKDIV Don’t care

19:16 BUSTURN Time between NEx high to NEx low (BUSTURN HCLK).

15:8 DATAST

Duration of the second access phase (DATAST + 1 HCLK cycles) for

write accesses.

7:4 ADDHLD

Duration of the middle phase of the write access (ADDHLD HCLK

cycles)

3:0 ADDSET

Duration of the first access phase (ADDSET HCLK cycles) for write

accesses. Minimum value for ADDSET is 1.
