Serial peripheral interface/ inter-IC sound (SPI/I2S) RM0402

840/1163 RM0402 Rev 6

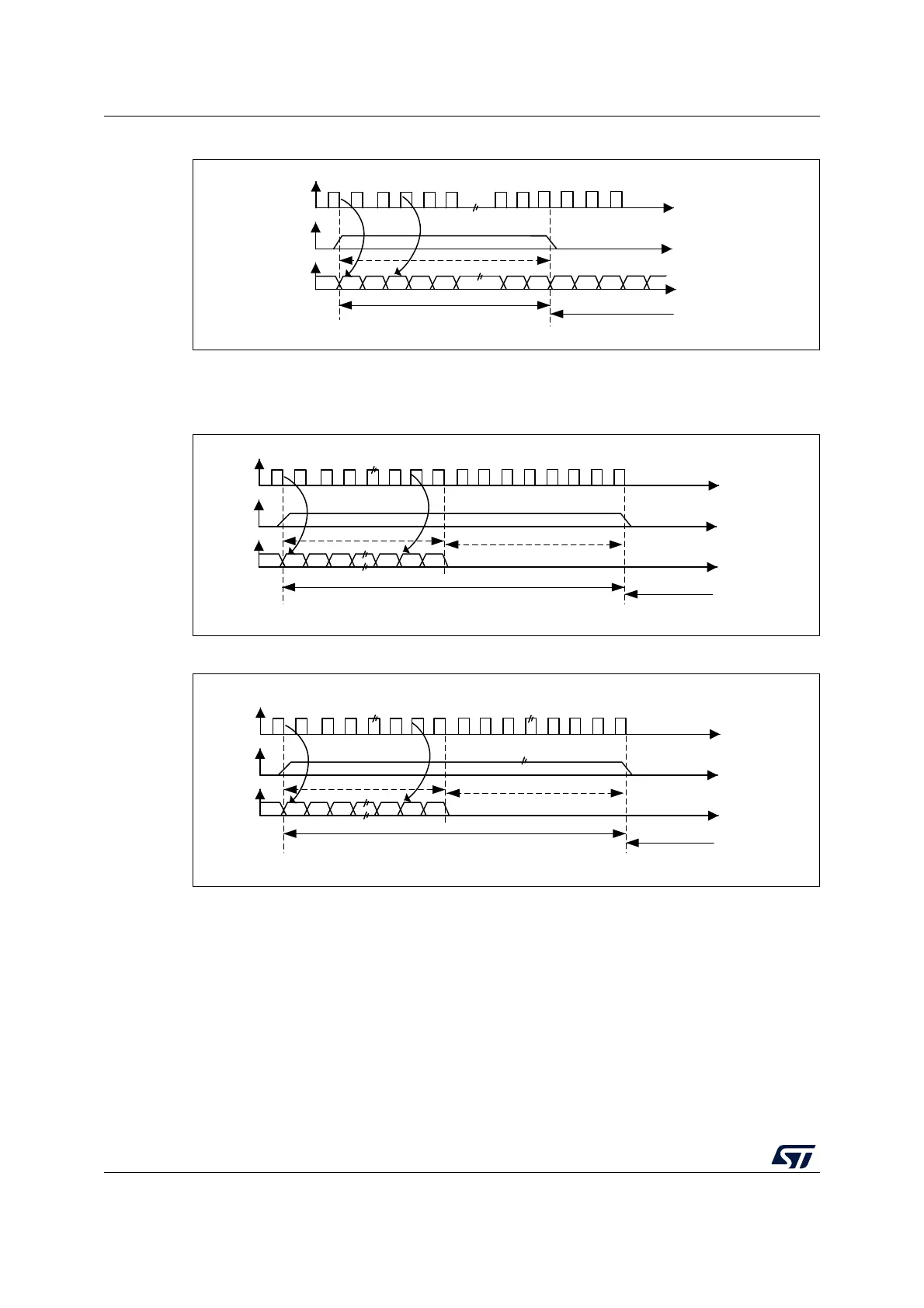

Figure 291. MSB Justified 16-bit or 32-bit full-accuracy length with CPOL = 0

Data are latched on the falling edge of CK (for transmitter) and are read on the rising edge

(for the receiver).

Figure 292. MSB justified 24-bit frame length with CPOL = 0

Figure 293. MSB justified 16-bit extended to 32-bit packet frame with CPOL = 0

LSB justified standard

This standard is similar to the MSB justified standard (no difference for the 16-bit and 32-bit

full-accuracy frame formats).

MS30100 V1

Transmission

Reception

16- or 32 bit data

MSB

LSB

Channel left

Channel right

MSB

MS30101V1

Transmission

Reception

24 bit data

MSB

LSB

Channel left 32-bit

Channel right

8-bit remaining

0 forced

MS30102V1

Transmission

Reception

16-bit data

MSB LSB

Channel left 32-bit

Channel right

16-bit remaining

0 forced
