RM0402 Advanced-control timers (TIM1&TIM8)

483

Figure 110 shows some center-aligned PWM waveforms in an example where:

• TIMx_ARR=8,

• PWM mode is the PWM mode 1,

• The flag is set when the counter counts down corresponding to the center-aligned

mode 1 selected for CMS=01 in TIMx_CR1 register.

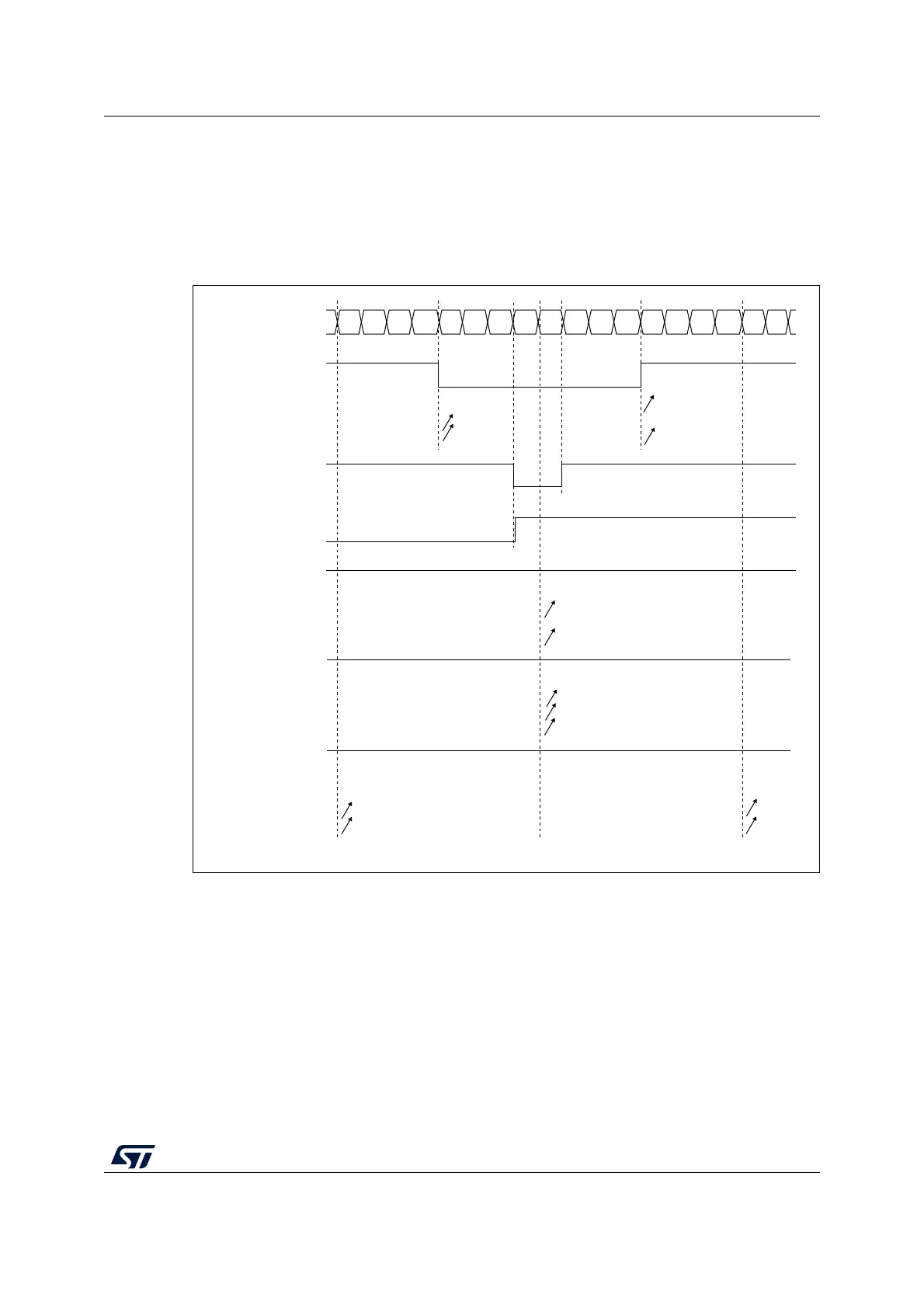

Figure 110. Center-aligned PWM waveforms (ARR=8)

CCxIF

01234567876 5432 101

Counter register

CCRx = 4

OCxREF

CMS=01

CMS=10

CMS=11

CCxIF

CCRx=7

OCxREF

CMS=10 or 11

CCxIF

CCRx=8

OCxREF

CMS=01

CMS=10

CMS=11

‘1’

CCxIF

CCRx>8

OCxREF

CMS=01

CMS=10

CMS=11

‘1’

CCxIF

CCRx=0

OCxREF

CMS=01

CMS=10

CMS=11

‘0’

AI14681b
