Controller area network (bxCAN) RM0402
936/1163 RM0402 Rev 6

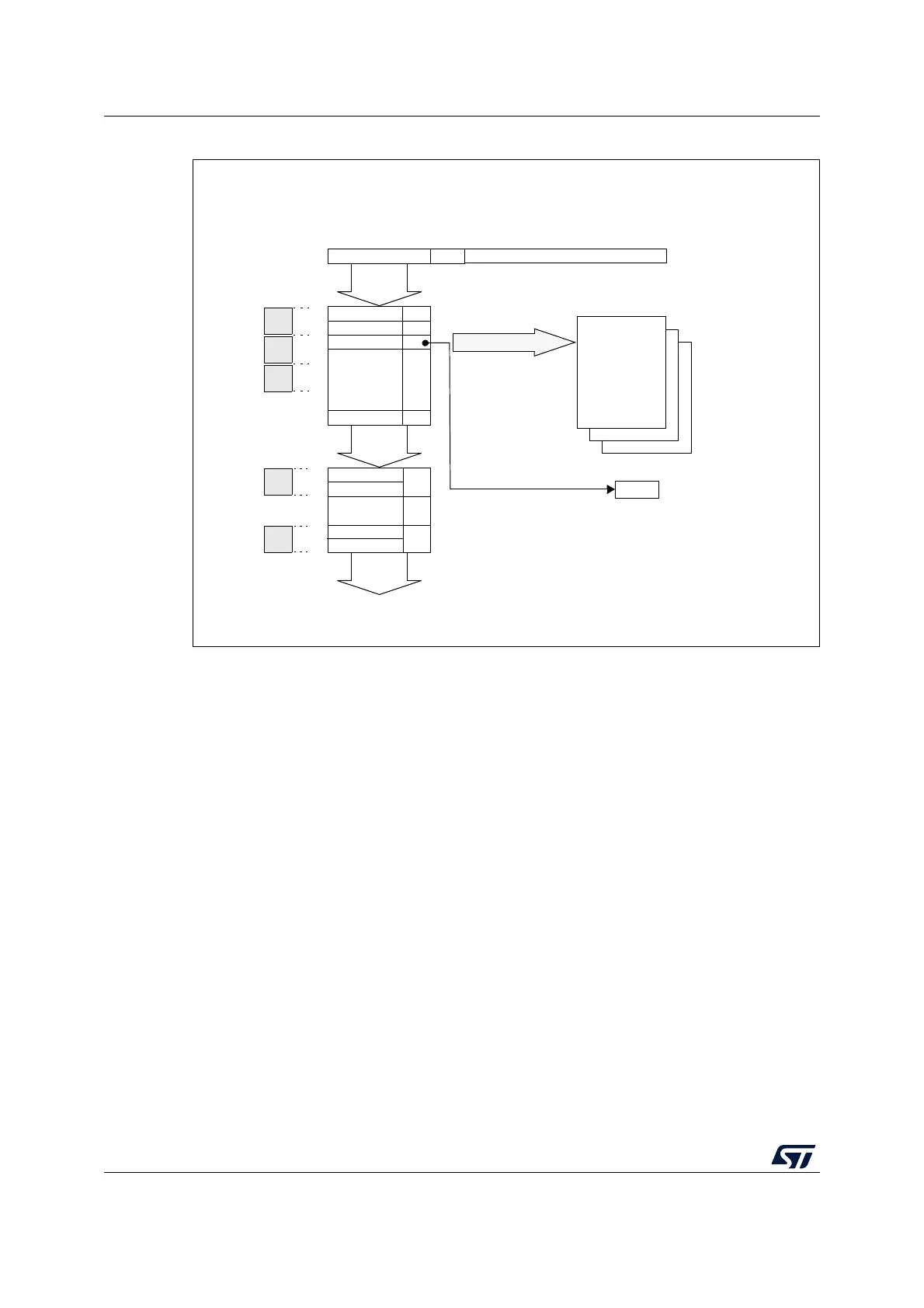

Figure 328. Filtering mechanism - example
The example above shows the filtering principle of the bxCAN. On reception of a message,
the identifier is compared first with the filters configured in identifier list mode. If there is a
match, the message is stored in the associated FIFO and the index of the matching filter is
stored in the Filter Match Index. As shown in the example, the identifier matches with
Identifier #2 thus the message content and FMI 2 is stored in the FIFO.
If there is no match, the incoming identifier is then compared with the filters configured in
mask mode.
If the identifier does not match any of the identifiers configured in the filters, the message is
discarded by hardware without disturbing the software.
28.7.5 Message storage
The interface between the software and the hardware for the CAN messages is
implemented by means of mailboxes. A mailbox contains all information related to a
message; identifier, data, control, status and time stamp information.
Transmit mailbox
The software sets up the message to be transmitted in an empty transmit mailbox. The
status of the transmission is indicated by hardware in the CAN_TSR register.
Identifier List
Message Discarded
Identifier & Mask
Identifier
0
Identifier
1
Identifier
4
Identifier
5
Identifier
2
Mask
Identifier
3
Mask
Identifier
Message Received
Ctrl
Data
Identifier #4 Match
Message
Stored
Receive FIFO
No Match
Found
Filter number stored in the
Filter Match Index field
within the CAN_RDTxR
register
FMI
Filter bank
0
2
3
1
4
Example of 3 filter banks in 32-bit unidentified mode and
Num
the remaining in 32-bit identifier mask mode
MS31000V2
