13.8.3 Conversions without DMA and without overrun detection
It may be useful to let the ADC convert one or more channels without reading the data each
time (if there is an analog watchdog for instance). For that, the DMA must be disabled
(DMA
= 0) and the EOC bit must be set at the end of a sequence only (EOCS = 0). In this
configuration, overrun detection is disabled.
13.9 Temperature sensor
The temperature sensor can be used to measure the ambient temperature (T
A
) of the
device.
Figure 66 shows the block diagram of the temperature sensor.
When not in use, the sensor can be put in power down mode.
Note: The TSVREFE bit must be set to enable the conversion of both internal channels: the
ADC1_IN18 (temperature sensor) and the ADC1_IN17 (VREFINT).
Main features
• Supported temperature range: –40 to 125 °C
• Precision: ±1.5 °C

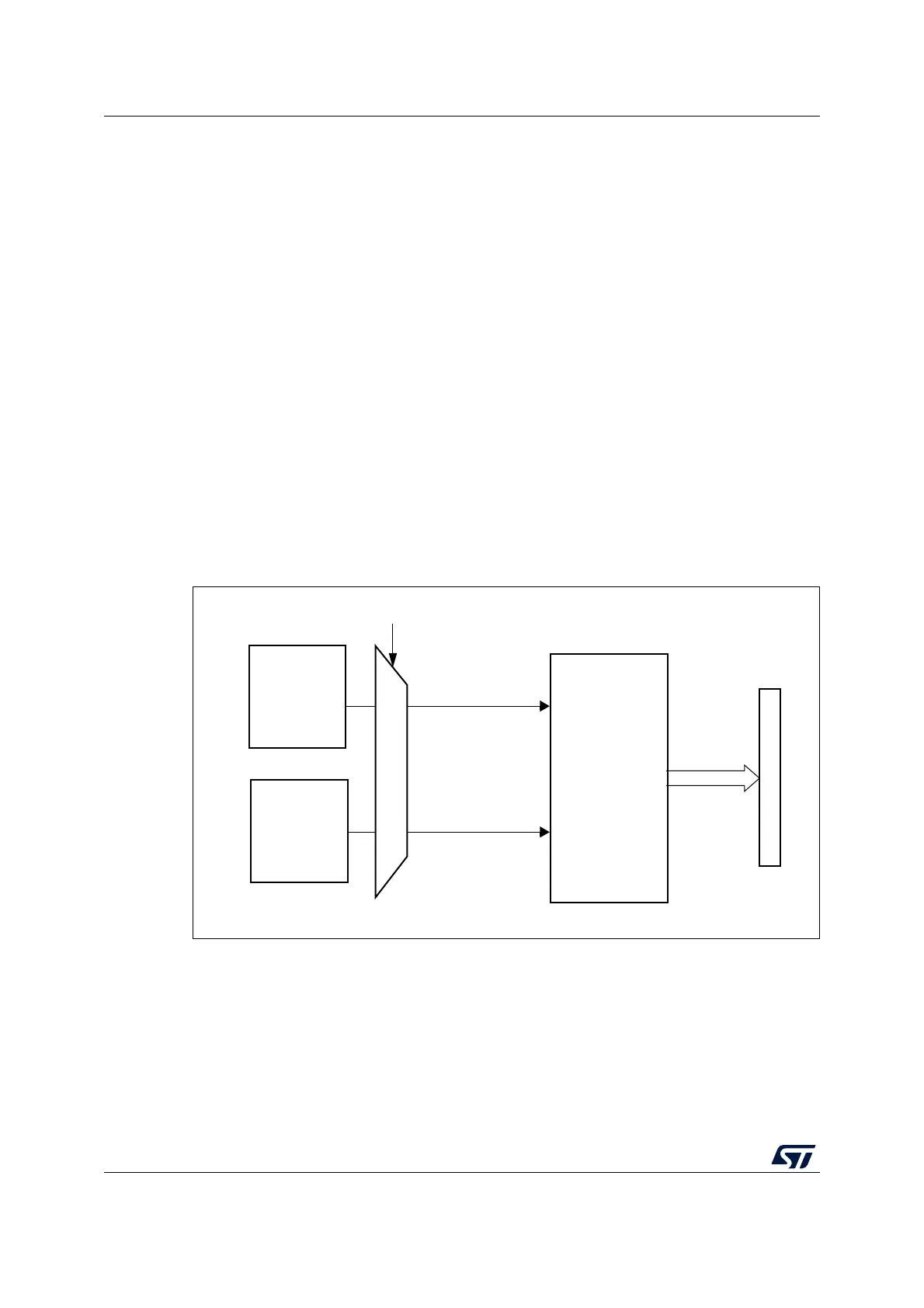

Figure 66. Temperature sensor and V
REFINT
channel block diagram
1. V
SENSE
is input to ADC1_IN18.
MS35936V1
Temperature
sensor
V
SENSE
TSVREFE control bit
ADC1
Address/data bus
V
REFINT
ADC1_IN18
Internal
power block
ADC1_IN17
converted data
