Advanced-control timers (TIM1&TIM8) RM0402

430/1163 RM0402 Rev 6

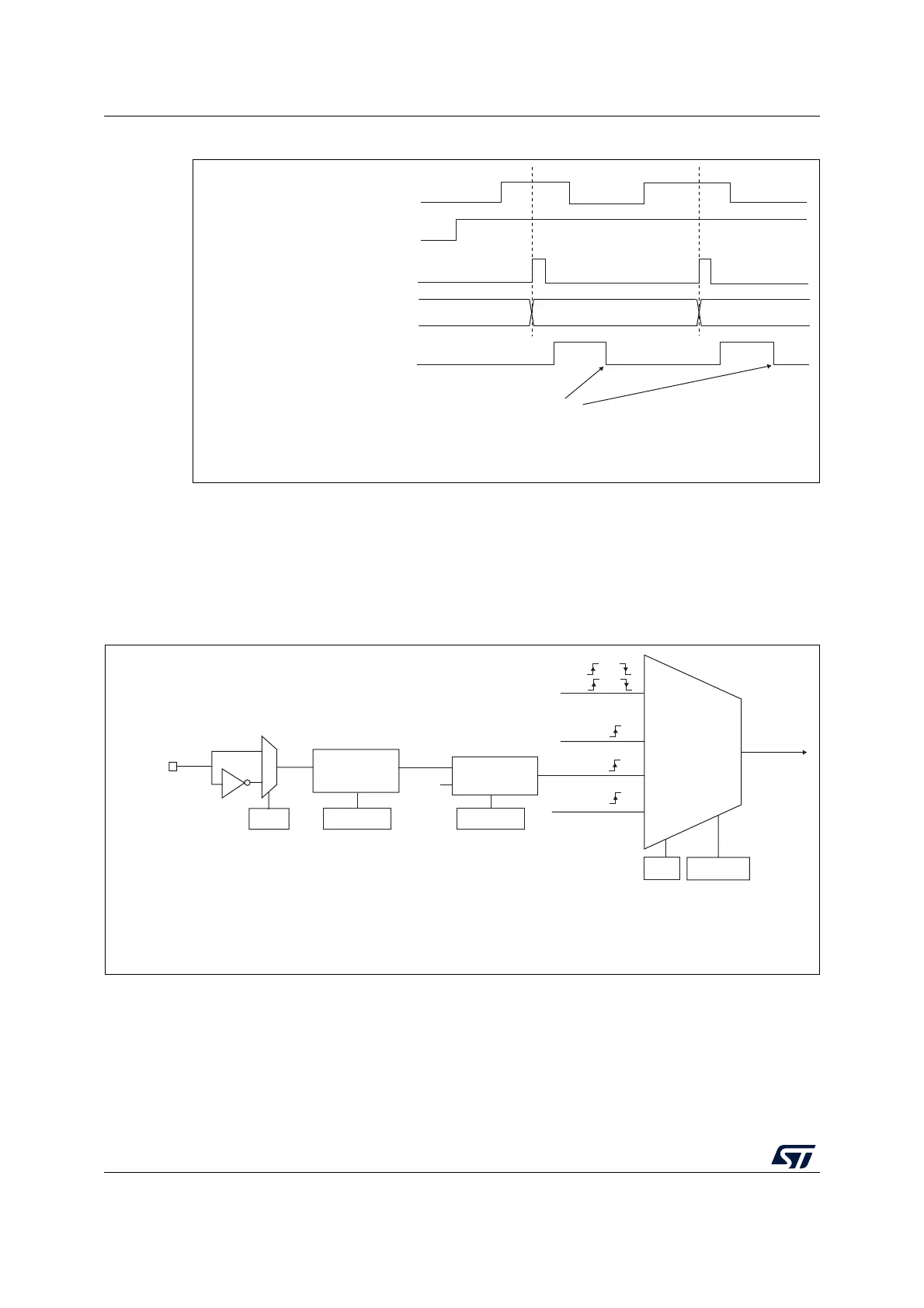

Figure 100. Control circuit in external clock mode 1

External clock source mode 2

This mode is selected by writing ECE=1 in the TIMx_SMCR register.

The counter can count at each rising or falling edge on the external trigger input ETR.

Figure 101 gives an overview of the external trigger input block.

Figure 101. External trigger input block

For example, to configure the upcounter to count each 2 rising edges on ETR, use the

following procedure:

Counter clock = CK_CNT = CK_PSC

Counter register

35 3634

TI2

CNT_EN

TIF

Write TIF=0

MS31087V2

External clock

mode 1

Internal clock

mode

TRGI

CK_INT

CK_PSC

TIMx_SMCR

SMS[2:0]

MS33116V1

(internal clock)

TI1F or

TI2F or

Encoder

mode

External clock

mode 2

ETRF

ECE

TIMx_SMCR

ETP

ETR pin

ETR

Divider

/1, /2, /4, /8

Filter

downcounter

ETRP

TIMx_SMCR

ETPS[1:0]

TIMx_SMCR

ETF[3:0]

DTS
