RM0402 Rev 6 971/1163

RM0402 USB on-the-go full-speed (OTG_FS)

1122

29.4 OTG_FS functional description

29.4.1 OTG_FS block diagram

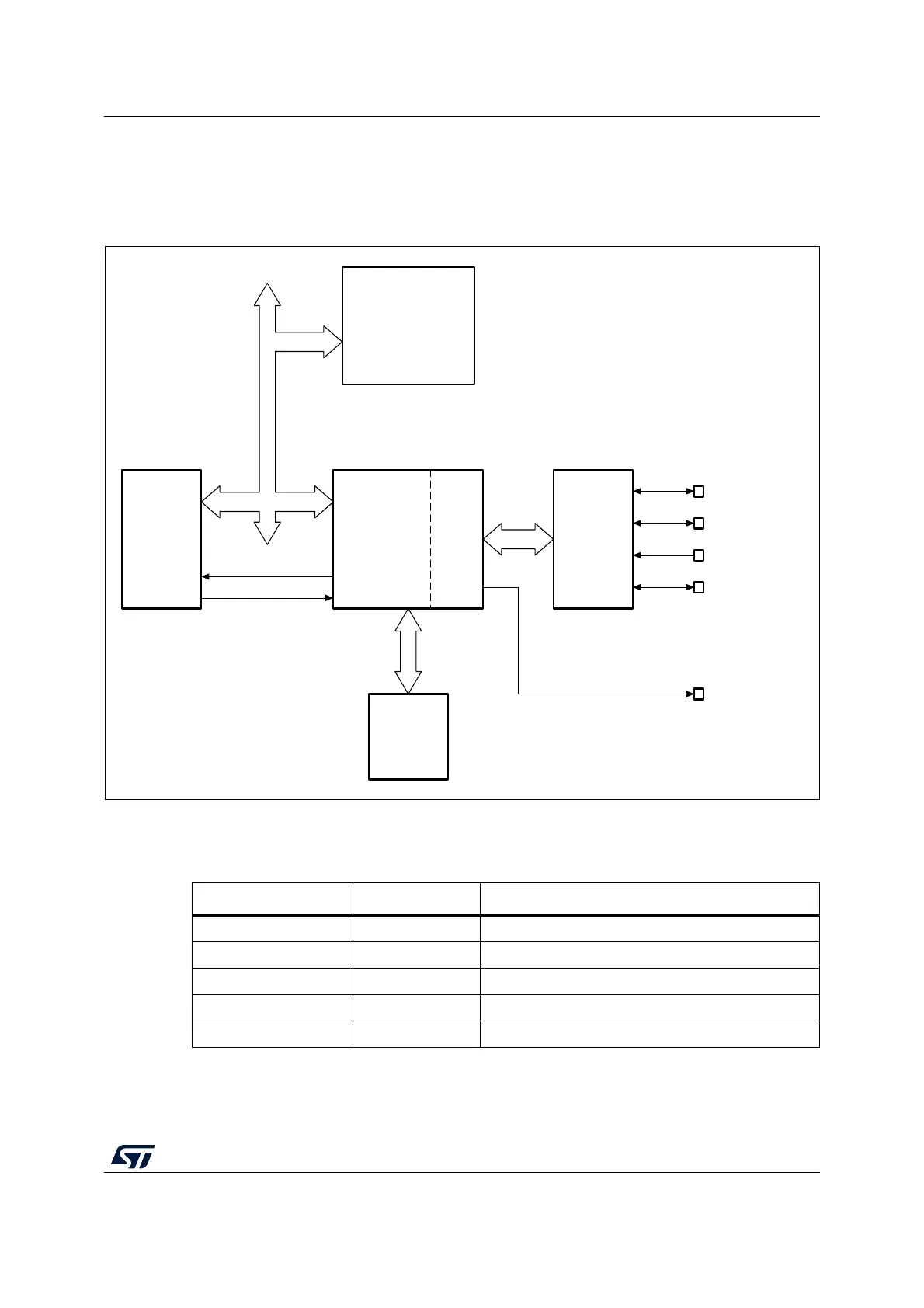

Figure 334. OTG_FS full-speed block diagram

29.4.2 OTG_FS pin and internal signals

MS19928V4

USB2.0

OTG FS

core

System clock domain

USB clock

domain

OTG

PHY

OTG_FS_DP

OTG_FS_DM

OTG_FS_ID

OTG_FS_VBUS

Universal serial bus

Power

and

clock

controller

Cortex

core

UTMIFS

RAM bus

1.25 Kbyte

USB data

FIFOs

USB clock at 48 MHz

USB suspend

OTG_FS_SOF

Table 198. OTG_FS input/output pins

Signal name Signal type Description

OTG_FS_DP Digital input/output USB OTG D+ line

OTG_FS_DM Digital input/output USB OTG D- line

OTG_FS_ID Digital input USB OTG ID

OTG_FS_VBUS Analog input USB OTG VBUS

OTG_FS_SOF Digital output USB OTG Start Of Frame (visibility)
