6/02
2-104
DC1632/2240
7-119
Prelaunch Training/Review
Status Indicator RAPs
7-119 Tray 4 Misfeed
The Feed Out Sensor does not detect paper after feeding from Tray 4.
Initial Actions
ï Check condition and specification of paper in Tray 4.
ï Check the paper path for obstructions.
ï Check for wear and clean the Tray 4 Feeder Roll, Take Away Roll and the Nudger Roll.
Procedure
Enter dC330 [008-103] and press Start. Block and unblock the Tray 4 Feed out Sensor (PL
16.5). The display changes.
YN
Go to OF 99-2 Transmissive Sensor RAP.
Enter dC330 [008-007] and press Start. The Tray 4 Feed/Lift motor energizes (PL 15.7).
YN
Go to OF 99-6 Motor Open RAP.
Enter dC330 [008-029] and press Start. The Take Away Motor 2 energizes (PL 16.15).
YN
Go to OF 99-6 Motor Open RAP.
Check the wires and connectors. If the check is OK, replace the Tray Module PWB (PL 16.15).

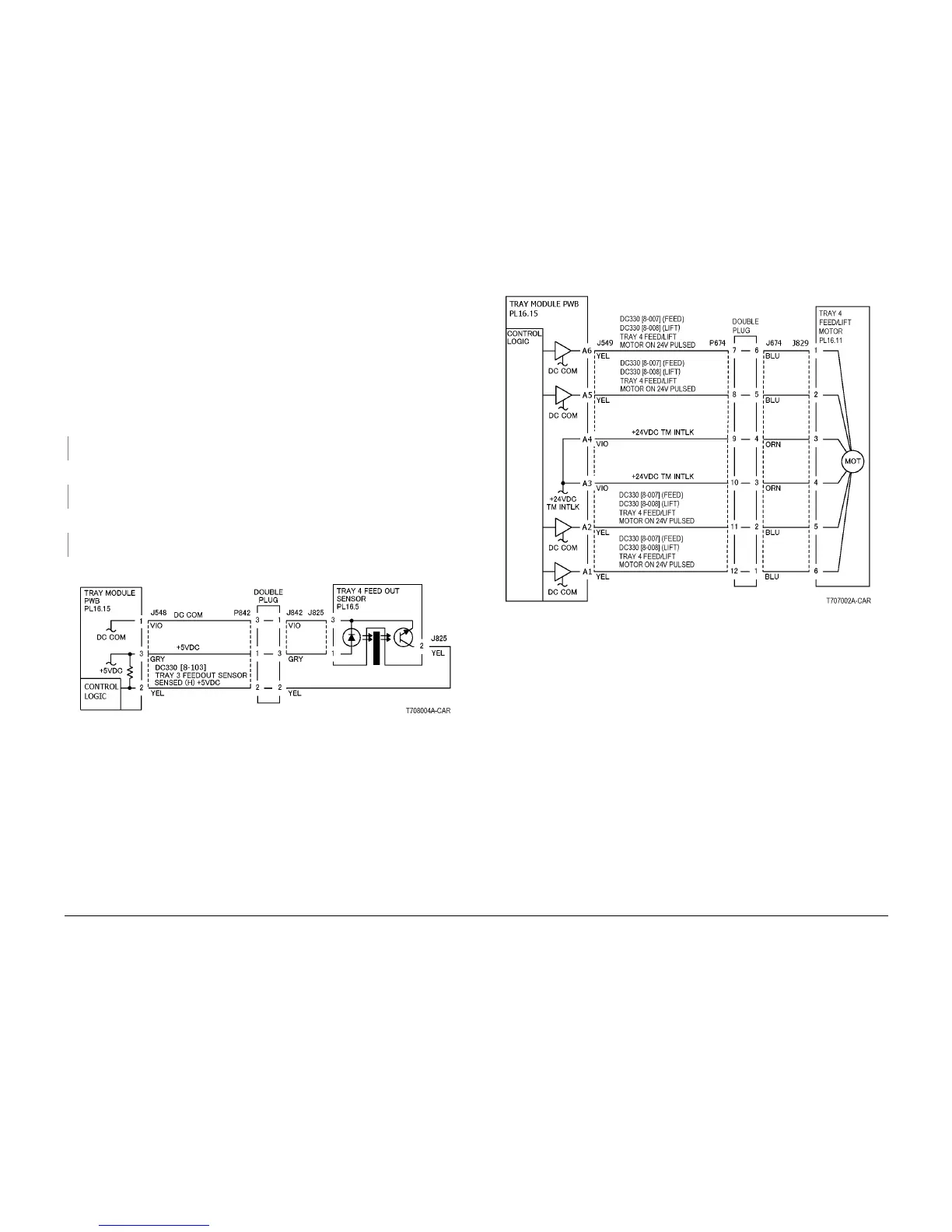

Figure 1 Tray 4 Feedout Sensor CD
Figure 2 Tray 4 Feed/Lift Motor CD
To Next Page
