6/02
2-106
DC1632/2240
7-122
Prelaunch Training/Review
Status Indicator RAPs
7-122 Tray 4 Opened
The Tray 4 Feed Out Sensor detected paper when Tray 4 is pulled out and pushed in during a
print.
Initial Actions
ï Check condition and specification of paper in Tray 4.
ï Check the paper path for obstructions and clean the Tray 4 Feed out Sensor.
ï Check the Tray 4 mechanical operation.
Procedure
Enter dC330 [008-103] and press Start. Block and unblock the Tray 4 Feed out Sensor (PL
16.5). The display changes.
YN
Go to OF 99-2 Transmissive Sensor RAP.
Check the machine Shutdown History Report. If there is a history of this failure, replace the
Tray 4 Feed Out Sensor (PL 16.5).
If the problem continues, replace the Tray Module PWB (PL 16.15).

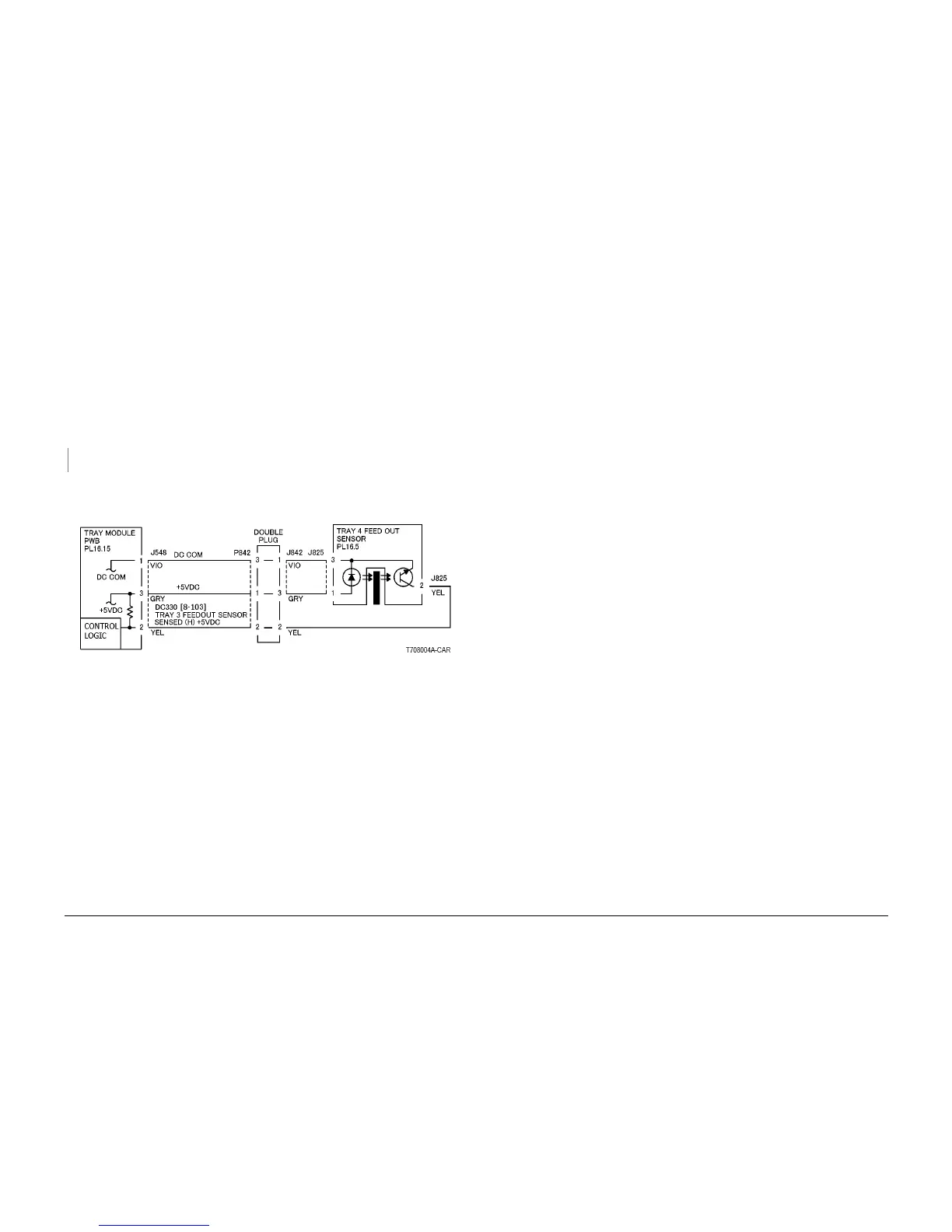

Figure 1 Tray 4 Feedout Sensor CD
To Next Page
