6/02
2-119
DC1632/2240
7-954, 7-959
Status Indicator RAPs
Prelaunch Training/Review
7-954 SMH Size Mismatch (Slow Scan Direction)
The paper in the slow scan direction is shorter than the specified paper size.
Procedure
The correct size paper is loaded in the SMH.
YN
Load the correct size paper.
Replace the Registration Sensor. (PL 2.6).
7-959 Tray 5 Paper Mismatch 1
Other than dedicated stock is detected by the OHP sensor.
Initial Actions
ï Ensure that dedicated stock is used.
ï Check that the transparencies are oriented correctly.
ï Check for obstructions and clean the OHP Sensor.
Procedure
Enter dC330 [008-110] and press Start. Block the OHP Sensor R using plain paper (PL 2.6).
The display changes.
YN
Go to OF 99-1 Reflective Sensor RAP.
Check the wires and connectors. If the check is OK, replace the MCU PWB (PL 13.1).

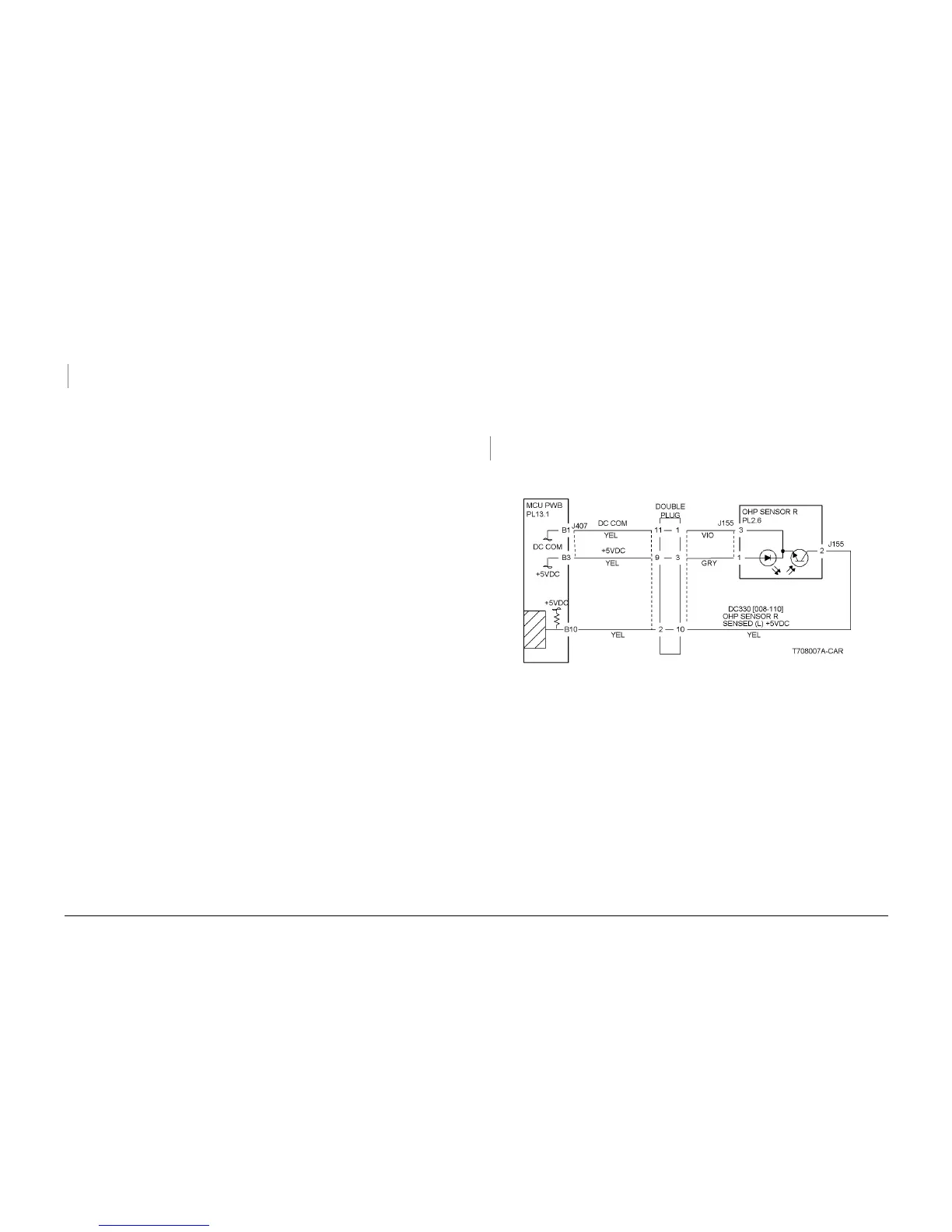

Figure 1 The OHP Sensor R
