Figure 3 The Inverter Reverse Clutch
Figure 4 The Duplex Gate Solenoid
8-181 Registration Sensor On Wait Sensor
The Registration Sensor does not detect paper after the Duplex Wait Sensor was energized.
Initial Actions
ï Check condition and specification of the paper supply.
ï Check for obstructions in the paper feed path.
ï Clean the Take Away Roll and check for ware.
ï Check the drive transmissions for damage or ware.
Procedure
Enter dC330 [008-104] and press Start. Block and unblock the Registration Sensor (PL 2.6).
The display changes state.
YN
Go to OF 99-1 Reflective Sensor RAP.
Enter dC330 [009-105] and press Start. Block and unblock the Duplex Wait Sensor (PL 12.2).
The display changes state.
YN
Go to OF 99-2 Transmissive Sensor RAP.
Enter dC330 [008-112] and press Start. The Duplex Motor energizes (PL 12.2).
YN
Go to the Motor Does Not Energize Failure RAP.
Check the wires and connectors. If the check is OK, replace the Duplex PWB(PL 12.2).

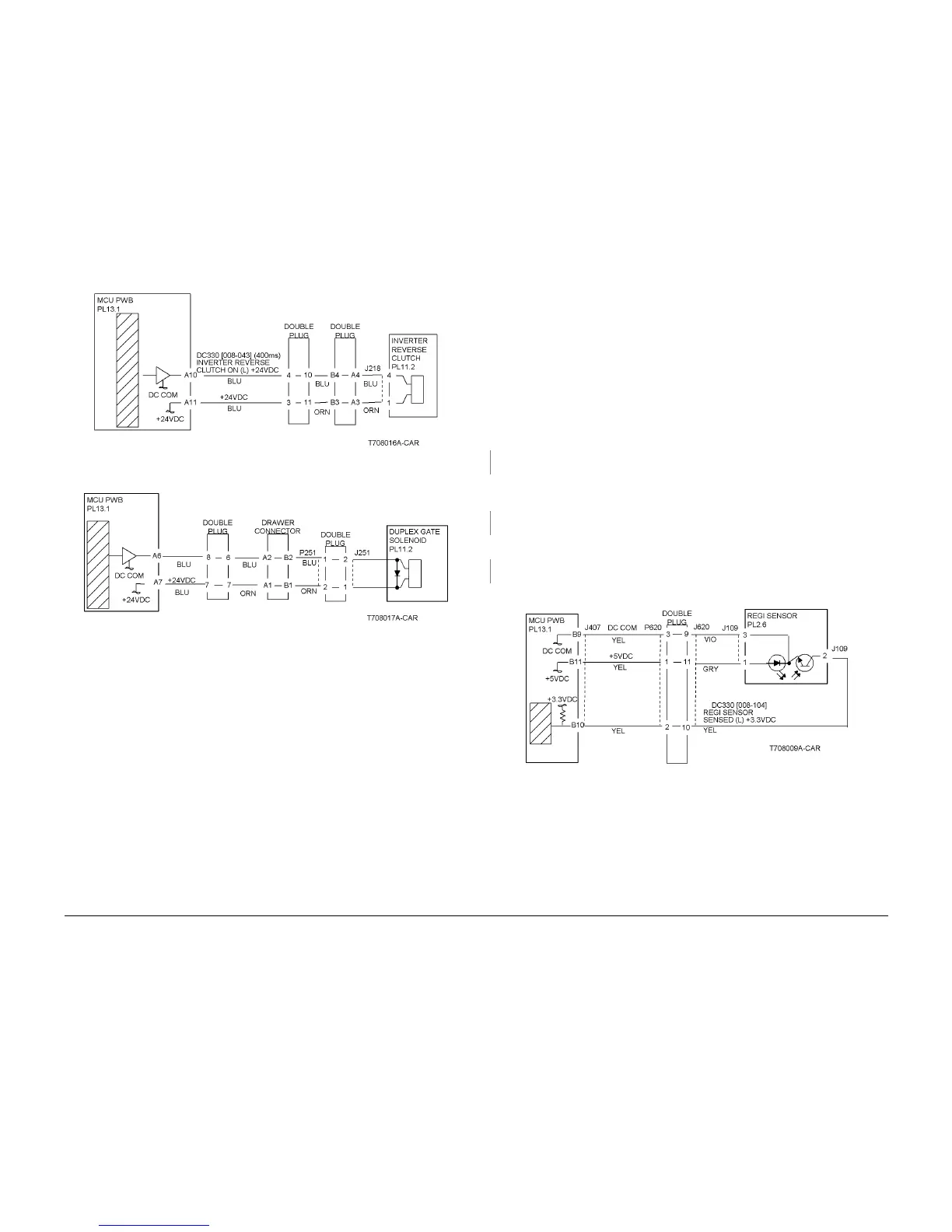

Figure 1 The Registration Sensor
