6/02
2-177
DC1632/2240
10-111
Status Indicator RAPs
Prelaunch Training/Review
10-111 Fuser Exit Switch Off (Face Down)
The Fuser Exit Switch did not de-energize.
Initial Actions
ï Check condition and specification of the paper supply.
ï Check for obstructions in the paper feed path.
ï Clean the Fuser Exit Roll and check for wear.
ï Check the drive transmissions for damage or wear.
Procedure
Check the Fuser Stripper Fingers and Fuser Roll for dirt build up, wear or damage. The
check is OK.
YN
Clean or replace the Fuser Assembly (PL 7.1).
Enter dC330 [010-101] and press Start. Actuate and de-actuate the Fuser Exit Switch (PL
2.8). The display changes state.
YN
Go to OF 99-3 Switch RAP.
Enter dC330 [008-045] and press Start. The Exit Gate Solenoid energizes (PL 11.2).
YN
Go to OF 99-4 Solenoid/Clutch RAP.
The switch and solenoid are operating correctly. If the problem continues, check the wires and
connectors. If the check is OK, replace the MCU PWB (PL 13.1).

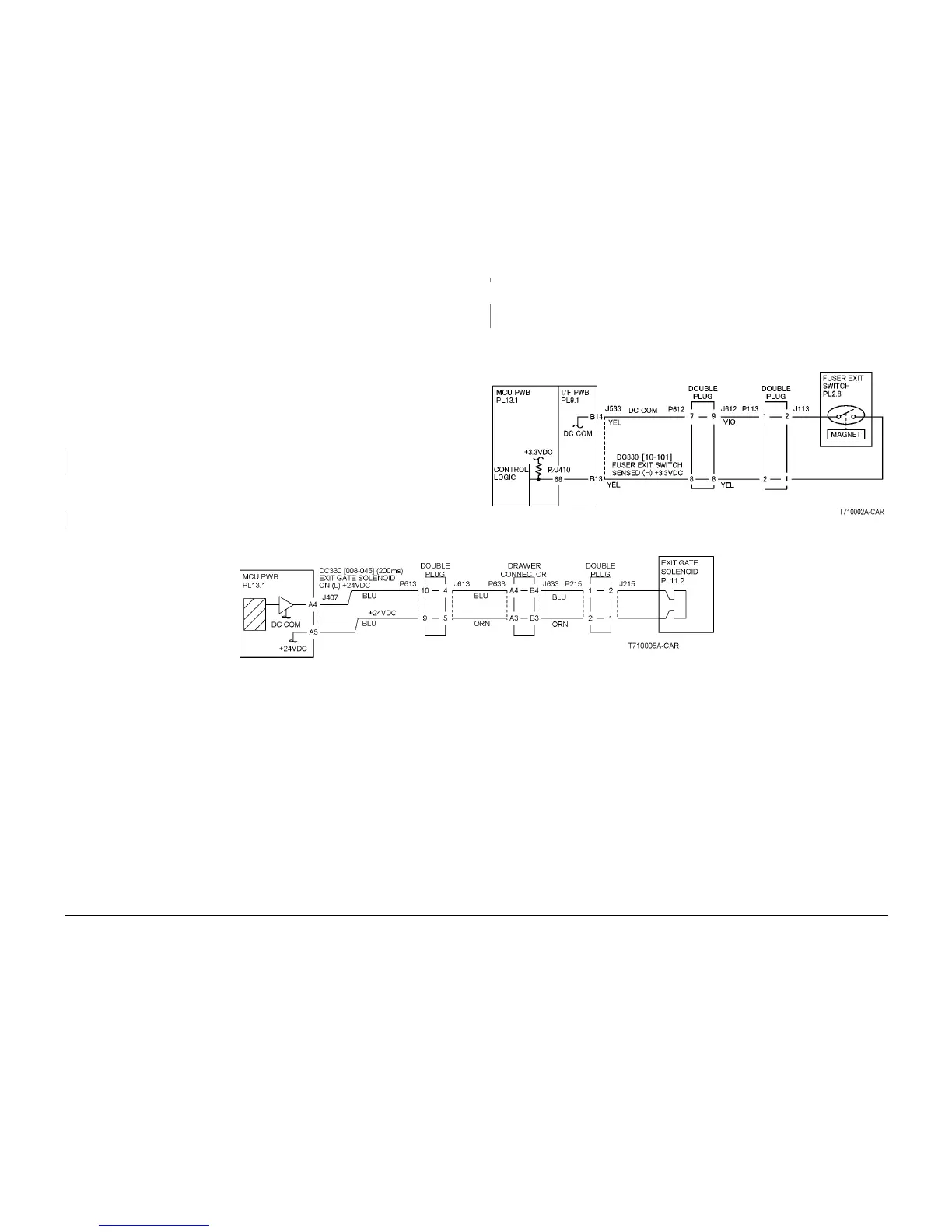

Figure 1 Fuser Exit Switch CD
Figure 2 Exit Gate Solenoid CD
A
A
To Next Page
