Xerox DocuColor 1632 Service Manual

6/02
2-207
DC1632/2240
Status Indicator RAPs
Prelaunch Training/Review
12-252 Front Tamper
ï With the Front Tamper Home Sensor off the Front Tamper Home Sensor did not turn on
within 800ms after move to the Front Tamper Home position has begun.
ï With the Front Tamper Home Sensor on The Front Tamper Sensor did not turn off when
the Front Tamper Home Sensor is deactuating.
Procedure
Enter dC330 [012-091] (front) or [12-094] (rear) and press Start. The Front Tamper Guide
moves.
YN
The Front Tamper Motor energized.
YN
+24 VDC is measured between J848-B7 or B9 or B10 or B12 on the Finisher
PWB and Finisher PWB Chassis (-).
YN
+24 VDC is measured between J848-B8 or B11 on the Finisher PWB p/j (+)
and Finisher PWB Chassis (-).
YN
Replace the Finisher PWB (PL 17.13).
Check the wire between the Finisher PWB p/j and the Front Tamper Motor p/j
for a short circuit, open circuit, or poor contact.
If the wires and connections are good, replace the Front Tamper Motor (PL
17.10).
Replace the Finisher PWB (PL 17.13).
Check the tamper mechanism for load or drive transmission failure (gear wear or break-
age.).
Enter dC330 [012-216] and press Start.
Move the Front Tamper manually and turn the Front Tamper Home Sensor on/off. The display
changes.
YN
Check the Front Tamper Home Sensor using the Generic Transmissive Sensor RAP.
Replace the Finisher PWB (PL 17.13).

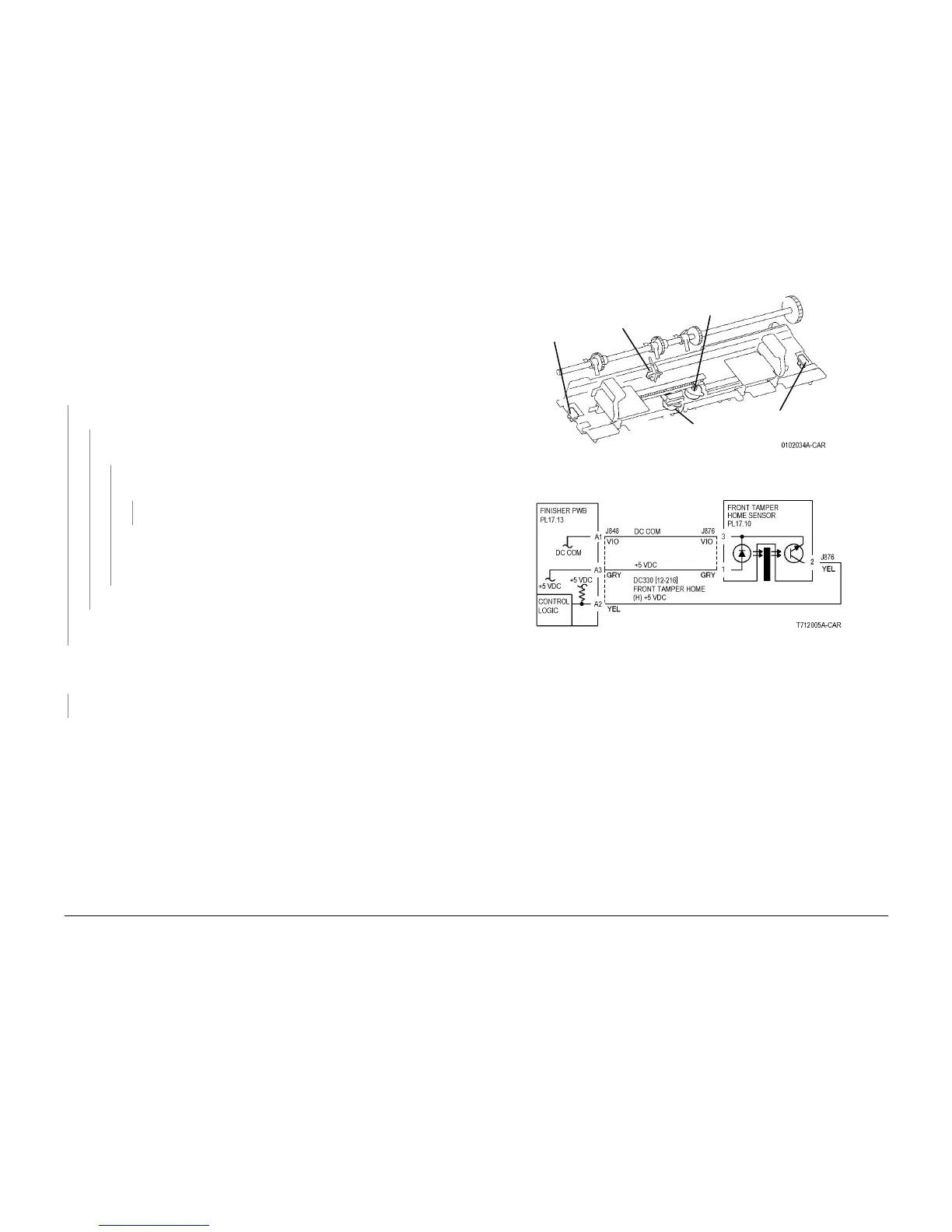

Figure 1 Component Location
Figure 2 Front Tamper Home Sensor CD
Rear Tamper
Home Sensor
Front
Tamper
Home
Sensor
Front Tamper Motor
Connection
Rear Tamper Motor
Connection
Compiler
Paper
Sensor
