6/02
2-219
DC1632/2240
12-260
Status Indicator RAPs
Prelaunch Training/Review
12-260 Eject Clamp Home Sensor On
The Eject Clamp Home Sensor does not turn on after the Eject Clamp up started.
Procedure
Remove the Eject Clamp Home Sensor bracket. (Leave the Connector plugged in)
Enter dC330 [012-210] and press Start. Actuate the Eject Clamp Home Sensor with a sheet of
paper. The display changes.
YN
Check the Eject Clamp Home Sensor using the Generic Transmissive Sensor RAP.
Restore the Sensor to the original state.
Enter dC330 [012-034] and press Start. Eject Clamp moves up.
YN
Eject Motor energized.
YN
+24 VDC is measured between the Finisher PWB p/j (+) and Finisher PWB
Chassis (-).
YN
Replace the Finisher PWB (PL 17.13).
Check the wire between the Finisher PWB p/j and the Eject Motor p/j for an open cir-
cuit or poor contact.
If no problems are found, replace the Eject Motor (PL 17.8).
If the problem continues, replace the Finisher PWB (PL 17.13).
Remove the other mechanical causes of the Eject Clamp not operating, such as wear or
damage of the Gear, Belt, and Eject Cam.
Replace the Finisher PWB (PL 17.13).

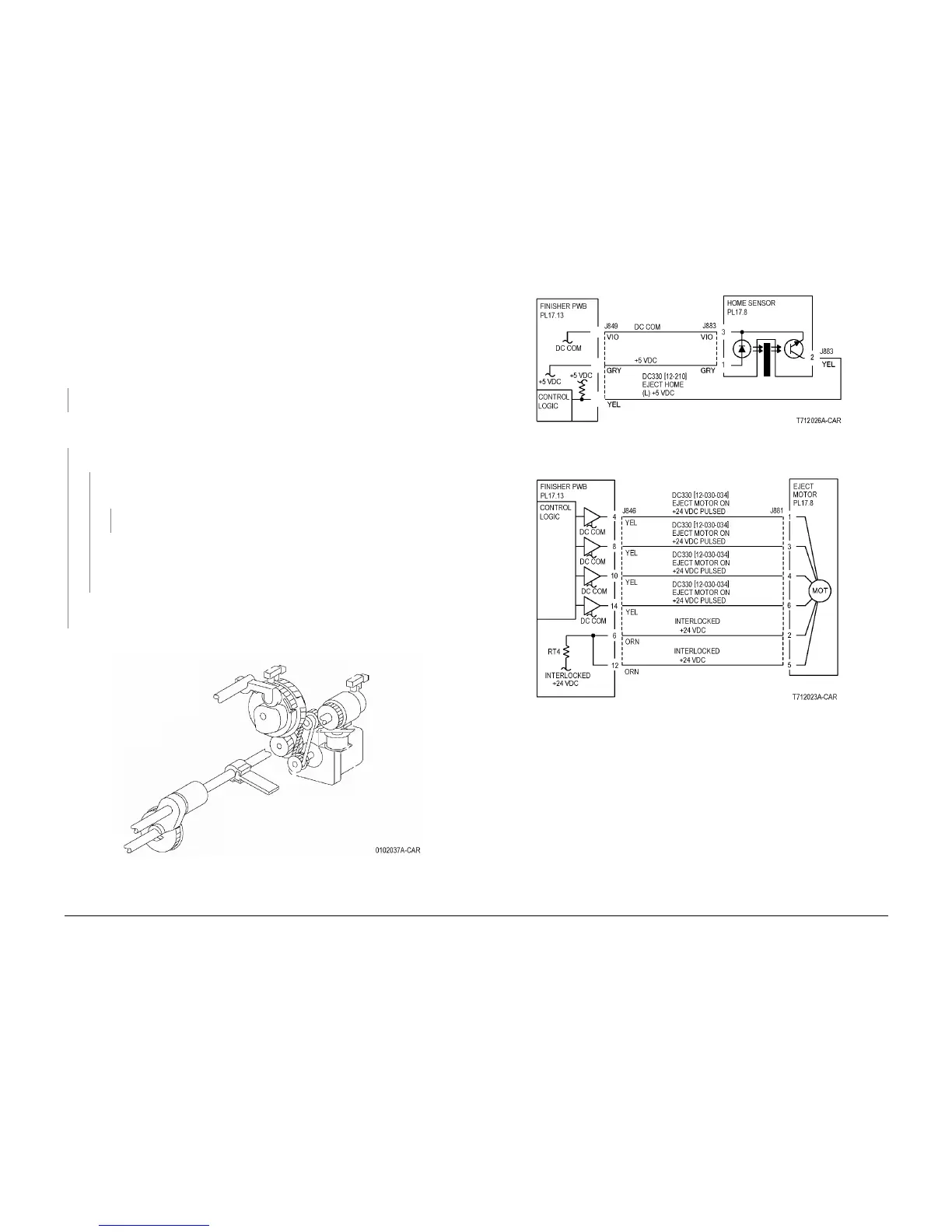

Figure 1 Component Location
Figure 2 Eject Clamp Home Sensor
Figure 3 Eject Motor CD
