Xerox DocuColor 1632 Service Manual

6/02
2-225
DC1632/2240
12-281
Status Indicator RAPs
Prelaunch Training/Review
12-281 Set Clamp
The Set Clamp Home Sensor does not turn on within 200ms after the Set Clamp has started
operation.
Procedure
Enter dC330 [012-211] and press Start. Rotate the Actuator and turn the Set Clamp Home
Sensor on/off. The display changes.
YN
Check the Set Clamp Home Sensor using the Generic Transmissive Sensor RAP.
Enter dC330 [012-040] and press Start. The Set Clamp Solenoid energized.
YN
Check the Set Clamp Solenoid using the Generic Solenoid/Clutch Open RAP.
Enter [12-034] and press Start to energize Eject Clamp up or [12-032] to lower the Eject
Clamp.
Enter dC330 [012-041] and press Start. Has the Set Clamp rotated.
YN
Enter dC330 [012-030] and press Start. The Eject Motor energized.
YN
+24 VDC is measured between the Finisher PWB p/j (+) and Finisher PWB
Chassis (-).
YN
Replace the Finisher PWB (PL 17.13).
Check the wire between the Finisher PWB p/j and the Eject Motor p/j for an open cir-
cuit or poor contact.
If no problems are found, replace the Eject Motor (PL 17.8).
If the problem continues, replace the Finisher PWB (PL 17.13).
Check the following:
ï Eject Roll for wear and a drive failure (PL 17.8).
ï Eject Shaft for wear and a drive failure (PL 17.8).
ï Each Driver Gear for wear, a drive failure, and breakage (PL 17.8).
ï Belt for disengagement, breakage, and improper tension (PL 17.8).
Replace the Finisher PWB (PL 17.13).

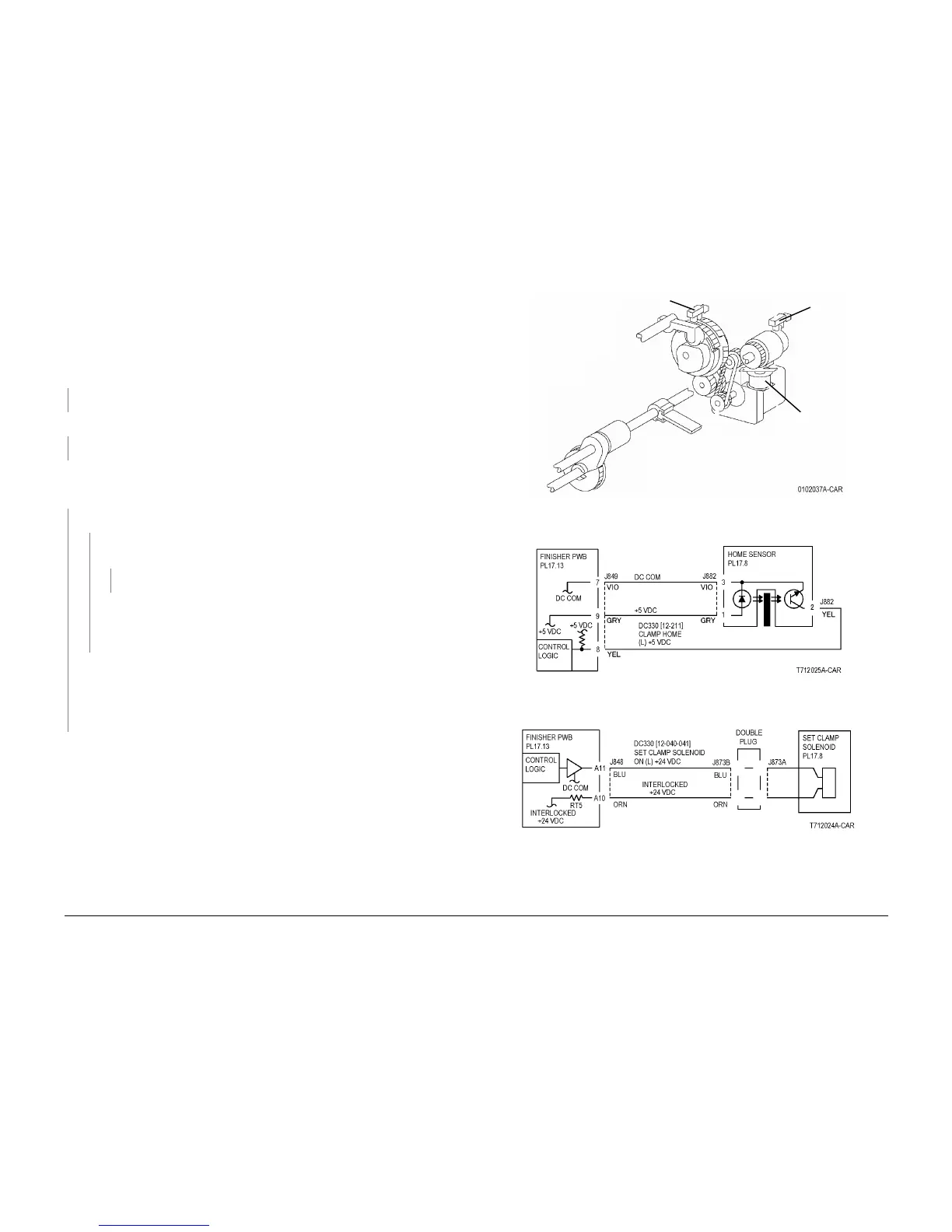

Figure 1 Component Location
Figure 2 Set Clamp Home Sensor
Figure 3 Set Clamp Solenoid
Eject Clamp Home Sensor
Set
Clamp
Home
Sensor
Set
Clamp
Solenoid
