6/02
2-229
DC1632/2240
12-303
Status Indicator RAPs
Prelaunch Training/Review
12-303 H Transport Interlock Open
The H Transport Interlock Sensor detected open.
Procedure
Block the H Transport Interlock Sensor with a sheet of paper. Has the display of 012-303
been cleared.
YN
+5 VDC is measured between the Finisher PWB p/j (+) and Finisher PWB Chassis (-
).
YN
Replace the Finisher PWB (PL 17.13).
+5 VDC is measured between the H Transport Interlock Sensor p/j (+) and Finisher
PWB Chassis (-).
YN
Check the wire between the H Transport Interlock Sensor p/j and the Finisher PWB
p/j for an open circuit or poor contact.
+5 VDC is measured between the H Transport Interlock Sensor p/j (+) and 3 (-).
YN
Check the wire between the Finisher PWB p/j and the H Transport Interlock Sensor
p/j and between the Finisher PWB p/j and H Transport Interlock Sensor p/j for an
open circuit or poor contact.
If no problems are found, replace the Finisher PWB (PL 17.13).
Replace the H Transport Interlock Sensor (PL 17.4).
Mismatching between the H Transport Cover and the H Transport Interlock Sensor.
Check the H Transport Cover for improper installation, the Actuator for breakage and bending,
and the Magnet for improper mounting.

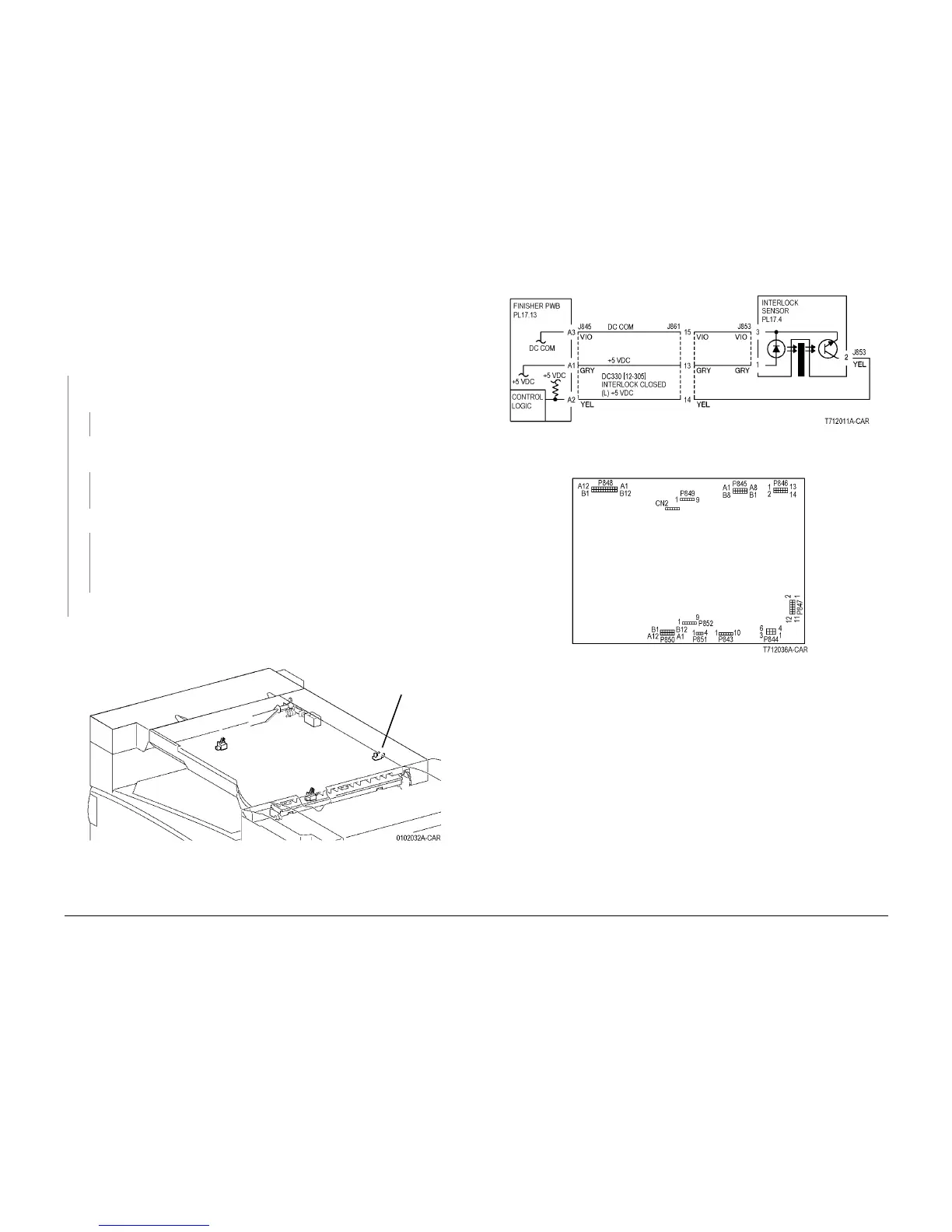

Figure 1 Component Location
Figure 2 H Transport Interlock Sensor CD
Figure 3 Finisher PWB
Interlock
Sensor
To Next Page
