6/02
4-10
DC1632/2240
REP 1.12
Prelaunch Training/Review
Repairs and Adjustments
NOTE: 5 mm tool may be required.
5. Remove ESS PWB (Figure 1).

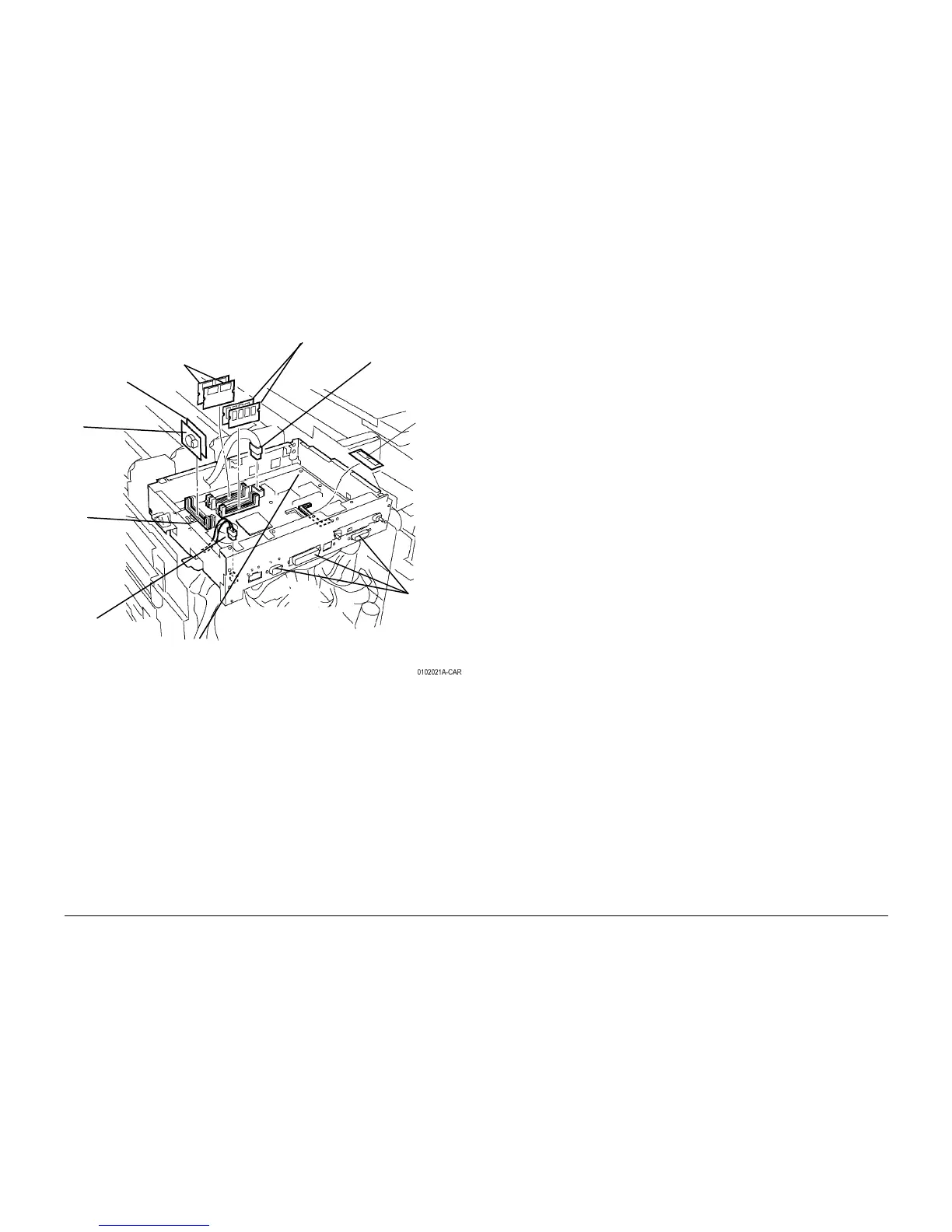

Figure 1 Removing ESS PWB
2
Remove
ESS
NVM
3
Remove
Postscript
Font ROM
4
Remove ESS
Firmware
EPROMS
5
Remove
RAM
1
Remove
MAC
ROM
6
Disconnect
P/J
9
Disconnect
Fan P/J
10
Remove Screws (9) and
remove ESS PWB
8
Remove
jacks from
plate
7
Remove
RAM
