6/02
4-39
DC1632/2240
REP 5.19
Repairs and Adjustments
Prelaunch Training/Review

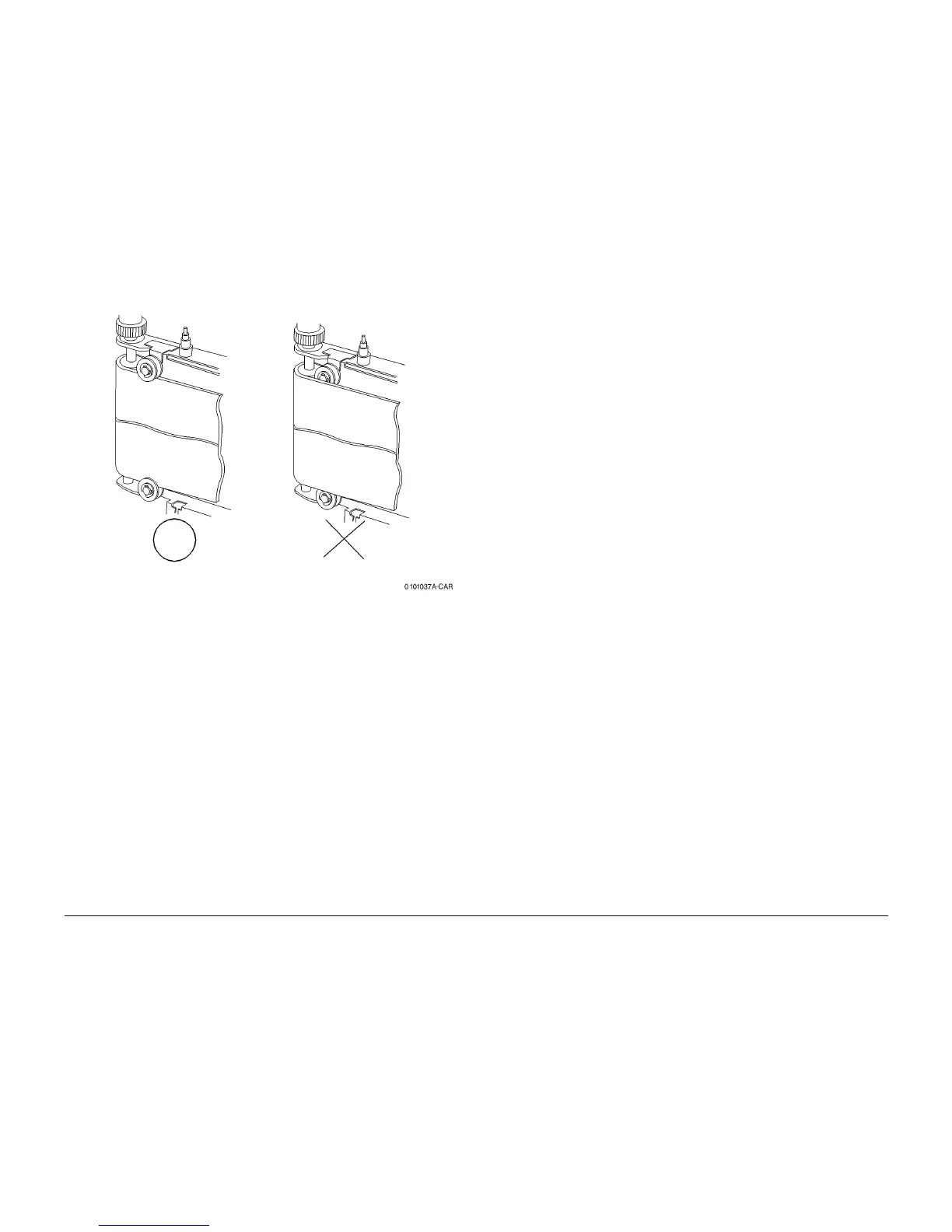

NOTE: Make sure that both sides of Platen Belt are correctly set in pulley (Figure 4).
Figure 3 Install Platen Belt
1. Connect power cord and switch on power.
2. Enter DC330 [5-055]. Press START button and press the Stop button in 15 seconds.
Check the belt position. If the belt has moved to either side,
3. Rotate Platen Belt for 15 seconds. Press STOP button. Check the Belt position. If the belt
moved to either side, check the installation of the Shaft Supports.
CORRECT
INCORRECT
To Next Page
