Xerox DocuColor 1632 Service Manual

6/02
4-86
DC1632/2240
REP 9.22
Prelaunch Training/Review
Repairs and Adjustments
8. Place Stand Plate below and stand IBT Belt Assembly.
9. Relax tension of Belt on both sides (Figure 6)
a. Push up Bracket.
b. Push up Lever and hang Pin on Hole.

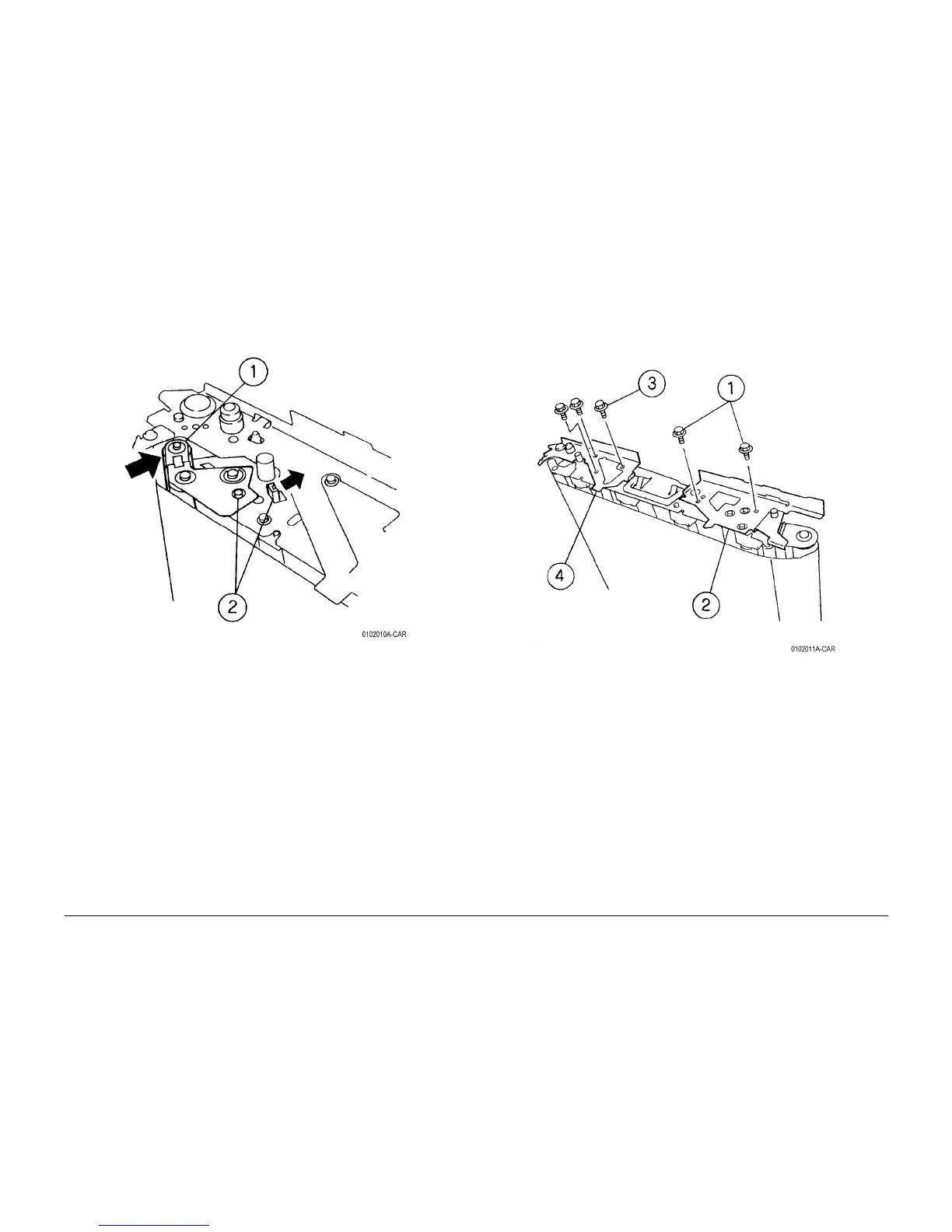

Figure 6 Relaxing Belt Tension
10. Remove Bracket (Figure 7)
a. Remove Screw (2).
b. Remove Bracket.
c. Remove Screw (3).
d. Remove Bracket.
Figure 7 Removing Bracket
