Xerox DocuColor 1632 Service Manual

6/02
4-92
DC1632/2240
REP 9.26
Prelaunch Training/Review
Repairs and Adjustments
Replacement
NOTE: Remove ATC Sensor Setup Data Tag from new sensor. On tag, highlight K, C, M, or Y
as required for color of developer housing. Raise Xerographic Release Lever and install Tag in
position shown (Figure 3).

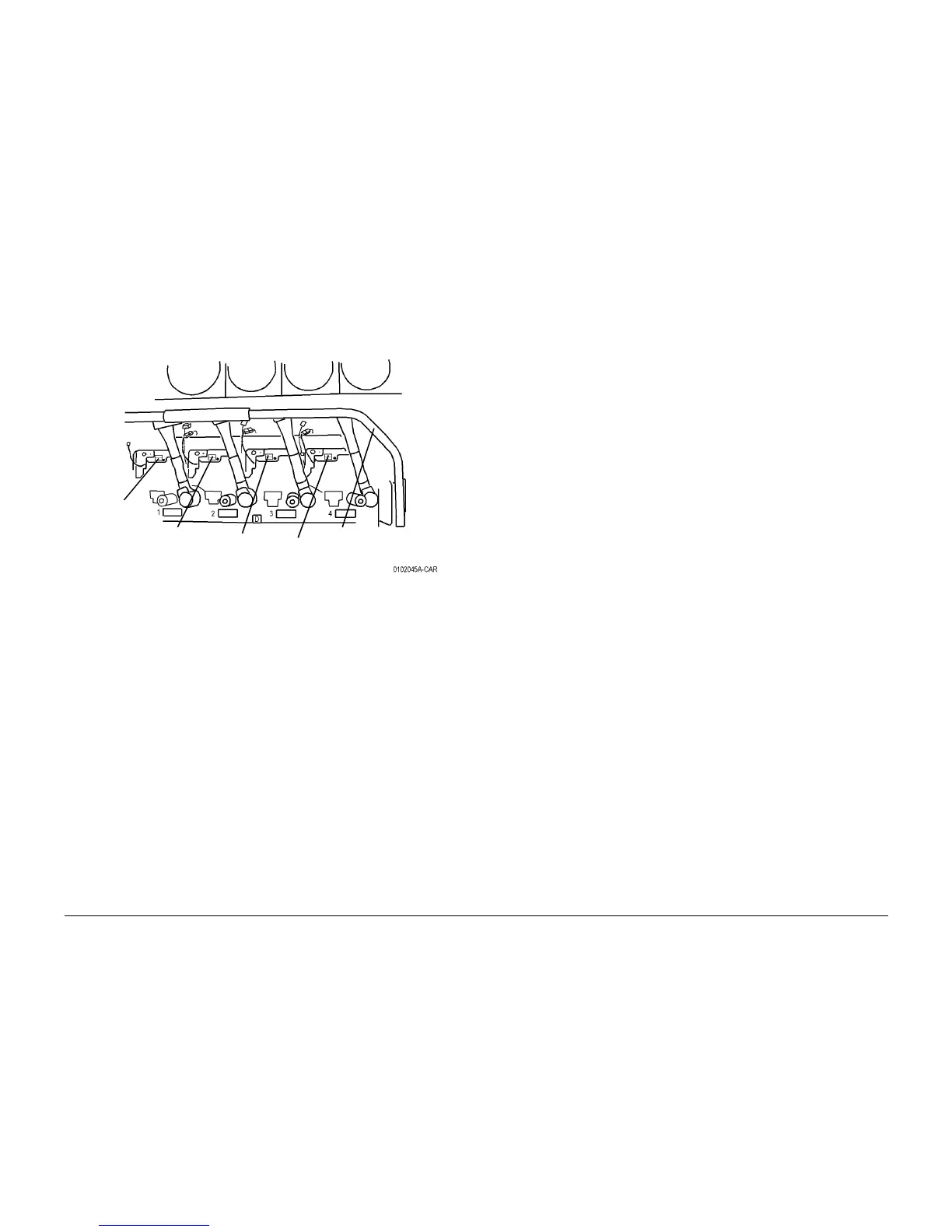

Figure 3 Installing ATC Sensor Setup Data Tag
NOTE: Perform dC921 ATC Sensor Setup (ADJ 9.2).
1
Raise Xerographic
Release Lever
2
Position Tag in correct location
Tag with K
highlighted
Tag with C
highlighted
Tag with M
highlighted
Tag with Y
highlighted
