Xerox DocuColor 1632

6/02
4-124
DC1632/2240
REP 12.12
Prelaunch Training/Review
Repairs and Adjustments

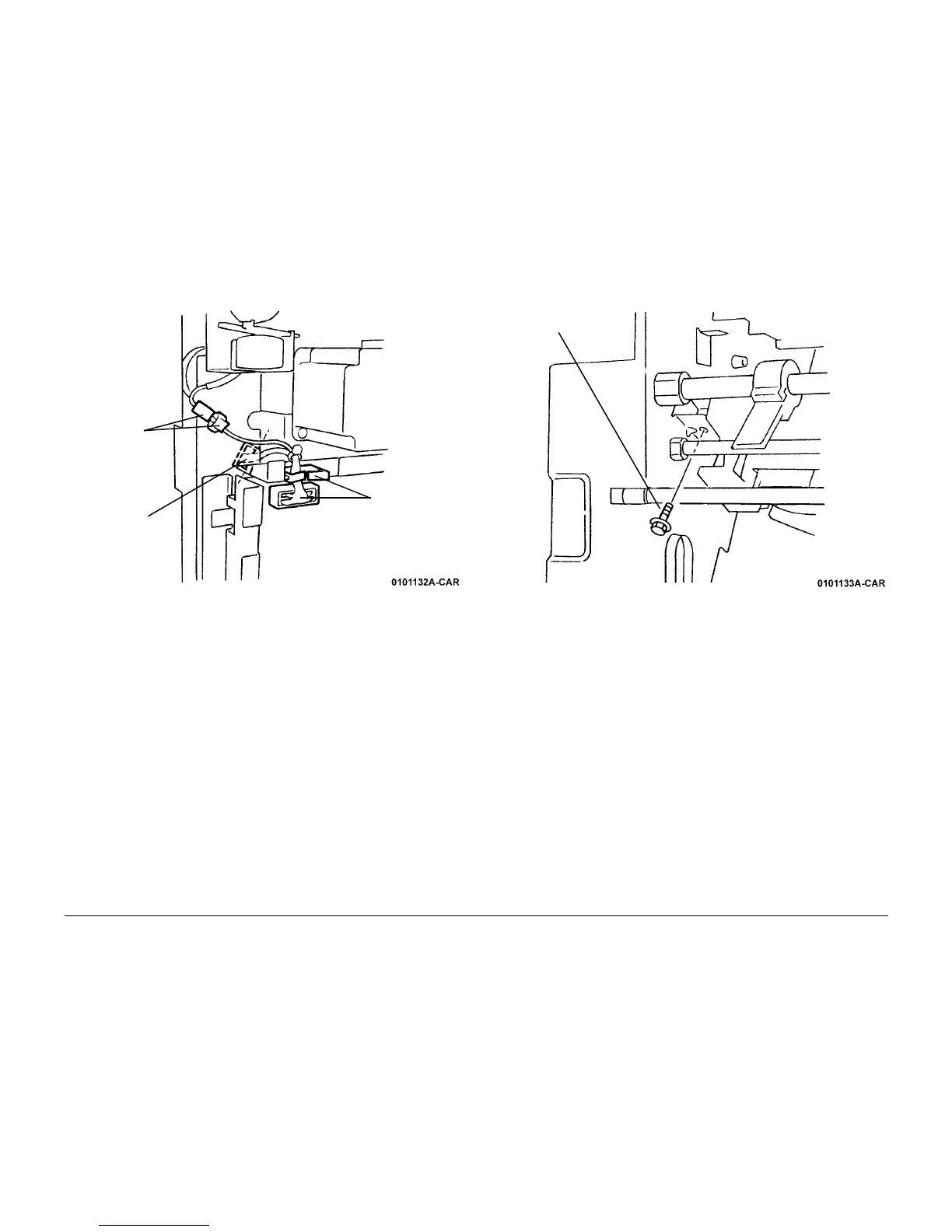

6. Release Compiler Tray Harness (Figure 5).
Figure 5 Releasing Compiler Tray Harness
7. Remove the Screw on the Inboard side (Figure 6).
Figure 6 Removing Screw on Inboard Side
1
Disconnect and
remove form
Guide
2
Disconnect from
Finisher PWB and
remove from Guide
3
Move harnesses
back through
frame
Screw
